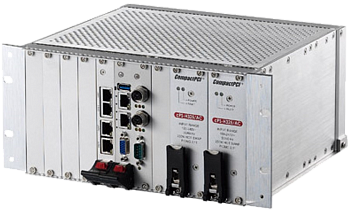

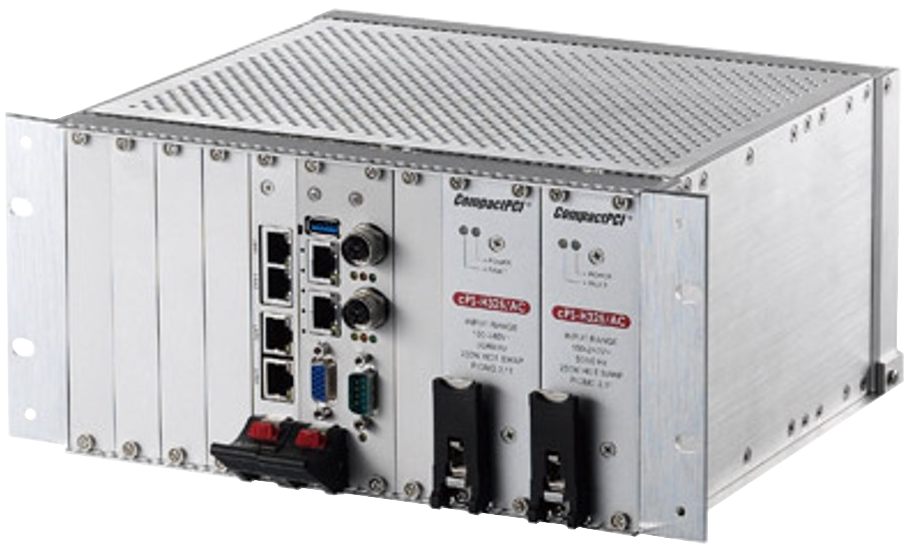

cPCIS-3048
3U CompactPCI Enclosure with 6-slot Backplane and Redundant Power Modules
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- 3U CompactPCI backplane with 1x system and 5x peripheral slots
- Suitable for rackmount applications
- 3U 48HP fanless enclosure
- Optional redundant CompactPCI power modules
3U CompactPCI Enclosure with 6-slot Backplane and Redundant Power Modules.
| Technical specifications | |
| Segment | 1 |
| System | 1 |
| Peripheral | 5 |
| Power Supply |
1x or 2x PICMG 2.11 47-pin 3U CompactPCI AC or DC power module(s), dependent on subsystem configuration Max. Power: 250 W or 500 W |
| CompactPCI Standard | 2.0 R3.0, 2.1 R2.0 |
| Form Factor | 3U 48HP CompactPCI |
| Enclosure | 3U fanless rackmount enclosure |
| Backplane |
6-slot 32-bit 3U backplane. Other backplanes available on request Dimensions: 259.72 x 132.2 x 243.5 mm (W x H x D) |
| Model | Description |
| cPCIS‑3048 | 1x System, 5x Peripheral, 1x PSU QTY, PSU MAX (250 W), PICMG(2.0/2.1/2.11) |
| cPCIS‑3048/DP | 1x System, 5x Peripheral, 2x PSU QTY, PSU MAX (250 W), PICMG(2.0/2.1/2.11) |
