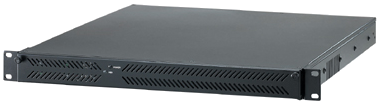

1U Rackmount Industrial Chassis supports 3-slot Backplane
  • Details
  • Specification
  • Order information
  • 1U height, 17.7 inch (450 mm) short depth
  • One slim FDD & one slim-type optical drive bay
  • One rear PCI expansion slot, integrated 300 W power supply
  • Supports PICMG 1.0 backplane (RK-110S) and PICMG 1.3 backplane (RK-110SE)

Adlink’s rackmount and wallmount industrial chassis are aligned with integrated subsystem design, service and performance, is optimized for combined motion/vision/IO applications.

Technical specifications
Drive Bays One 5.25” bay for slim-type optical drive and 3.5” HDD
One 3.5” bay for slim-type FDD
Construction Heavy-duty steel
Color Black
Cooling Fans Three 4 cm ball bearing fans, 7.0 CFM each, two front and one rear
Front Panel Easy-to-customize front door
LEDs: HDD activity, system power
System reset switch, ATX power switch
Two USB 1.1/2.0 connectors, PS/2 keyboard connector
Rear Panel Two I/O cutouts available
Carton Size 23.4 in x 6 in x 22.8 in (594 mm x 152 mm x 578 mm)
Dimensions 19 in x 1.75 in x 17.7 in (483 mm x 44 mm x 450 mm) (W x H x D)
Weight Net 12 kg (26.4 lb)
Model Description
RK‑110S‑B 1U rackmount industrial chassis supports HPCI-D3S2
RK‑110SE‑B 1U rackmount industrial chassis supports EBP-D3E1 & EBP-D3S1
