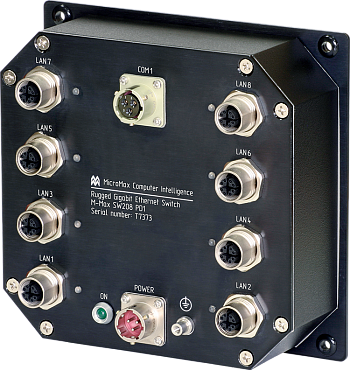

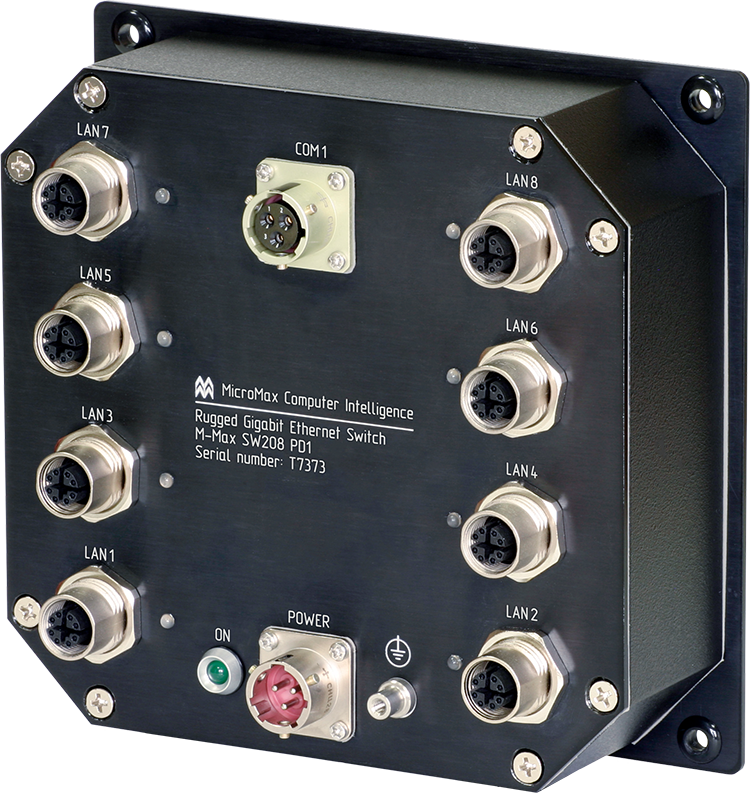

M-Max SW208 PD1

Rugged Gigabit Ethernet Switch in a Compact Aluminum Enclosure
  • Details
  • Specification
  • 8x ports of 10/100/1000 Mbps, 1x RS-232 port
  • Shock handling up to 10g, vibration up to 2.5g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +65 °C

The M-Max® SW208 PD1 is a ruggedized 8-Port Gigabit Ethernet Layer 2+ Managed Switch providing reliable operation in tough environments which include transportation (ground, rail, air and marine), agriculture, mining and processing.

It features 1x RS-232 port for configuration, and is tested and guaranteed to operate in −40 to +65°C. The rugged compact aluminum enclosure of the M-Max® SW208-PD1 is fanless and uses passive cooling. The M‑Max® SW208-PD1 has eight 10/100/1000 Mbps copper twisted pair ports.

Support for control and management is through a web interface, and host processor access is through a Command Line Interface (CLI).

Technical specifications
Main features: Layer 2+ Managed Switch
Built-in microcontroller with management software
8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IP multicast group support
Programmable multi-layer classifier with 8 QoS queues per port
DSCP remarking for IPv4 and IPv6 frames
Rapid spanning tree protocol (RSTP) support
Power: +5 to +36 V DC (non-isolated)
Power Consumption: 5.4 W (typical)
LAN: 8x switched 10/100/1000 Base-T ports
Cofiguration port: 1x RS-232
Optional Power Supply: External P/S 120 W 90…260 V AC (-40 to +85 °C, IP67)
External P/S 50 W AC/DC for DIN-rail (-10 to +60 °C, IP20)
External P/S 40 W 90…260 V AC (0 to +40 °C, IP40)
Connectors: 1x SNC 28-3/14 (Power)
1x SNC 23-3/14 (RS-232)
8x M12 (Ethernet)
All connectors are IP67
Indication: Power ON, 8x LAN activity
Enclosure: Aluminum enclosure
Passive cooling system (no fans)
Weight: 0.95 kg (preliminary)
Mechanical (W x H x L): 154.3 x 148 x 62.3 mm (without end caps and connectors)

Environmental and physical specifications

Operating temperature: -40 to +65 °C
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Storage temperature: -40 to +85 °C
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g (3-500 Hz),
Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14)
Shock: Maximum peak shock acceleration up to 10g (11 ms)
Complies with MIL-STD-810G (Method 516.6, Procedure I)
Dust/Moisture: IP66
