M-Max SW208

Rugged Gigabit Ethernet Switch
  • Details
  • Specification
  • 8 ports of 10/100/1000 Mbps
  • Shock handling up to 40g, Vibration up to 2.5g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +75 °C

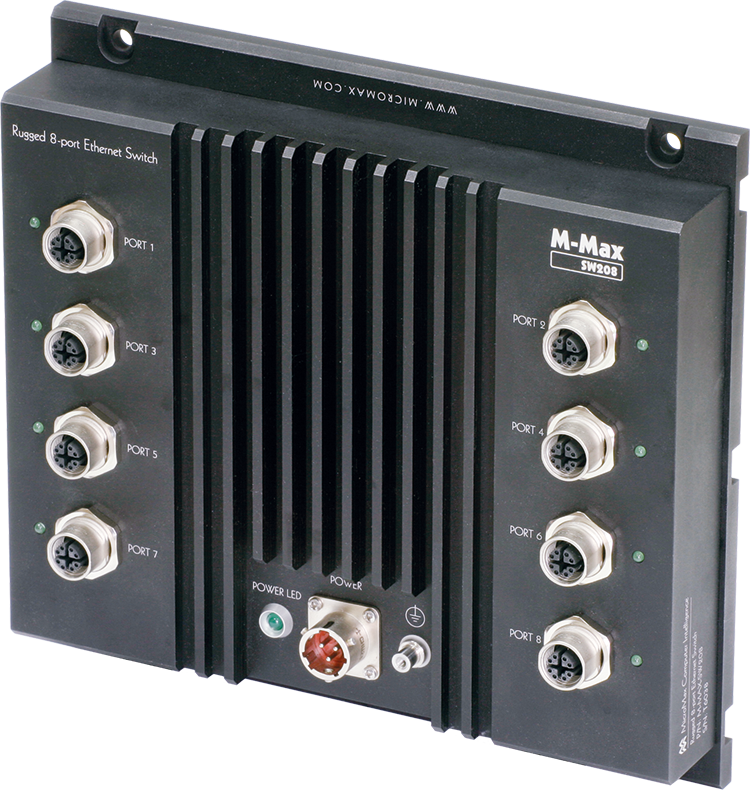

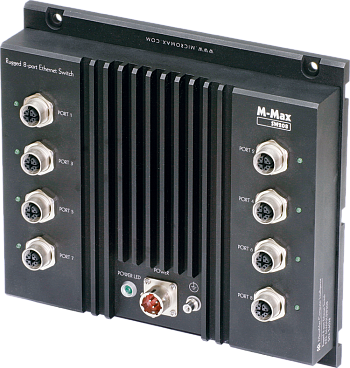

M-Max® SW208 is a ruggedized 8-Port Gigabit Ethernet Layer 2+ Managed Switch providing reliable operation in tough environments including transportation (ground, rail, air and marine), agriculture, and mining and processing.

It accepts a wide power supply voltage input, and is tested and guaranteed over temperature range of −40 to +75°C. Its rugged enclosure is designed according to VITA75 footprint.

The SW208 has eight 10/100/1000 Mbps copper twisted pair ports. Support for control and management is through web interface, and host processor access through a Command Line Interface (CLI).

MicroMax, as a manufacturer of ruggedized industrial computers, takes a customized approach to each client. Our engineering group can design M-Max® systems to fit customer-specific technical requirements.

Technical specifications
Main features: Layer 2+ Managed Switch
Built-in microcontroller with management software
8K MAC addresses and 4K VLANs (IEEE 802.1Q)
8K IP multicast group support
Programmable multi-layer classifier with 8 QoS queues per port
DSCP remarking for IPv4 and IPv6 frames
Rapid spanning tree protocol (RSTP) support
Connectors: 1x SNC 28-3/14 (Power)
8x M12 (Ethernet)
All connectors are IP67
LAN: 8x switched 10/100/1000 Base-T ports
Power: +5 to +36 V DC (non-isolated)
Optional Power Supply: External P/S 120 W 90…260 V AC (-40 to +85 °C, IP67)
External P/S 50 W AC/DC for DIN-rail (-10 to +60 °C, IP20)
External P/S 40 W 90…260 V AC (0 to +40 °C, IP40)
Power Consumption: 5.4 W (typical)
Enclosure: Rugged full metal enclosure
Passive cooling system (no fans)
Indication: Power ON, 8x LAN activity
Mechanical (W x H x L): 203.2 x 38 x 188 mm (without end caps and connectors)
Weight: 1430 g / 3.15 lbs

Environmental and physical specifications

Operating Temperature: -40 to +75 °C
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Non-Operating Temperature: -40 to +85 °C
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g (3–500 Hz)
Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14)
Shock: Maximum peak shock acceleration up to 40g (11 ms)
Complies with MIL-STD-810G (Method 516.6, Procedure V)
Dust/Moisture: IP66
