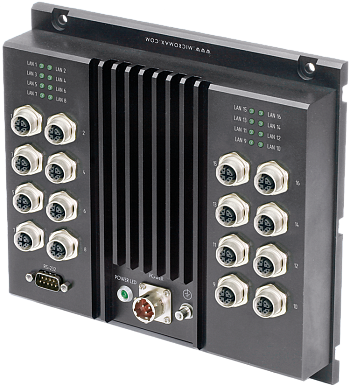

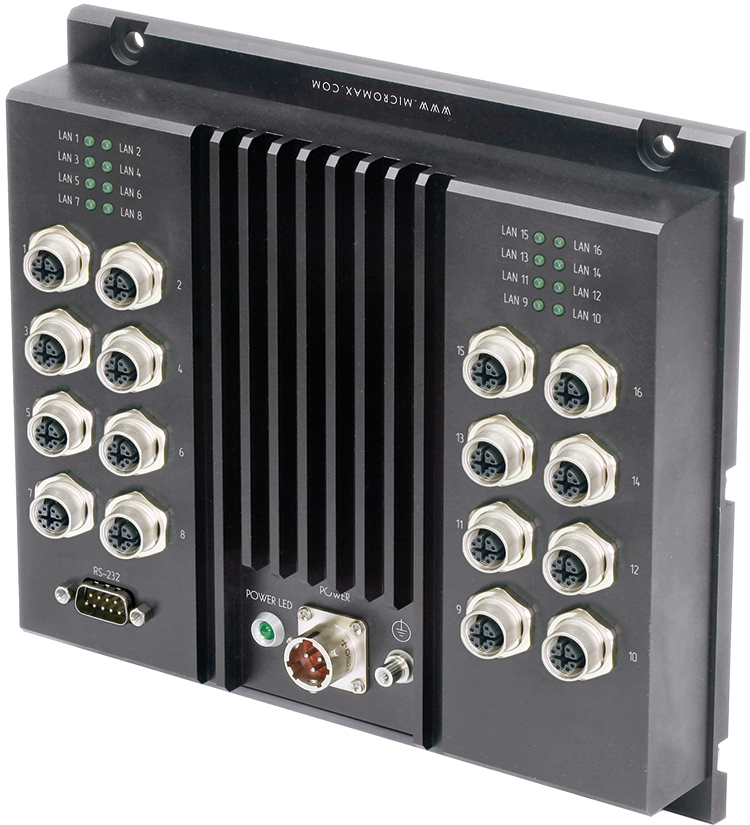

M-Max® SW216 is a ruggedized 16-Port Gigabit Ethernet Layer 2+ Managed Switch providing reliable operation in tough environments including transportation (ground, rail, air and marine), agriculture, and mining and processing.
It accepts a wide power supply voltage input, and is tested and guaranteed over temperature range of −40 to +75°C. Its rugged enclosure is designed according to the VITA75 footprint.
The SW216 has sixteen 10/100/1000 Mbps copper twisted pair ports. Support for control and management is through web interface, and host processor access through a Command Line Interface (CLI).
MicroMax, as a manufacturer of ruggedized industrial computers, takes a customized approach to each client. Our engineering group can design M-Max® systems to fit customer-specific technical requirements.
Technical specifications | |
Main features: |
Layer 2+ Managed Switch Built-in microcontroller for configuration and management 8K MAC addresses and 4K VLANs (IEEE 802.1Q) IPv4 and IPv6 multicast group support 8 priorities and 8 QoS queues per port with scheduling Rapid spanning tree protocol (RSTP) and MTSP |
Connectors: |
1x SNC 28-3/14 (Power) 16x M12 X-coded (GbE) 1x RS-232 (Serial) All connectors are IP67 |
LAN: | 16x switched 10/100/1000 Base-T ports |
Power: | +5 to +34 V DC (non-isolated) |
Optional Power Supply: |
External P/S 120 W 90…260 V AC (-40 to +85 °C, IP67) External P/S 50 W AC/DC for DIN-rail (-10 to +60 °C, IP20) External P/S 40 W 90…260 V AC (0 to +40 °C, IP40) |
Power Consumption: | 10.4 W (typical) |
Enclosure: |
Aluminum enclosure Passive cooling system (no fans) |
Indication: | Power ON, 16x LAN activity |
Mechanical (W x H x L): |
203.2 x 38 x 188 mm (without end caps and connectors) |
Weight: | 1630 g / 3.6 lbs |
Environmental and physical specifications |
|
---|---|
Dust/Moisture: | IP66 |
Operating Temperature: |
-40 to +75 °C Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II) |
Non-Operating Temperature: | -40 to +85 °C |
Humidity: | Operating: 5 to 95 % at +25 °C, non-condensing |
Vibration |
Operating acceleration amplitude up to 2,5g (3-500 Hz) Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14) |
Shock: |
Maximum peak shock acceleration up to 40 g (11 ms) Complies with MIL-STD-810G (Method 516.6, Procedure V) |
