3U Rugged Servers

• Dual Intel Xeon SP CPUs
• Up to 1.5TB DDR4-2933 memory
• Chassis Depth: 20"
• Certified to Industrial Standards

Dual Intel Xeon SP CPUs
Achieve exceptional performance with Intel Xeon Scalable Performance Silver & Gold Series processors. Up to 3.9 GHz clock rate, 22 cores (44 threads), 30.25 MB L3 cache, and 25W — 125W TDP.

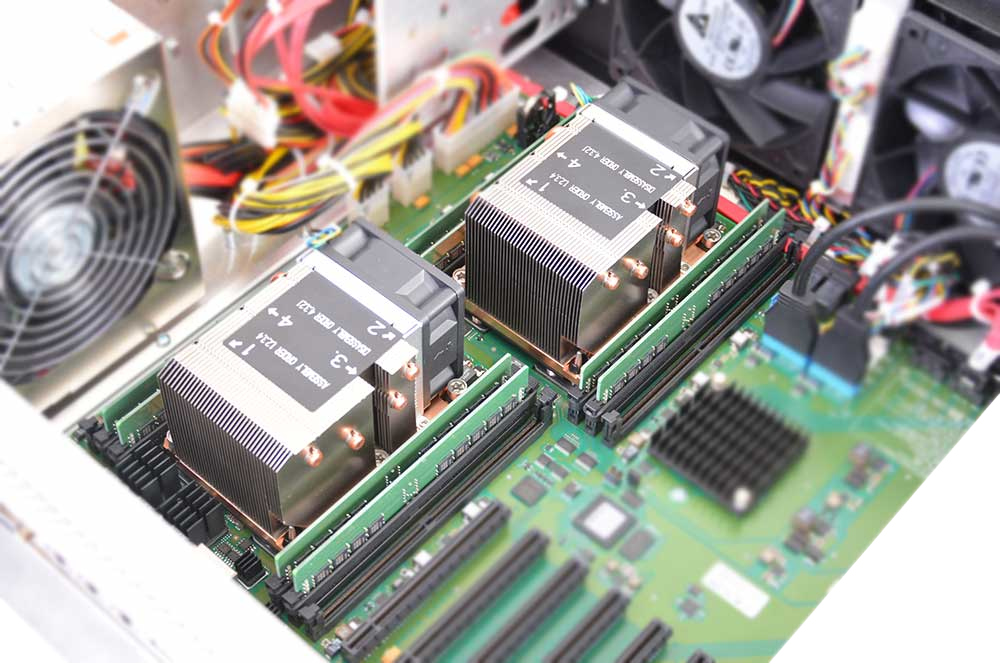

Unforgettable Memory
Maximize signal integrity with 12 carefully optimized ECC RDIMMs across 6 channels and up to 1.5TB DDR4-2933 memory.

Basically the best server-class RAM in a 3U rugged chassis.

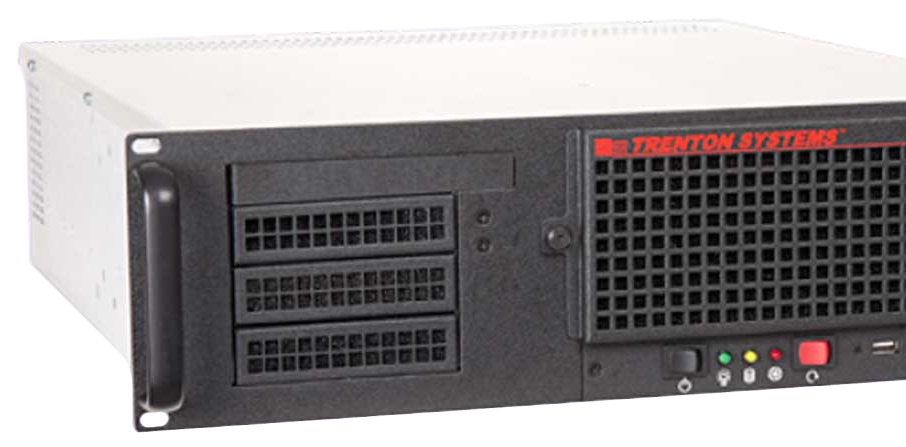

Storage SATAsfied
Up to three 3.5″ drive bays in the front supporting up to 9 SATA 6 GB/s drives and one SlimLine Optical drive.

Lots of Slots
Up to 7 PCIe Gen3 slots in a 3U rugged server with a dual CPU motherboard.

Add even more PCIe slots to your ruggedized computer with our PCIe Expansion Kit.

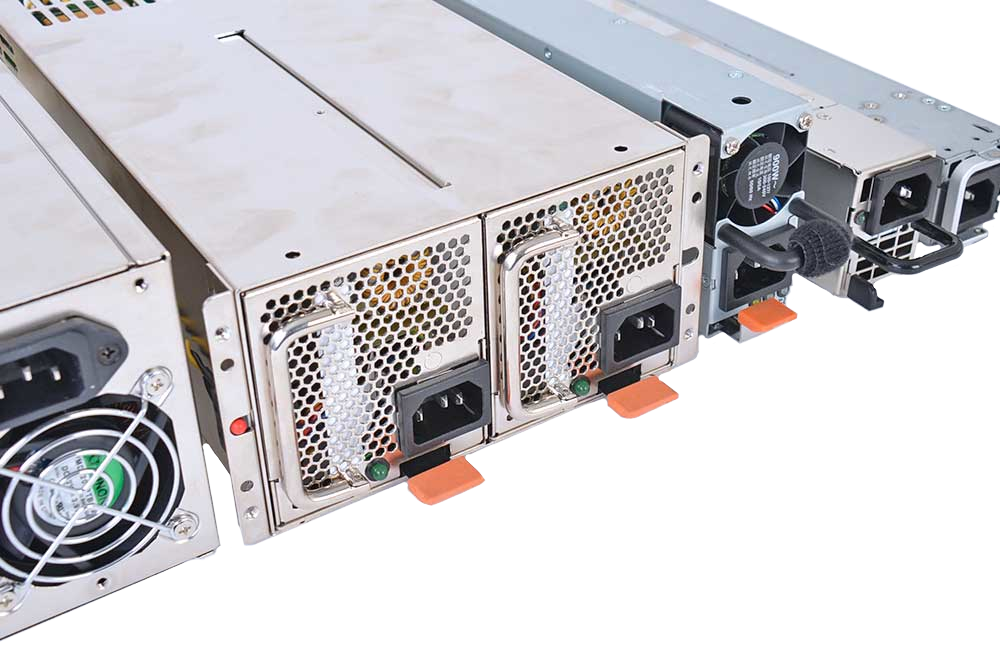

Power. Full.
650W fixed or 1500W redundant power supply offers you versatility and plenty of juice to run the most demanding applications.

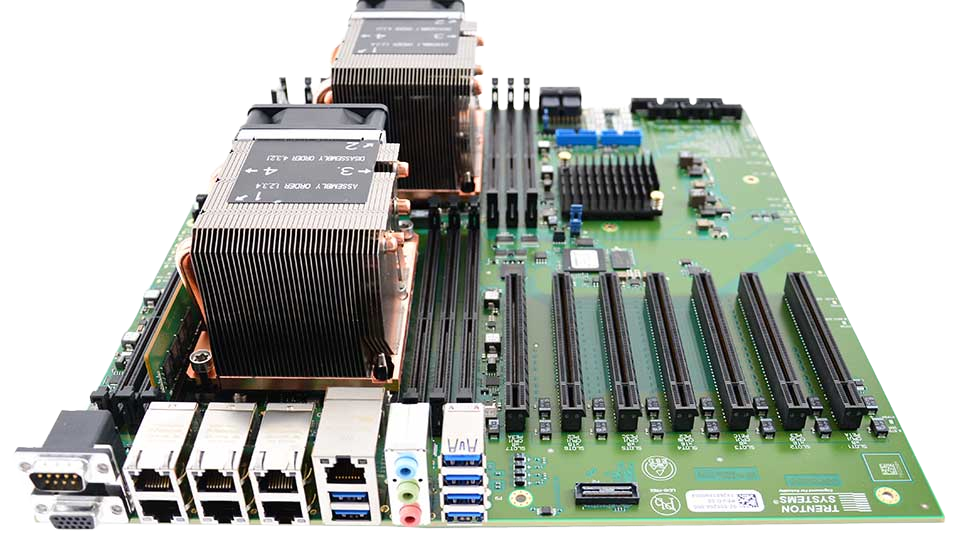

I/Options

• 7×1GbE LAN Ports (1 LAN Port with IPMI)
• 6x SATA 6G Ports
• 10x USB 3.1 Gen 1 Ports (6 ports + 4 via 2 USB headers)
• 6x PWM headers for automatic fan speed control
• 1x VGA Port
• 1x RS-232 Serial Port
• Line In/Line Out/Mic 3.5mm Jacks

Standard I/O interface can be customized to fit your specific program or application.

Components

Processor Boards	CPU	Memory	Ports & Headers
SSP8268	Dual Intel Xeon Scalable Performance	Up to 1.5 TB DDR4-2933 across 12x ECC RDIMMs (6x channels)	7x 1GbE LAN Ports (1 LAN Port with IPMI) 6x SATA 6G Ports 10x USB 3.1 Gen 1 Ports (6 ports + 4 via 2 USB headers) 1x VGA Port 1x RS-232 Serial Port 2x U.2 Ports

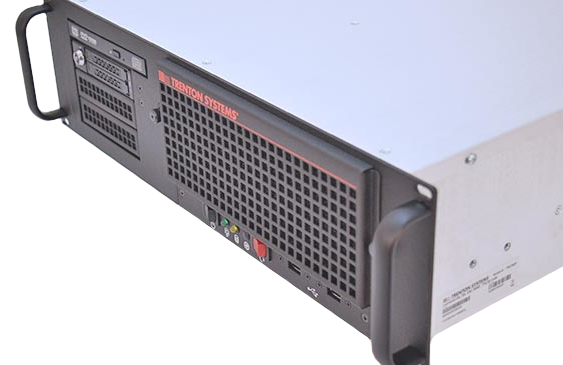

Rugged Chassis	Power Supply	Drives	Size (W x H x D)
TRC3010	650W fixed or 1500W redundant	Up to three 3.5” drive bays in the front supporting up to 9 SATA 6 Gb/s drives and one SlimLine Optical drive	19" x 5.25" x 20" 48.3 cm x 13.3 cm x 50.8 cm
TRS3501	650W Fixed or 1500W Redundant	Up to two 5.25” drive bays supporting up to 16 SATA 6 Gb/s drives and one SlimLine Optical drive	19" x 5.25" x 20" 48.3 cm x 13.3 cm x 50.8 cm

PCIe Expansion Kit	Description
PED8234	Add up to 18 PCIe slots per x16 slot in any system with either a 1m or 3m cable.
