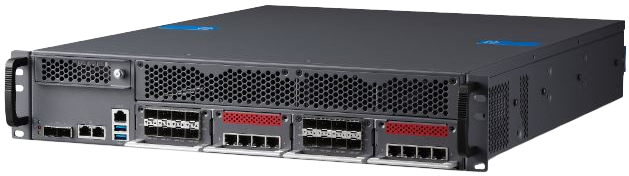

CSA-7210
2U 19” Network Appliance with Intel Xeon Scalable Silver/Gold Processors for communications and computing infrastructure deployment
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- Up to 2x Intel Xeon Scalable Processors
- 16x DDR4 2666 ECC REG memory up to 512GB
- Up to 8x NIM slots for network expansion
- Up to 2x PCIe x16 Gen3, 4x 3.5” SATA 6 Gb/s, 1x CFast
- Operating temperature: 0°C to +40°C
2U 19″ Network Appliance with Intel Xeon Scalable Silver/Gold Processors for communications and computing infrastructure deployment.
| Technical specifications | |
| CPU |
Up to 2x Gen1 or Gen2 Intel Xeon Scalable Processors up to 165W TDP, including: Intel Xeon Silver 4116 Processor 2.10 GHz (12C, 85W) Intel Xeon Silver 4210 Processor 2.20 GHz (10C, 85W) Intel Xeon Silver 4214 Processor 2.20 GHz (12C, 85W) Intel Xeon Silver 4216 Processor 2.10 GHz (16C, 100W) Intel Xeon Gold 6130 Processor 2.10 GHz (16C, 125W) Intel Xeon Gold 6230 Processor 2.10 GHz (20C, 125W) Intel Xeon Gold 6238T Processor 1.90 GHz (22C, 125W) Intel Xeon Platinum 8260 Processor 2.40 GHz (24C, 165W) |
| Chipset | Intel C622/C627 Chipset (SKU dependent) |
| Memory | 16x DDR4-2666 DIMM sockets, ECC, registered, up to 512GB |
| BIOS | AMI BIOS on SPI flash memory |
| Expansion |
8x Network Interface Module (NIM) slots or 4x NIM slots and 2x PCIe x16 Gen 3 single-slot FHHL (Sku dependent) |
| Ethernet |
2x RJ-45 10/100/1000BASE-T Ethernet ports 2x 10G SFP+ Ethernet ports |
| Console | 1x RJ-45 serial port |
| USB | 2x USB 3.0 |
| Graphics | 1x VGA port (internal) |
| Control | Power button on the rear of the chassis |
| Management | IPMI v2.0 with iKVM and SOL support |
| Drive Bays |
1x onboard CFast socket 1x 3.5” hot-swappable SATA 6 Gb/s drive bay 3x 3.5” internal SATA 6 Gb/s drive bays with hardware RAID support (SKU dependent) |
| LEDs | Power, Alert, Drive Activity (user programmable) |
| TPM | TPM1.2/2.0 (SKU dependent) |
| Intel QuickAssist Technology | 100Gb/s Intel QAT support (SKU dependent) |
| Operating System |
Windows 7 64-bit Windows 10 64-bit Windows Server 2016 Linux Kernel 2.6 and above |
| Software Support | Validated with DPDK, provides a high throughput for data plane packet processing |
| Form Factor | 2U 19” rackmount 438mm x 88mm x 560mm (WxHxD) |
| Fans | 3 fans, adaptive speed |
| Power | 800W or 1200W, AC/DC/HVDC |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | 0°C to +40°C, 10%-85% RH @40°C, non-condensing |
| Storage temperature | -40°C to +70°C, 5%-90% RH, non-condensing |
| Shock |
Operating: Half-sine 2G, 11ms pulse, 100 pulses in each direction Non-operating: Trapezoidal, 25G, 170 inches/sec delta V, three drops in each direction |
| Vibration | Non-operating Vibration: 2.2Grms, 10 minutes per axis in each direction |
| Acoustic | Sound pressure < 75 dBA @1m with all fans maximum speed |
| MTBF | 90,000 hours |
| Regulatory | FCC Class A, CE emissions, UL, CB, CCC and RoHS compliant |
| Model | Description |
| CSA‑7210 | CSA-7210 2U network appliance |
