Rugged Vehicle Tablet
  • Details
  • Specification
  • 10” HD display, 1000 cd/m²
  • Qualcomm Cortex-A53 64-bit Octa-core Processor, 1.8 GHz (Pro version)
  • Dust/moisture: IP67
  • Operating temperature: -10°C to +65°C

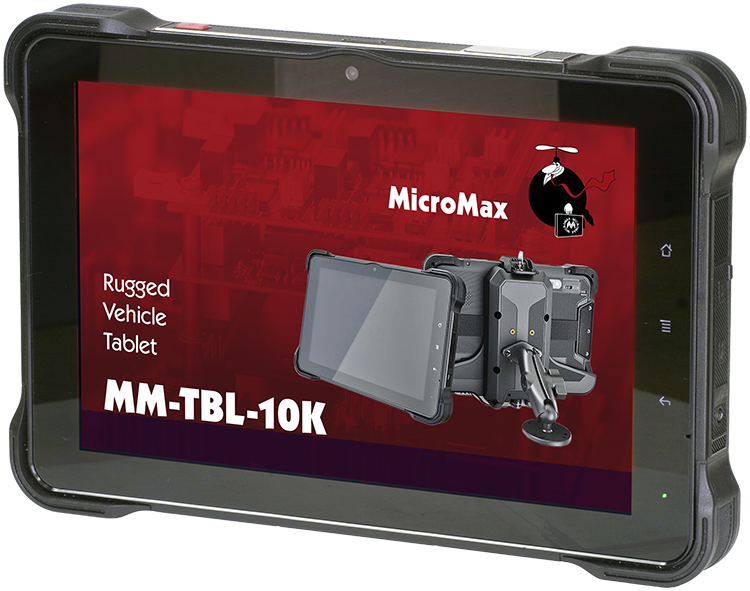

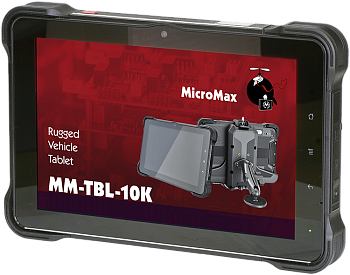

MM-TBL-10K is a rugged and reliable vehicle tablet, widely used in transportation (ground, rail, air and marine), agriculture, mining and other industrial applications.

The open-source software platform allows customization of the user’s Android-based applications to run them on MM-TBL-10K.

The tablet will enable your employees to operate more efficiently and effectively.

Hardware, software and device interfaces can be customized according to user requirements.

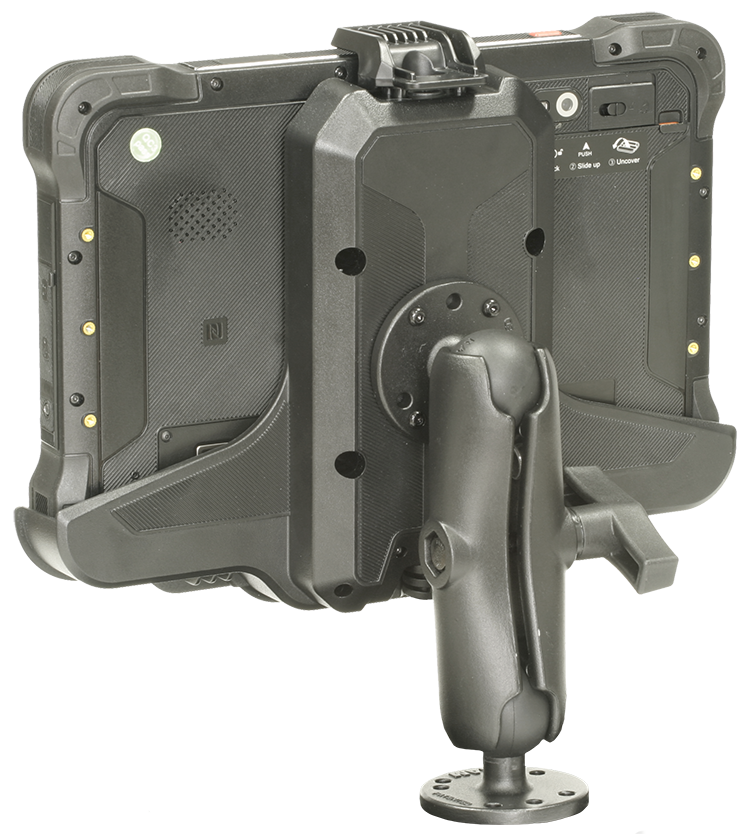

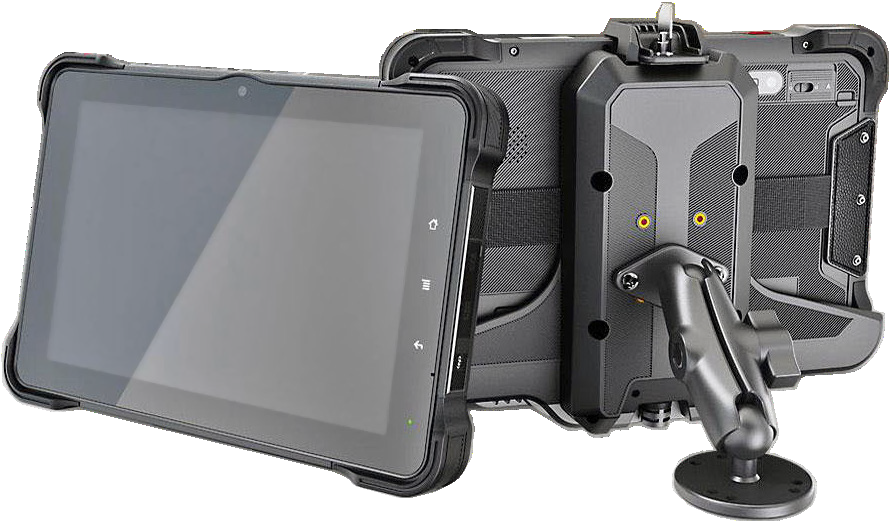

Optional docking station enables mounting where convenient — especially useful for transport applications.

Technical specifications:
Display: 10”, LCD, HD (1280x800), brightness - 1000 cd/m² (max)
Touchscreen: Multi touch capacitive touchscreen supporting glove and rain mode.
Operating system: Android 7.1.2;
Android 9.0 (Pro version)
Processor: Qualcomm Cortex-A7 32-bit Quad-core processor, 1.1 GHz
Qualcomm Cortex-A53 64-bit Octa-core processor, 1.8 GHz (Pro version)
RAM: 2 GB LPDDR3 (up to 4 GB for Pro version)
Storage: 16 GB eMMC (up to 64 GB for Pro version)
Storage expansion: Micro SD 64 GB (up to 128 GB for Pro version)
GPU: Adreno 304
Adreno 506 (Pro version)
Camera (optional): Rear: 8 MP with LED light
Rear: 16 MP with LED light + front: 5 MP (Pro version)
Bluetooth: 4.2 BLE
WLAN: IEEE 802.11 a/b/g/n, 2.4 GHz / 5 GHz
IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz (Pro version)
Mobile Broadband: LTE, HSPA+, UMTS, EDGE, GPRS, GSM (data and voice)
NFC: Yes (optional)
Sound: Build-in speaker 2W, 85dB
Internal microphones
Interfaces: Type-C,
Type-C, USB 2.0 for data transfer, support OTG (USB 3.0 for Pro version)
Docking connector x1 (Pogo pin x24)
Headset jack
1D/2D scanner (optional): All major 1D barcodes, PDF417, QR code M1/M2/Micro and Data Matrix etc
Fingerprint reader (optional): Capacitive, area sensor
Sensors: Acceleration sensors, ambient light sensor, gyroscope, compass
Power: 8-36V DC (ISO 7637-II compliant)
Battery: Li-Ion, 3.7V, 8000mAh (replaceable)
Battery charging time: About 4.5 hours
Dimensions: 277mm x 185mm x 31.6mm
Weight: 1316g / 1357g (Pro version)

Environmental and physical specifications

Operating temperature: -10°C to +65°C
0°C to +55°C (charging)
Storage temperature: -20°C to +70°C
Vibration: MIL-STD-810G compliant
Shock: Gravity drop resistance test: 120cm
Dust/Moisture: IP67
