BoltGATE 20-25

EN50155 Multi-Service Gateway & Edge Controller
Eurotech Group Vendor:
Eurotech Group
  • Details
  • Specification
  • EN50155 Class Tx with IP65
  • Fanless Performance
  • Rich Isolated I/O
  • Operating Temperature: - 40 to +85 °C

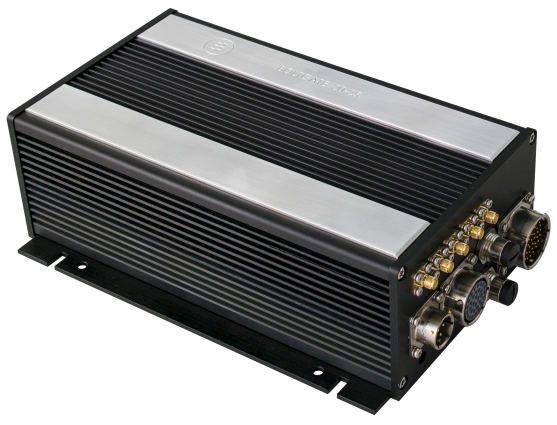

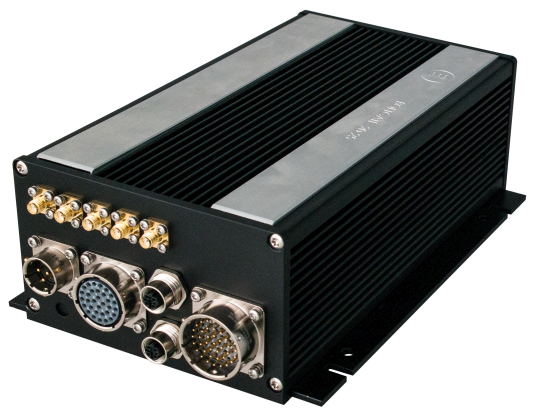

The BoltGATE 20-25 is EN50155 certified and is designed to exceed the requirements of rolling stock in the Tx temperature class. With IP65 rating, it is extremely rugged and suitable for any application where consistent performance and reliability are a must.

Based on the Intel Atom E38xx processor family, with up to 4GB of RAM and 8GB of eMMC, the BoltGATE 20-25 offers extra storage expansions through optional internal or removable 2.5″ SATA SSD/HDD, mSATA, and a user- accessible microSD slot.

At 30W max, the BoltGATE 20-25 is a fanless, compact unit that provides a large number of communication and I/O interfaces: two Gbit Ethernet, protected USB (one USB 2.0 for general purpose and one USB 2.0 for maintenance), four opto-isolated serial (RS-232/RS485/RS-422) interfaces, eight opto-isolated DIO plus odometer and key signals, audio line in/ out and video. It also features a wide range of connectivity capabilities including a global cellular modem, Wi-Fi, Bluetooth Low Energy, and a dedicated internal GPS with Dead Reckoning.

As a result of its modular design, the BoltGATE 20-25 can easily be customized for the requirements of the target application. With three full miniPCIe slots, it can accommodate additional connectivity or communication options and, through Eurotech Professional Services, it can offer custom front panel configuration and connectors or customized software images.

The BoltGATE 20-25 comes with Linux and Windows operating systems. It also includes a genuine Oracle Java SE Embedded 8 Virtual Machine and Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT gateways. Distributed and supported by Eurotech, ESF adds advanced security, diagnostics, provisioning, remote access and full integration with Everyware Cloud (EC), Eurotech’s IoT integration platform (separately available).

Technical specifications


Single Core BayTrail (E3815, 1.46GHz, 1 core)
Dual Core BayTrail (E3827, 1.75GHz, 2 cores)
Quad Core BayTrail (E3845, 1.91GHz, 4 cores)


RAM (E3815 and E3827) 2GB 1333MHz (DDR3L-ECC)
RAM (E3845) 4GB 1333MHz (DDR3L-ECC)


Embedded 8GB eMMC
SATA No (E3815)
1x 64GB SSD MLC (optional) (E3827)
1x 64GB SSD MLC (E3845)
Drive Bay 2x Internal (Optional Removable Drives)
Other 1x microSD Slot (Maintenance Panel)

I/O interfaces

Ethernet 2x 10/100/1000Mbps
USB 1x USB 2.0 Noise and Surge Protected - 1x USB 2.0 - 1x USB 3.0
Serial 2x RS-232/422/485 (9 Wires) Opto-isolated - 2x RS-485/RS-422 Opto-isolated 1x Serial Console TTL
CAN 2.0B 1x CANBus 100mA with 5V Power Out, Isolated on MX
Digital I/O 4x Digital Input Opto-isolated - 4x Digital Output Opto-isolated 1x Odometer Opto-isolated - 1x Ignition Key Opto-isolated
Video 1x Mini Display Port (Maintenance Panel)
Audio 1x Line IN Stereo - 1x Line OUT Stereo (Maintenance Panel)

Radio interfaces

Cellular Internal Cellular Modem - 2G/3G/4G/LTE Options
GPS GPS/QZSS/GLONASS/BeiDou/Galileo with Dead Reckoning
Wi-Fi / BT 802.11b/g/n, 4.0 BLE


RTC Yes, with SuperCAP (3 Months Retain), Fast Reboot Support
Ext. Watchdog Yes
Accelerometer Yes, 3 Axis
LEDs 1x Power - 3x MiniPCIe Slot - 2x Programmable (Dual Color Green/Amber)


Buttons 1x Reset, 1x Programmable (Maintenance Panel)
Micro SIM slot 2x Connected to MiniPCIe (Maintenance Panel)


MiniPCIe Slots 3x Full/Half-Size Mini PCIe


Input 8-36VDC (Nominal 24VDC) or 77-143VDC (Nominal 110VDC)
Consumption 30W Max


OS Yocto Linux or Windows 10 IoT
IoT Framework Everyware Software Framework (Java/OSGi)

Environmental and physical specifications

Operating Temperature -40 to + 85°C
Storage Temperature -40 to + 85°C


Regulatory EN50155 - CE - EN45545 (Fire and Smoke)
Safety UL 60950
Environmental RoHS2 - REACH
Wi-Fi / BT Radio RED
Cellular (Internal) PCTRB, AT&T
Enclosure Protection IP65
