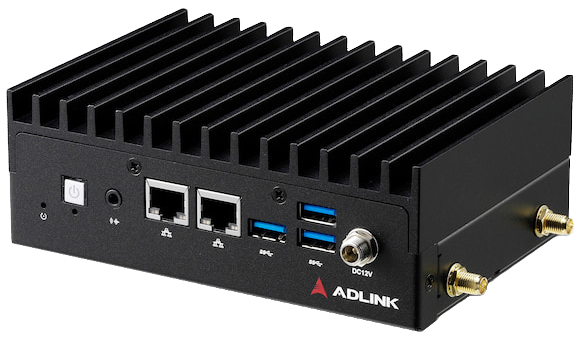

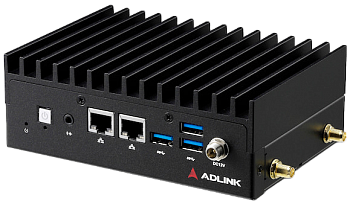

DLAP-201-JT2
NVIDIA Jetson TX2 Edge AI Inference Platform
Vendor:ADLINK Technology Inc.
- Details
- Specification
- Order information
- NVIDIA Jetson TX2
- Memory: 8GB
- Compact fanless system 148 x 105 x 50 mm
- Operating temperature: -20°C to +70°C (-4˚F to 158˚F)
Deploying AI at the edge can be a complex undertaking. ADLINK’s deep learning acceleration platforms (DLAP) offer scalable, power-efficient AI inference with support for the full lineup of NVIDIA Jetson family.
The DLAP series provides rich I/O interfaces and flexible expansion and support software development kits to reduce design time and efforts to accelerate edge AI deployment.
ADLINK DLAP series are fully compatible with Allxon Remote Device Management, a unified, centralized cloud portal for remote edge security management.
| Technical specifications | |
|
System Core |
|
|---|---|
| Processor | NVIDIA Jetson TX2 |
| Memory | 8GB |
| eMMC | 32GB |
|
Graphic Output |
|
| Graphic Output | 1 HDMI 2.0 (w. lock) |
|
Front Panel I/O Interface |
|
| Ethernet | 2x GbE |
| USB 3.0 | 3x Type A |
| Audio | Mic-in, line-out |
|
Rear Panel I/O Interface |
|
| USB 2.0 | 1x OTG |
| Serial Port | 1x COM RS-232/485 |
| CAN Bus | 1 CAN bus (2.0b) |
|
Internal I/O Interface |
|
| Mini PCIe | 1x PCIe mini-card slot |
| USIM | 60 W AC-DC adapter |
| DIO | 4 channel DIO |
| Debug Port | 1x debug console |
|
Storage Device |
|
| SATA Extension | mSATA |
| SD Card | 1x SD |
|
Power Requirements |
|
| DC Input | 12V |
| AC Input | 60 W AC-DC adapter |
| Fail Reset | Reset/recovery button |
| Power LED Indicator | Power button |
|
CMOS Battery |
|
| Holder | BR2032 |
| Protection | Reverse charge protection |
|
Mechanical |
|
| Antenna Hole | 4 x SMA |
| Dimensions | 148 x 105 x 50 mm |
| IP Grade | IP40 |
| Mounting | Wall mount & VESA & DIN rail |
|
Environmental and physical specifications |
|
| Operating Temperature | -20°C to +70°C (-4˚F to 158˚F) |
| Storage Temperature | -40°C to +85°C (-40˚F to 185˚F) |
| Operating Humidity | ~95% @40C (non-condensing) |
| Model | Description |
| DLAP‑201‑JT2 | NVIDIA Jetson TX2 Edge AI Inference Platform |
| AC-DC Adapter 60W, US cord | AC-DC Adapter 60W, US power cord as accessory to DLAP-201-JT2 |
