4CH GigE Vision Compact Vision System with 6th Generation Intel Core i7 Processors
  • Details
  • Specification
  • Order information
  • 6th Generation Intel Core i7 Processors
  • Up to 32 GB DDR4 at 2133MHz
  • Up to 4CH Gigabit PoE (Power over Ethernet)
  • Operating temperature: 0˚C to +55˚C (32˚F to 131˚F)

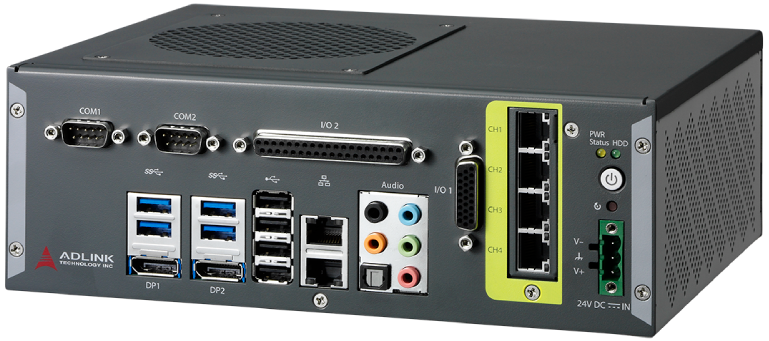

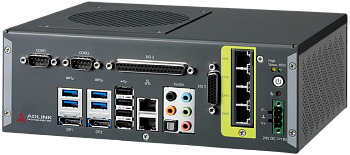

Adlink’s EOS-1300 is a high performance compact vision system equipped with 6th Generation Intel Core i7 processors and four independent PoE (power over Ethernet) ports, delivering data transfer rates up to 4.0 Gb/s.

EOS-1300’s FPGA based DI/O provides programmable de-bounce filter, on the fly trigger, and user wiring Sink/Source DO and Encoder functions, making it the ideal solution for machine vision applications requiring high computing power and time deterministic solutions with minimal footprint.

The EOS-1300 DI/O provides minimal and fixed latency without occupying CPU resources. The DI/O function provides APIs allowing programming for de-bounce filter of DI, delay time, and pulse width of DO and also advanced Encoder functions suitable for conveyor applications. The highly flexible design supports either Sink or Source DO via external wiring.

With all I/O connectors on one side for easy installation, and the latest 6th Generation Intel Core i7 processor, powerful and flexible DI/O, and compact size, the EOS-1300 is the perfect vision system for automation and machine vision.

Technical specifications
CPU Intel Core i7-6700
System Memory Up to 32 GB DDR4 at 2133MHz
Camera Interface 4CH Gigabit PoE
IEEE 802.3af compliant, total max. power output 32W
Chipset Intel H110
Display 2 display ports with resolution up to 4096 x 2160
USB 4x USB 2.0 and 4x USB 3.0 ports (internal 1x USB 2.0)
Audio 7.1 channel audio via 5 jacks and S/PDIF output
COM Ports 1x RS-232/422/485 and 1x RS-232
Digital I/O 12x isolated DI (4x DI can be configured to Trigger in)
2x Encoder input
16x isolated DO (4x DO can be configured to Trigger Out)
user wiring Sink/Source DO
Storage 1x 2.5" SATA interface
Keyboard/Mouse USB type
Power supply DC 24V, ATX mode
Dimensions 232W x 180.8D x 82.8H mm (9.1 x 7.1 x 3.2 in)

Environmental and physical specifications

Operating temperature 0˚C to +55˚C (32˚F to 131˚F)
Humidity 0% to 90%
Random vibration Operating 0.5 Grms, 5-500 Hz, 3 axes w/ HDD
Safety compliance CE/FCC, UL, RoHS
Model Description
EOS‑1300 bare package EOS-1300 bare BOM package, without CPU, Memory and storage
EOS-1300/M16G 4CH PoE Vision system, i7-6700, 16G RAM
EOS‑1300/M4G/500GHDD 4CH PoE Vision system,i7-6700, 4G RAM, 500G HDD
EOS-1310/M16G 4CH PoE Vision system, i5-6500, 16G RAM
EOS‑1310/M4G/500GHDD 4CH PoE Vision system, i5-6500, 4G RAM, 500G HDD
EOS-1320/M16G 4CH PoE Vision system, i3-6100, 16G RAM
EOS‑1320/M4G/500GHDD 4CH PoE Vision system, i3-6100, 4G RAM, 500G HDD
EOS‑1330/M4G/500GHDD 4CH PoE Vision system, G3900, 4G RAM, 500G HDD
EOS-1200 Din Rail mount kit EOS-1200 series Din Rail mount kit
EOS-1300 Din Rail mount kit Material: AL 6063 T5 & SWP-B (NI PLATING), Finish: Aluminum extrusion, Anodizing: natural Color SWP-B NI PLATING, Dimension: 76.4 x 52.5 x 11.2 mm
EOS-1300 Wall mount kit Material: SPCC t=1.5mm, Print Color: PANTONE Gray 3C, Finish: Plating Ni (No burrs and loose chips)
AC-DC ADAPTER 220W 220W AC-DC High Reliability Industrial Adaptor
Input: 85~264VAC
Output: 24V/9.2A
Efficiency(Typ.): 93.5%
Operating temperature: -30~70°C
US Power Cord_10A,110V Wire: SVT 18/3C 105, L=5000+/-100mm, Color: Black Green Part(8554185)
DB62 to 4port Cable,L=150mm Cable: UL2464 28AWG, L=150+/-10mm,
CN1 D-SUB 62P*1Path=2.41mm
CN2 D-SUB 9P*4 Path=2.77mm
HDD 2.5" SATA 1TB 5400RPM/Cache, Buffer: 128M, Interface: SATA 6Gb/s, Operating temperature: 0°C to 60°C
AC-DC Adapter 280W, accessories kit, US power cord AC-DC Adapter 280W + US power cord for EOS-i
AC-DC Adapter 220W, US power cord AC-DC Adapter 220W + US power cord for EOS-i
