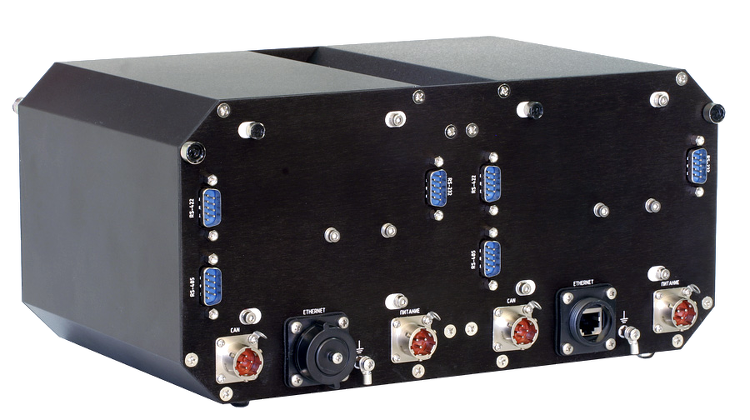

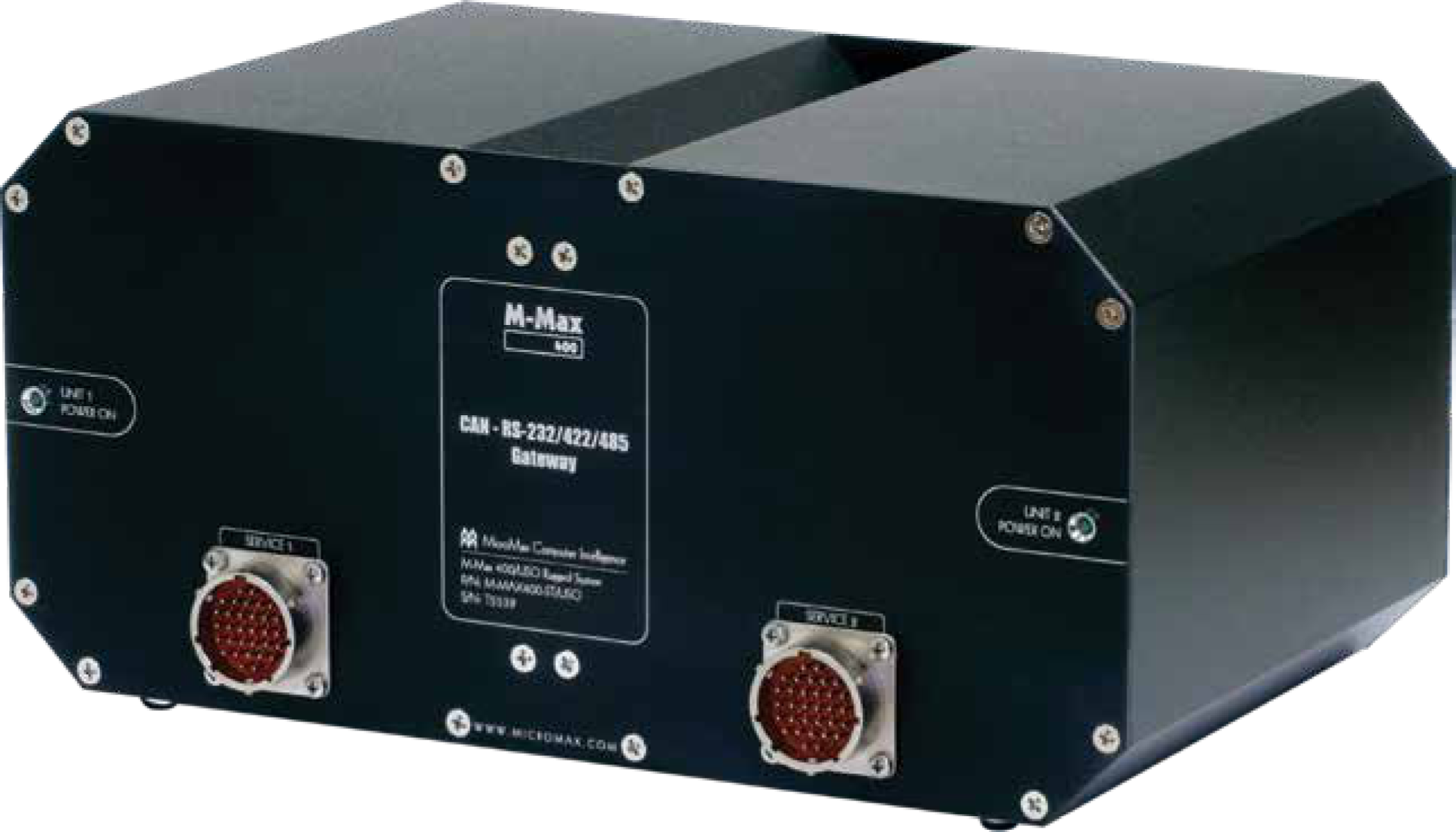

The M-Max® 400 ST/USO is an error‑free rugged computer for on‑board and off-the-shelf applications. It provides error-free signaling information processing, based on 2-out-of-2 architecture.
The M-Max® 400 ST/USO contains two identical subsystems connected to each other via internal interface. Each subsystem has its own processing core and a UPS employing an intelligent ultracapacitor-based charging device.
The M-Max® 400 ST/USO’s two independent CPUs form a vital processing core and perform calculations (such as interlocking logic) in different ways. Once per cycle they are synchronised with each other to exchange data and perform consistency cross-checks.
The UPS ultracapacitors provide the system with 70 seconds of backup power. The system is designed for use on stationary objects within the railway infrastructure.
MicroMax, as a manufacturer of industrial computers, takes a customized approach to each client. Our engineering group can design M-Max® systems to fit customer-specific technical requirements.
Technical specifications | |
Interfaces: |
2x Dual CAN 2x RS-232 2x RS-422 2x Ethernet 10/100 Mbps |
Operating system: | Linux / Windows / QNX |
Power: |
+10 to +40 V DC (isolated) AC adapter ~100 to 240 V (optional) |
Power Consumption: | 2x 12W (Maximum 2x 50W) |
Indication: | 2x Power ON indicator |
Enclosure: |
Aluminum enclosure Passive cooling system (no fans) |
Mechanical (W x H x L): | 294 x 145 x 208 mm |
Environmental and physical specifications: |
|
---|---|
Operating Temperature: |
-40 to +60 °C Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II) |
Humidity: | Operating: 5 to 95 % at +25 °C, non-condensing |
Vibration: |
Operating acceleration amplitude up to 2g (3–500 Hz) Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14) |
Shock: |
Maximum peak shock acceleration up to 6g (11 ms) Complies with MIL-STD-810G (Method 516.6, Procedure I) |
Dust/Moisture: | IP50 |
