M-Max 400 TBT1

High Performance Rugged Computer System
  • Details
  • Specification
  • 3x Single Board Computers inside one aluminum chassis
  • IP66 rated dust and moisture protection
  • Shock handling up to 10g, Vibration up to 2.5g
  • Operating Temperature: -30 to +55 °C

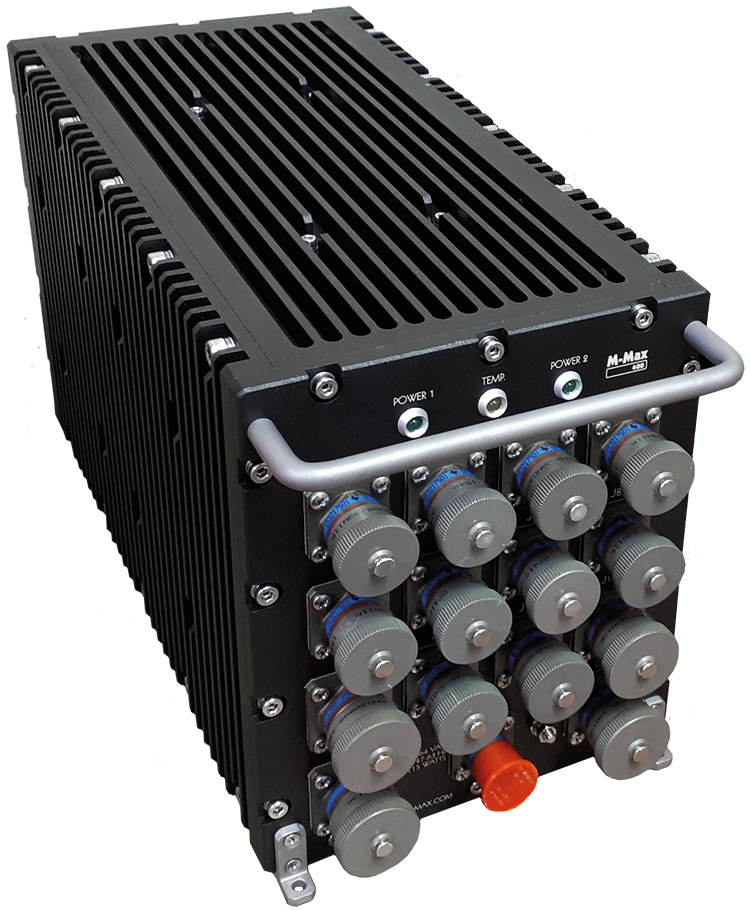

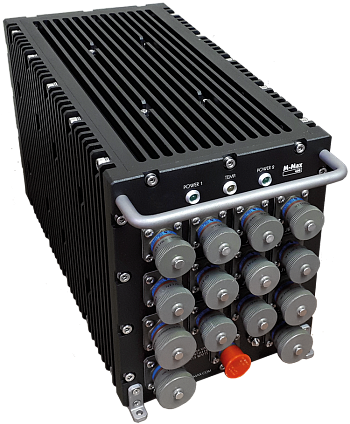

The M-Max® 400 TBT1 is a high performance rugged computer for mission-critical applications. It is based on the ultra-low power Intel Dual Core i7-6600U CPU. The system is built with a dual 115V AC electrical power system with a wide input voltage range from 90V AC to 264V AC. It is resistant to high voltages, spikes, and surges.

Three SBCs and an embedded 16-port switch are encased into an ATR-type enclosure. Its conductively cooled, sealed aluminum chassis incorporates protection from water and dust ingress. Power and system I/O signals are brought out through lightweight, high-density MIL-DTL-38999 connectors.

Technical specifications
CPU: 3x SBCs with Intel Dual Core i7-6600U CPU 2.6GHz
Chipset: Integrated onto processor package
RAM: 3x 4GB DDR4 RAM (soldered)
Data storage: 2x 32 GB SATA MLC SSD DOM Industrial Grade,
1x 256GB mSATA MLC SSD Industrial Grade
Video: 3x Analog VGA video output
(One port per Service Connector)
Connectors: 15x Circular MIL-DTL-38999
LAN: 10x Gigabit Ethernet 10 / 100 / 1000 Mbps ports
Serial ports: 6x Dual RS-422
USB: 3x Dual USB 2.0 port
(Two ports per Service Connector)
Operating system: Hardware compatible with x86 Standard/Embedded operating systems:
Windows 7 / 8 / 10, Linux Ubuntu 16.04 / Centos 6.x 64-bit
Power: 115V AC dual power supply system with Voltage / Surge Protection and Filtering
Power Consumption: 125 W
Indication: POWER 1: LED is ON when power is provided by the first embedded power supply unit,
POWER 2: LED is ON when power is provided by the second embedded power supply unit,
TEMP: LED is ON when the internal temperature exceeds +85 °C
Enclosure: Aluminum ATR-type enclosure,
Passive cooling system (no fans)
(W x H x L):
160 х 229 х 365.7 mm
(with end caps and connectors)
Weight: < 7.1 Kg

Environmental and physical specifications for typical system

Operating Temperature: -30 to +55 °C,
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration: Operating acceleration amplitude up to 2.5g (3–500 Hz).
Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14)
Shock: Maximum peak shock acceleration up to 10g (11 ms)
Complies with MIL-STD-810G (Method 516.6, Procedure I)
Dust/Moisture: IP66
