M-Max 720 PR7

Battery Powered Rugged Computer System for Mission-Critical Applications
  • Details
  • Specification
  • Intel Atom E3826 1.46 GHz
  • 2048 MB DDR3 SDRAM, soldered on board
  • IP64 (system unit), IP65 (external battery unit)
  • Operating temperature: -40 to 71 °C Ambient (normal operation without batteries)

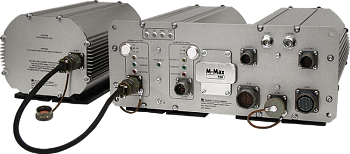

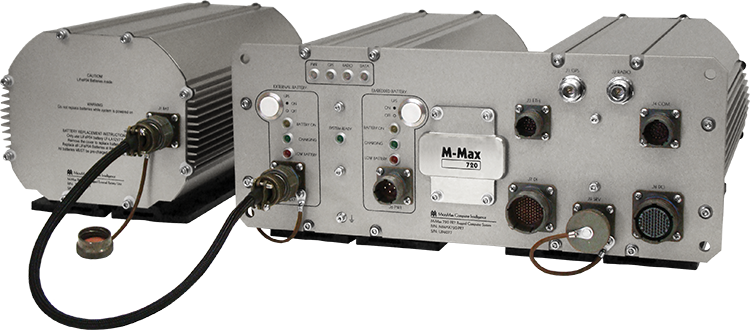

The M-Max® 720 PR7 is a high performance battery powered rugged computer system for mission-critical applications. The system is designed to operate in extremely harsh environments and is equipped with: GPS module, 900 MHz Radio modem, 48x Isolated Digital I/O interfaces, four functional LEDs, expanded set of RS-232/485, USB 2.0, VGA and Gigabit Ethernet ports. The computer is based on the ultra-low power 1.46GHz Intel Atom Dual Core E3826 CPU. The system is designed to operate as a standalone computer or together with the M-Max® B00 external Rugged Battery unit.

The system is built with a 24/28V DC electrical power system with a wide input voltage range from 12V DC to 30V DC. It is resistant to high voltages, spikes, and surges.

The system’s LiFePO4-batteries based UPS provides 10 hours of backup power and supports an online connection to an external Rugged Battery unit. The system provides a smooth switch from the internal to the external battery and back when the power is not provided. One external battery unit provides additional 10 hours of operation for the system.

MicroMax, as a manufacturer of highly rugged industrial computers, takes a customized approach to each client and can provide even a single system for development and production.

Technical specifications
CPU: Intel Atom E3826 (Dual Core, 1.46 GHz, 1MB L2 Cache, 64-bit Instruction Set, 22 nm)
RAM: 2048 MB DDR3 SDRAM, soldered on board
Data storage: 8 GB mSATA SLC, industrial grade
Video: Analog VGA video output
(up to 2560 x 1600 @ 60 Hz, 24 bpp)
Connectors: Circular MIL-DTL-38999 connectors and Type N RF connectors per MIL-STD-348
LAN: 1x Gigabit Ethernet (10/100/1000 Mbps)
Serial ports: 2x EIA RS232/485
1x EIA RS232
DIO: 24x Optically Isolated Digital Outputs
24x Optically Isolated Digital Inputs
(Isolation 2 kV RMS, 0 to 40 VDC input voltage)
USB: 2x USB 2.0
Power subsystem: DC Voltage/Surge protection and filtering
Two embedded UPS controllers (One for embedded batteries and one for external Rugged Battery unit)
Backup power:
10 Hours (with internal battery)
20+ Hours (with external battery)
2x LiFePO4 LF-LA12V7.5 batteries (Each 12.8 V, 90 Wh, UN38.3)
Charge time: 5 Hours
Input Power: +24/+28 V DC nominal
(+12 to +30 V DC range continuous)
Power Consumption: 18 W
Power source required: 110 W (charging embedded and external batteries while 100% CPU load)
Indication: System Ready
Set of Indicators for embedded battery
Set of Indicators for external battery
Four programmable LEDs
Enclosure: Sealed Full Metal w/shock-absorbing mounting
Aluminum Alloy, Corrosion Resistant
Passive conductive cooling (no moving parts)
Mechanical (W x H x L): 384 x 173 x 358 mm (system unit)
181 x 162 x 342 mm (external battery unit)
Weight: < 9 kg (system unit), < 4.5 kg (external battery unit)

Environmental and physical specifications

Operating Temperature: -40 to 71 °C Ambient (normal operation without batteries)
Charge Temperature: 0 to 45 °C Ambient
Discharge Temperature: -20 to 65 °C Ambient
Storage Temperature: -40 to 85 °C (system unit without batteries)
0 to 40 °C (external battery unit)
Humidity: Up to 95% RH @ 40 °C, non-condensing
Vibration Random vibration up to 2 g (3–500 Hz)
Shock: Operating shock up to 10g, 15 ms
Dust/Moisture: IP64 (system unit), IP65 (external battery unit)
