M-Max VI PR7

Rugged Industrial Computer with Data Acquisition
  • Details
  • Specification
  • Complies with MIL-STD-810G, MIL‑STD‑461F and MIL-STD-704F specifications
  • Shock handling up to 40g, Vibration up to 2.5g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +70 °C

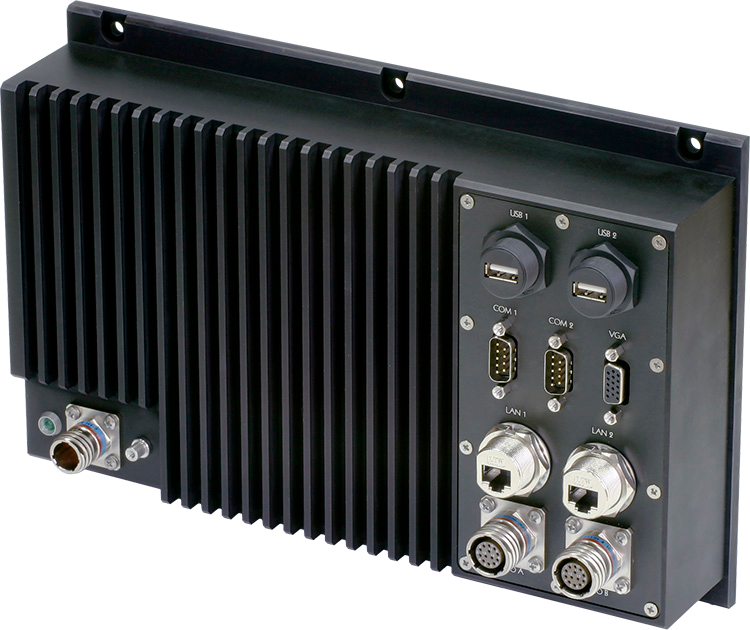

The M-Max® VI PR7 is a Quad Core rugged industrial computer with data acquisition features for tough environments. The enclosure is designed according to the VITA 75 footprint and can be mounted on different vehicle types. The lightweight compact sealed case with fanless heat dissipation resists contamination and humidity. The system has been certified to comply with MIL‑STD‑810G, MIL‑STD‑461F and airborne MIL‑STD‑704F. The system is expandable by one mPCIe module and one PC/104 Plus board.

MicroMax, as a manufacturer of industrial computers, takes a customized approach to each client. Our engineering group can design M-Max® systems to fit customer-specific technical requirements.

The system was previously known as M-Max® 771 PR7.

Technical specifications
CPU: Intel Quad Core E3845 (1.91 GHz, 2 MB L2 cache) or
Intel Dual Core E3826 (1.46 GHz, 1 MB L2 cache)
Chipset: SOC
RAM: 2 or 4* GB 64-bit DDR3 SDRAM, soldered
* 4 GB available only for E3845 CPU
Data storage: SSD up to 1 TB
Video: Intel HD Graphics integrated controller, up to 2560 x 1600 @ 60 Hz
Connectors: 1x D38999 (Power)
2x D38999 (DIO)
2x DB-9 (Serial)
2x RJ-45 (Ethernet)
2x USB-A (USB)
1x DB-15 (VGA)
All connectors are IP67
LAN: 2x 10/100/1000 Base-T
Serial ports: 2x RS-232
USB: 2x USB 2.0
Data Acquisition: 16x digital I/O lines with programmable direction
Optional: 16x 16-bit analog inputs, 250 KHz max sample rate; 4x 16-bit analog outputs; 6x additional DIO lines
Mouse and keyboard: USB
Operating system: Linux or Windows
Power: +10 to +36 V DC (isolated) or
+18 to +75 V DC (isolated)
Complies with MIL-STD-704F
AC adapter ~100 to 240 V (optional)
Power Consumption: 15 W / 11 W
Special features: Watchdog timer
Indication: Power ON indicator
Enclosure: Aluminum enclosure
Passive cooling system (no fans)
Mechanical (W x H x L): 284.48 x 57.8 x 188 mm
VITA 75 footprint (8 x 14 VU)
(without end caps and connectors)

Environmental and physical specifications

Operating Temperature: -40 to +65 °C
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g (3–500 Hz)
Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14)
Shock: Maximum peak shock acceleration up to 40g (11 ms)
Complies with MIL-STD-810G (Method 516.6, Procedure V)
Dust/Moisture: IP66
