M-Max 810 EP/MMS

High Performance Rugged ATR-System
  • Details
  • Specification
  • High performance Intel Core i7 CPU based
  • Shock up to 40 g, vibration up to 2,5 g
  • IP66 rated
  • Operating temperature from -40 to +55 °C

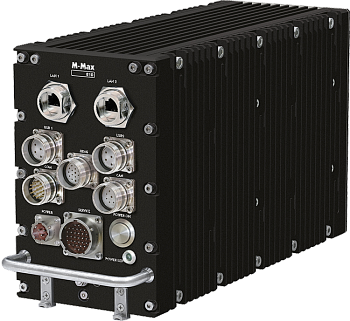

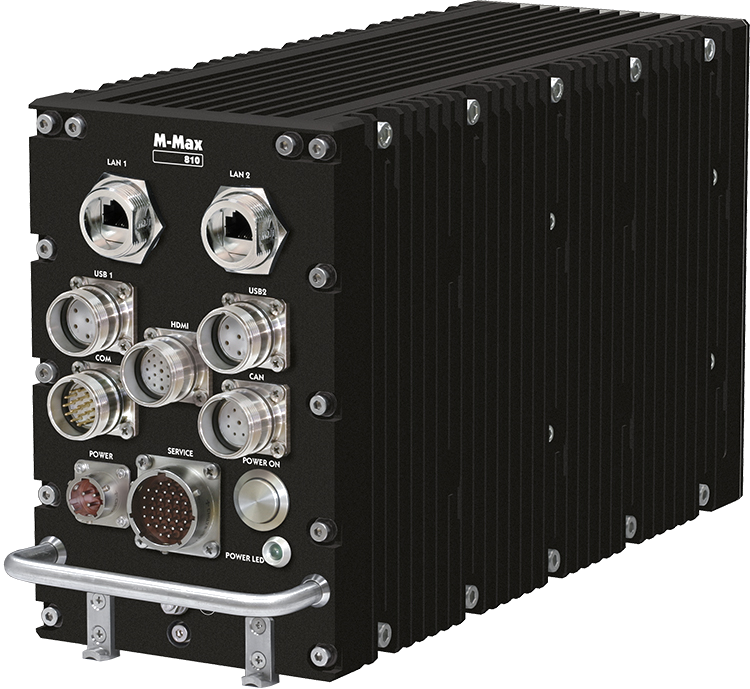

M-Max 810 EP/MMS is a rugged industrial computer with the highest performance available at the moment for systems with passive cooling system.
The computer is developed to provide reliable operation in harsh environments for critical applications. The fully-ruggedized ATR-type aluminum chassis is fanless and uses natural convection and conduction cooling in accordance with MIL-STD-810 standards.
This unique fully sealed fanless ATR enclosure is especially designed to house PC/104 form-factor boards. Providing shock and vibration protection, the Max 810 EP/MMS can operate under extreme temperatures (-40..+55 °C), dust, and humidity.
Delivering excellent performance thanks to Intel Core i7 CPU (2.1-3.0 GHz), it also features excellent 2D and 3D graphics capabilities via VGA and HDMI interfaces. Storage system consists of industrial SSDs with RAID functionality.
MicroMax, as a manufacturer of industrial computers, takes a customized approach to each client and is able to develop and produce even one-off systems.

Technical specifications
CPU Intel Core i7-2715QE (2,1-3,0 GHz, 6 MB L2 cache, FSB 1066 MHz)
Chipset QM67
RAM 2 GB DDR3 533 MHz (on board) Expandable up to 8 GB on order
Data storage SSD up to 1 TB
Optional 2x SSD as hardware RAID0/1
Video Integrated controller:
Intel HD Graphics 3000 with AVX
Up to 512 MB dedicated memory
Optional: AMD Radeon E6760 with 1GB DDR5, up to 4 displays simultaneously
Connectors 1x SNC28-3 (Power)
2x LTW (Ethernet)
1x SNC-28-32 (VGA, 2x USB 2.0, RS-232)
2x Harting Han 23R (USB)
1x Harting Han 23R (RS-232)
1x Harting Han 23R (2x CAN)
1x Harting Han 23R (HDMI 1.2)
All connectors are IP66 or higher
LAN 2x 10/100/1000 Base-T
Serial ports 2x RS-232
USB 4x USB 2.0 (optionally up to 8x)
Keyboard and mouse USB
Special features Watchdog timer
Power +10 to +33 V DC (isolated) AC adapter ~100 to 240 V (optional)
Power Consumption 75 W
Indication Power ON & Failure indicators
Controls Power ON button Enclosure:    Aluminum enclosure Passive cooling system (no fans) Dimensions (W x H x L):     124 x 198 x 358 mm

Environmental and physical specifications

Dust/Moisture: IP66
Operating Temperature -40 to +55 °C,
Complies with MIL-STD-810G (High temp. method 501.5, A1;
Low temp. method 502.5, C1, Expandable to C2/C3)
Humidity Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2,5g
Complies with MIL-STD-810G (Method 514.6 for Ground vehicles and Aircraft)
Shock Maximum peak shock acceleration up to 40g
Complies with MIL-STD-810G (Method 516.6 for Ground equipment and Aircraft)
