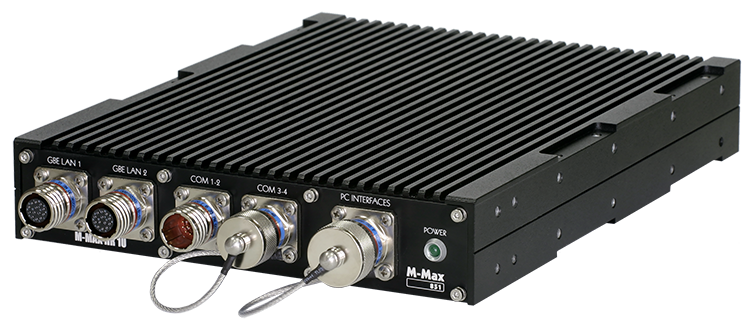

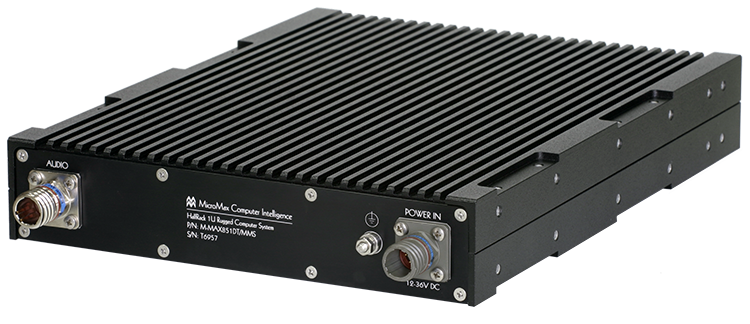

The M-Max HR 1U DT is a high-performance compact rugged computer based on Intel's Dual Core i7 CPU.
The fully-ruggedized fanless 19/2"-type aluminum chassis uses natural convection and conduction cooling in accordance with MIL-STD-810 standards.
The versatile mechanical design of the enclosure allows combining several systems into one assembly either side by side or by stacking, as well as mounting on a flat surface or into a 19″ rack.
COTS technology components allow configuring the system to comply with a wide variety of airborne, marine and ground vehicle applications.
The M-Max HR 1U DT is based on our M-Max HR 1U Systems Family.
The system was previously known as M-Max 851 DT.
|CPU options:||i7-6600U 2.6 GHz 2 Cores / 4 Threads|
|RAM (min/max):||4 (soldered)/20 GB|
|GPU options:||HD 520 0.3–1.0 GHz|
|SSD options:||mSATA3 + 2x SATA3 8 GB (SLC)|
|Video options:||VGA + HDMI|
|Audio options:||2x IN + 2x OUT + 1x Mic|
|Mouse and keyboard:||USB|
|Operating system:||Linux or Windows|
|Power:||+12 to +36 V DC (isolated). AC adapter ~100 to 240 V (optional)|
|Power consumption:||21 W|
|Indication:||Power ON indicator|
Passive cooling system (no fans)
|Dimensions (W x H x L):||
8.66 x1.7 x 11.02 in (220 х 44 х 280 mm)
(without end caps and connectors)
Environmental and physical specifications for typical system
|Operating Temperature:||-40 to +70°C (-40°F to +158°F)|
|Humidity:||Operating: 5 to 95 % at +25°C, non-condensing|
|Vibration:||Operating acceleration amplitude up to 2.5g|
|Shock:||Maximum peak shock acceleration up to 40g|
