M-Max VI EP4

High performance Rugged Industrial Computer
  • Details
  • Specification
  • Complies with MIL-STD-704F and MIL-STD-810G specifications
  • Shock handling up to 40g, Vibration up to 2.5g
  • IP66 rated dust and moisture protection
  • Operating temperature from -40 to +60 °C

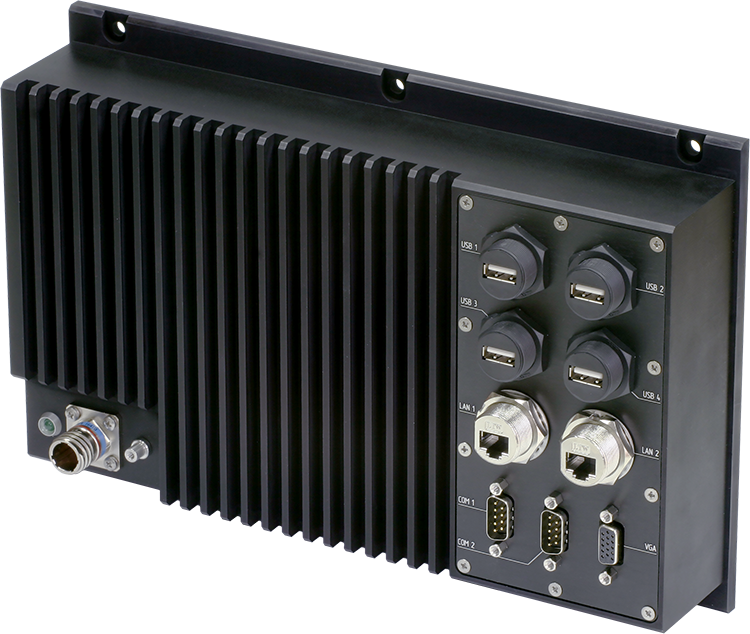

Rugged high performance computer for tough environments. The M-Max® VI EP4 enclosure is designed according to the VITA 75 footprint and can be mounted on different vehicle types. Lightweight compact sealed case with patented fanless heat dissipation resists contamination and humidity. Providing shock and vibration protection, the M-Max® VI EP4 can operate under extreme temperatures (-40 to +60 °C). Computing power is in the high-end desktop class. The embedded power supply complies with MIL-STD-704F specification.

MicroMax, as a manufacturer of industrial computers, takes a customized approach to each client. Our engineering group can design M-Max® systems to fit customer-specific technical requirements.

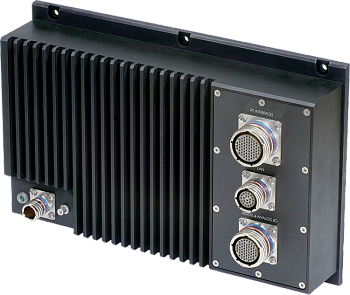

The system was previously known as M-Max® 871 EP4.

Technical specifications
CPU: 8th Intel Core i5-8400H processor at 2.5/4.2GHz
Chipset: QM370
RAM: Up to 48GB Dual Channel DDR4 at 2133/2400MHz
Data storage: SSD up to 1 TB
Video: Intel HD 530 integrated controller, supports up to 2 displays with resolution up to 4096 x 2304 @ 60 Hz (4K UHD)
Connectors: 1x D38999 (Power)
2x DB-9 (Serial)
2x RJ-45 (Ethernet)
4x USB-A (USB)
1x HDMI
All connectors are IP67
LAN: 2x 10/100/1000 Base-T (Intel MAC/PHY: i219LM/V)
Serial ports: 2x RS-232
USB: 4x USB 2.0
Mouse and keyboard: USB
Operating system: Linux or Windows
Power: +10 to +36 V DC (isolated) or
+18 to +75 V DC (isolated)
Complies with MIL-STD-704F
AC adapter ~100 to 240 V (optional)
Power Consumption: 55 W
Special features: Watchdog timer
Indication: Power ON indicator
Enclosure: Aluminum enclosure
Passive cooling system (no fans)
Mechanical (W x H x L): 284.48 x 57.8 x 188 mm
VITA 75 footprint (8 x 14 VU)
(without end caps and connectors)

Environmental and physical specifications

Operating Temperature: -20 to +55 °C
-40 to +60 °C (option)
Complies with MIL-STD-810G
(High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Humidity: Operating: 5 to 95 % at +25 °C, non-condensing
Vibration Operating acceleration amplitude up to 2.5g (3–500 Hz)
Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14)
Shock: Maximum peak shock acceleration up to 40g (11 ms)
Complies with MIL-STD-810G (Method 516.6, Procedure V)
Dust/Moisture: IP65 – IP66
