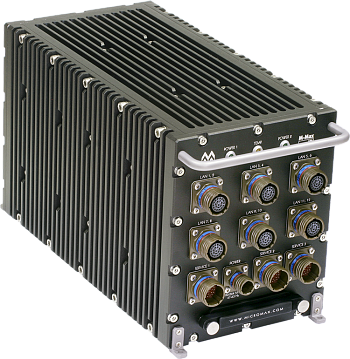

M-Max ATR CU
High Performance Rugged ATR System with Extended GPU Performance
Vendor:MicroMax Computer Intelligence
- Details
- Specification
- High performance Intel Xeon E3-1505L V5, 2.0-2.8 GHz
- Nvidia GeForce GTX 1050Ti graphics controller
- IP66 rated dust and moisture protection
- Shock handling up to 40g, Vibration up to 2.5g
- Operating Temperature: −40 to +50 °C
The M-Max ATR CU high-performance rugged industrial computer provides reliable operation in tough environments. The fully-ruggedized ATR-type aluminum chassis is fanless and uses natural convection and conduction cooling to comply with MIL-STD-810 standards. COTS technology components allow configuring the M-Max ATR CU to comply with a wide variety of airborne, marine and ground vehicle applications.
Delivering outstanding performance comparable to high-end desktop systems, it also features extended graphics capabilities, providing up to 6x HDMI outputs.
The system was previously known as M-Max 910 CU.
| Technical specifications | |
| CPU: | Intel Xeon E3-1505L V5 (2.0–2.8 GHz, 8 MB SmartCache) |
| Chipset: | Intel CM230 Series |
| RAM: | 32 GB DDR4 2133 MHz |
| Data storage: | SSD up to 1TB, Optional 2x SSD as hardware RAID 0/1 |
| Video: | GeForce GTX 1050Ti: 1.392 GHz, 768 CUDA cores, 4 GB GDDR5 memory, supports up to 6 displays |
| Connectors: |
1x SNC28-3 (Power) 2x LTW (Ethernet) 1x SNC-28-32 (HDMI, 2x USB 2.0, RS-232) 5x Harting Han 23R (HDMI 2.0) All connectors are IP66 or higher |
| LAN: | 2x 10/100/1000 Base-T |
| Serial ports: | 2x RS-232; 2x RS-485 |
| USB: | 3x USB 3.0 |
| Mouse and keyboard: | USB |
| Operating system: | Linux or Windows |
| Power: | +10 to +33 V DC (isolated). AC adapter ~100 to 240 V (optional) |
| Power Consumption: | 90 W |
| Special features: | Watchdog timer |
| Indication: | Power ON indicator |
| Controls: | Power ON button |
| Enclosure: |
Aluminum enclosure, Passive cooling system (no fans) |
| Mechanical (W x H x L): |
124 x 198 x 358 mm (without end caps and connectors) |
|
Environmental and physical specifications for typical system |
|
|---|---|
| Operating Temperature: |
-40 to +50 °C, Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II) |
| Humidity: | Operating: 5 to 95 % at +25 °C, non-condensing |
| Vibration: |
Operating acceleration amplitude up to 2.5g (5-500 Hz) Complies with MIL-STD-810G (Method 514.6, Procedure I, Category 14) |
| Shock: |
Maximum peak shock acceleration up to 40g (11 ms) Complies with MIL-STD-810G (Method 516.6, Procedure V) |
| Dust/Moisture: | IP66 |
