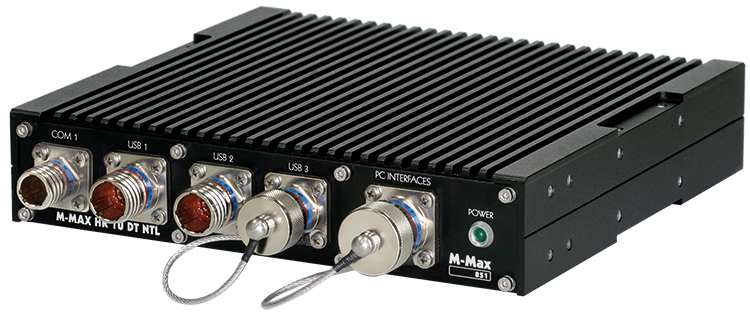

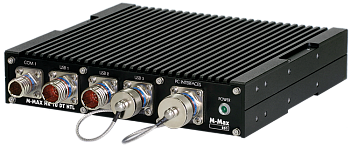

M-Max HR 1U DT NTL

Rugged 19/2” Rackmount Conduction-Cooled Computer System
  • Details
  • Specification
  • High performance Intel i7-6600U, 2.6 GHz
  • Total weight is less than 2 kg
  • Power consumption: 26 W
  • Isolated 28VDC input compliant with MIL-STD-704F, MIL-STD-461F
  • IP66-rated dust and moisture protection
  • Shock handling up to 40g, Vibration up to 2.5g
  • Operating Temperature: -40°C to +70°C (-40°F to +158°F)

The M-Max HR 1U DT NTL is a compact high-performance rugged computer based on Dual Core i7 CPU. The fully‑ruggedized 19/2"-type aluminum chassis is fanless and uses natural convection and conduction cooling to comply with MIL-STD-810 standards.

Versatile mechanical design of the enclosure allows combining several systems into one assembly either side by side or by stacking, mount on a flat surface or into a 19″ rack using appropriate mounting parts. Power and system I/O signals are brought out through lightweight, high-density MIL-DTL-38999 connectors.

Technical specifications
CPU: Intel Dual Core i7-6600U CPU 2.6GHz
Chipset: Integrated onto processor package
RAM: 8GB DDR4 RAM
Data storage: 1x 2TB 2.5” SATA3 MLC SSD Industrial Grade
Video: Analog VGA video output (via Service Connector)
Connectors: 8x Circular MIL-DTL-38999 (7x with metal caps)
LAN: 2x Gigabit Ethernet 10 / 100 / 1000 Mbps ports
Serial ports: 1x RS-232
USB: 3x USB 3.0 ports
2x USB 2.0 ports (via Service Connector)
Operating system: Windows 10 64-bit
Power: 28V DC (12V - 36V DC, Isolated) power supply
compliant with MIL-STD-704F, MIL-STD-461F
Power consumption: 26 W
Indication: 1x for ‘Power In’ (Green)
Enclosure: Aluminum enclosure,
Passive cooling system (no fans)
Dimensions (W x D x H): 220 x 265 x 44 mm (8.66 x 10.43 x 1.73 in)
(with end caps and connectors)
Weight: < 2 Kg (<4,41 lbs)

Environmental and physical specifications for typical system

Dust/Moisture: IP66
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
Humidity: Operating: 5 to 95 % at +25°C, non-condensing
Vibration: Operating acceleration amplitude up to 2.5g (3–500 Hz)
Complies with MIL-STD-810G (Method 514.6, Category 14, 20)
Shock: Maximum peak shock acceleration up to 20g (23 ms) TPS 3 axis
Complies with MIL-STD-810G (Method 516.6, Procedure I)

Maximum peak shock acceleration up to 40g (11 ms) TPS 3 axis
Complies with MIL-STD-810G (Method 516.6, Procedure V)
Altitude: 10000 m (30000 ft) (max.)
