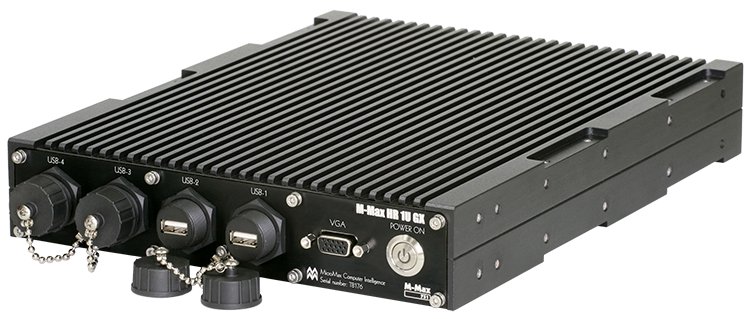

M-Max HR 1U GX

Rugged 19/2” Rackmount Conduction-Cooled Low-Cost Computer System
  • Details
  • Specification
  • Intel Celeron N3160
  • RAM: up to 8 GB
  • Power consumption: doesn’t exceed 36 W
  • Operating temperature: -20 to +60 °C (optionally from -40 to +60 °C)

The M-Max® HR 1U GX is a high-performance compact rugged low-cost computer based on Intel Celeron CPU. The computer expands our M-Max® HR 1U Systems Family.

The fully-ruggedized fanless 19/2"-type aluminum chassis uses natural convection and conduction cooling to comply with MIL-STD-810 standards.

The versatile mechanical design of the enclosure allows combining several systems into one assembly either side by side or by stacking, as well as mounting on a flat surface or into a 19″ rack.

COTS technology components allow configuring the system to comply with a wide variety of airborne, marine and ground vehicle applications.

Technical specifications:
CPU: Intel Celeron N3160 (1.6-2.24 GHz, 4 cores, 4 threads)
Video: Intel HD Graphics (320–640 MHz)
RAM: Up to 8 GB DDR3L-1600 (2x SO-DIMM)
Data storage: 1x mSATA
I/O interfaces: 1x VGA,
2x Gigabit Ethernet,
4x USB 2.0,
4x RS-232,
2x RS-232/422/485,
16x GPIO,
1x Mic In,
1x Audio Out
Expansion slots: 1x half-size MiniPCIe
Operating system: Linux or Windows 10 64-bit
Power: 10V - 36V DC, isolated or 20V – 70V DC (isolated)
Power consumption: Doesn’t exceed 36 W
Connectors: Industrial grade, IP67-rated
Controls and indicators: Power ON button with indicator
Enclosure: Aluminum enclosure, Passive cooling system (no fans)
Mechanical (W x D x H): 220 x 280 x 44 mm (8.66 x 11.02 x 1.73 in) (without end caps and connectors)
Weight: Approximately 3 kg (6.6 lbs) (without end caps and connectors)

Environmental and physical specifications:

Dust/Moisture: IP66
Operating temperature: Standard: -20 to +60 °C
Extended: -40 to +60 °C (option)
Operating humidity: 5 to 98 % at +25 °C, non-condensing
Vibration: Operating acceleration amplitude up to 2g (3–500 Hz)
Shock: Maximum peak shock acceleration up to 6g
