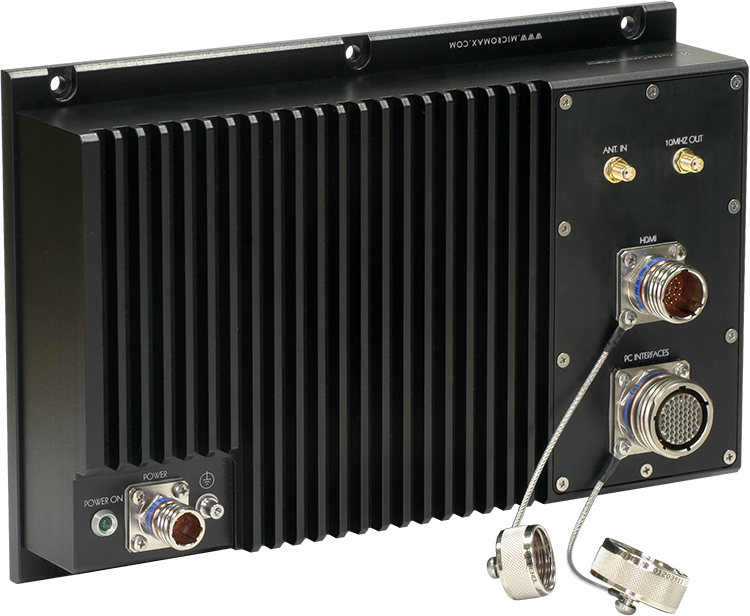

Designed in accordance with the VITA 75 footprint, the M-Max® VI 1 DS is a fully sealed rugged computer system with passive cooling, providing reliable operation in tough environments including transportation, agriculture, mining and processing.
Its machine-worked aluminum chassis is especially designed for the most challenging environments.
The system’s GPSS module supports GPS/Glonass/Galileo/BeiDou/QZSS.
The VITA 75 compliant M-Max® VI 1 DS system is guaranteed to operate in −40 to +60°C.
The embedded power supply complies with MIL-STD-704F/461F specifications.
|CPU||Intel Core i7-8665U @ 2133 MHz|
|Cores / Threads||4 / 8|
|GPU||Intel UHD Graphics for 8th Generation Intel Processors|
|Data storage||960 GB, Standard SATA, m.2 2242 socket, PCIe|
|Video||2 HDMI /1x LVDS|
|Audio||HDA audio to analog audio converter|
|DIO||8 programmable direction digital I/O|
|LAN||2x Gigabit Ethernet ports 10/100/1000 Mbps|
|Serial ports||4x multiprotocol RS-232/422/485 through SP336|
|USB||4x USB 2.0, 2x USB 3.0|
|GNSS support||GPS / Glonass / Galileo / BeiDou / QZSS|
|Operating system||Windows 10 64-bit and Ubuntu Linux 64-bit|
1x D38999/20FA98PN (Power);
1x D38999/20FC35PN (1x HDMI)
1x D38999/20FE35SN (1x USB 3.0, 1x USB 2.0, 2x RS-232, 1x RS-422, 2x Gigabit Ethernet, 1PPS)
2x SMA connectors (1x GNSS Antenna / 1x 10 MHz output)
All connectors are IP67
28V DC (12V - 36V DC, Isolated) power supply
compliant with MIL-STD-704F, MIL-STD-461F
|Power Consumption||60 W|
|Indication||1 x for ‘Power In’ (Green)|
|Enclosure||Aluminum enclosure, Passive cooling system (no fans)|
|Mechanical (W x H x L)||
284.48 x 57.8 x 188 mm
(without connectors and endcaps)
|Weight||About 2.5 Kg|
|MTBF||More than 60’000 hours|
Environmental and physical specifications
|Operating / Storage Temperature||
-40 to +60 °C / -40 to +85 °C,
Complies with MIL-STD-810G (High temp. method 501.5, Low temp. method 502.5, Procedure I, II)
|Humidity||Operating: 5 to 95 % at +25 °C, non-condensing|
Operating acceleration amplitude up to 2.5g (3–500 Hz)
Complies with MIL-STD-810G (Method 514.6, Category 14, 20)
Maximum peak shock acceleration up to 40g (11 ms) TPS 3 axis
Complies with MIL-STD-810G (Method 516.6, Procedure V)
