Fanless Embedded Computer
  • Details
  • Specification
  • Order information
  • 6th Gen Intel® Core™ i7/i5/i3 Processors and QM170 chipset
  • Up to 32 GB DDR4 memory
  • Single-side I/O with two SATA drive bays for easy drive swapping
  • Rugged construction delivering fanless -20°C to 60°C operability (w/industrial SSD)

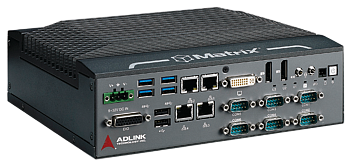

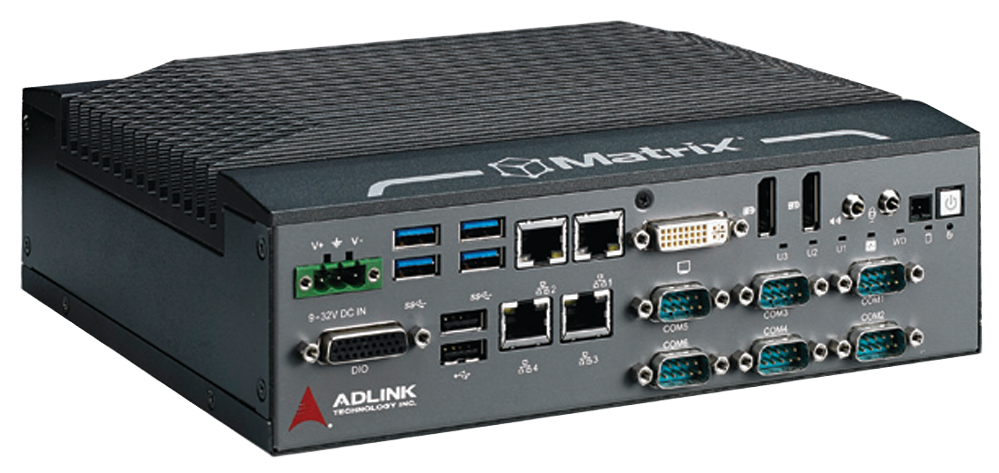

ADLINK's new Matrix MXE-5500 series of rugged quad‑core fanless computers features the latest generation of Intel® Core™ i7/i5/i3 processors, delivering outstanding performance with robust construction.

The MXE-5500 series accommodates rich I/O capabilities in a compact system size, with two DisplayPort, one DVI-I (supporting both DVI and VGA signals), four GbE by Intel network interface controllers, four each USB 2.0 and USB 3.0, eight isolated DI/O, and six COM ports, four of which are BIOS-configurable among RS-232/422 and 485. In addition, with dual 2.5" SATA drive bays and one CFast port, easy, versatile connection to a wide range of applications is easier than ever. Dual mini PCIe slots and USIM sockets empower the MXE-5500 as a communications hub for a variety of wireless connections, such as BT/WiFi and 3G.

Leveraging proprietary mechanical engineering, the MXE-5500 series continues to offer all the popular features of the popular Matrix E series, including cable-free construction, wide operating temperature ranges, and 5 Grms vibration resistance, having undergone, like all ADLINK Matrix devices, rigorous testing for operational verification.

Combining superior processor performance, wireless capability, and rich, scalable I/O in a compact and robust package, the ADLINK MXE-5500 is an ideal choice for a wide range of applications supporting intelligent transportation, in-vehicle multimedia & surveillance and factory automation applications.

Technical Specifications
Processor Intel Core i7-6820EQ (MXE-5501)
Intel Core i5-6440EQ (MXE-5502)
Intel Core i3-6100E (MXE-5503)
Memory DDR4 2133 4 GB (up to 32 GB)
Graphic Output 2x DisplayPort (4096 x 2304)
Ethernet 4x Intel® GbE ports
Serial Ports 6x COM (2x RS-232 + 4x RS-232/422/485)
USB 4x USB 2.0 + 4x USB 3.0
DIO Isolated 8 DI + 8 DO
Audio Mic-in / Line-out
Mini PCIe 2x PCIe mini card slot
USIM 2x USIM slot
WDT Watch Dog Timer support
SEMA SEMA support with BMC
DC Input 9-32VDC
AC Input Optional 160 W AC/DC adapter
SATA Storage 2x 2.5” SATA Drive Bays
CompactFlash 1x CFast socket
Internal Storage Slot 1x M.2 2280
Dimensions 230 (W) x 205 (D) x 90 (H) mm
Weight 4 kg (8.81 lbs)
Mounting Wall-mount kit

Environmental and physical specifications

Operating Temperature Standard: 0°C to 50°C
Extended option: -20°C to 60°C for MXE-5501;-20°C to 70°C for MXE-5502/5503 (w/Ind. SSD or CFast)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity approx. ~95% @40°C (non-condensing)
Vibration Operating 5Grms, 5-500 Hz, 3 axes w/ SSD
Operating 0.5Grms, 5-500 Hz, 3 axes w/ HDD
ESD Contact +/- 6KV, Air +/- 10KV
Shock Operating 100G, half sine 11 ms duration w/ SDD
Operating 20G, half sine 11ms w/ HDD
EMC CE & FCC Class A
Safety CE/LVD, UL[by CB]
Model Description
MXE-5501 Intel Core i7-6820EQ fanless embedded computer
MXE-5502 Intel Core i5-6440EQ fanless embedded computer
MXE-5503 Intel Core i3-6100E fanless embedded computer
