DB9-Power Inlet

Power injector with one female and one non‑connected male D-SUB9 connector
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Order information
  • Powering interfaces without internal power
  • Weight: 100g
  • A complementary 12 V, 1 A power supply is included
  • Operating temperature: -30 to +80°C

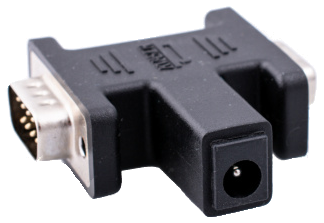

Kvaser DB9-Power Inlet is a power injector for CAN buses from a DC power jack into one female D-SUB9 connector. The Kvaser DB9-Power Inlet also has one unpowered male D-SUB9 connector for connecting to the CAN network. The Kvaser DB9-Power Inlet provides a simple and safe way to supply Kvaser interfaces on a development board, as well as powering interface devices without internal power, such as Kvaser’s Blackbird and Memorator series.

Major Features:

  • Acts as a power injector with one female and one non-connected male D-SUB9 connector
  • Connects to power supply using a standard 2.0 mm DC power connector.
  • A complementary 12 V, 1 A power supply is included

Model Description
73-30130-00973-8 Kvaser DB9-Power Inlet
