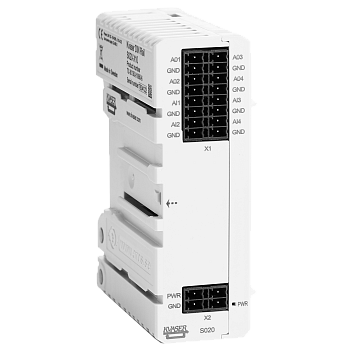

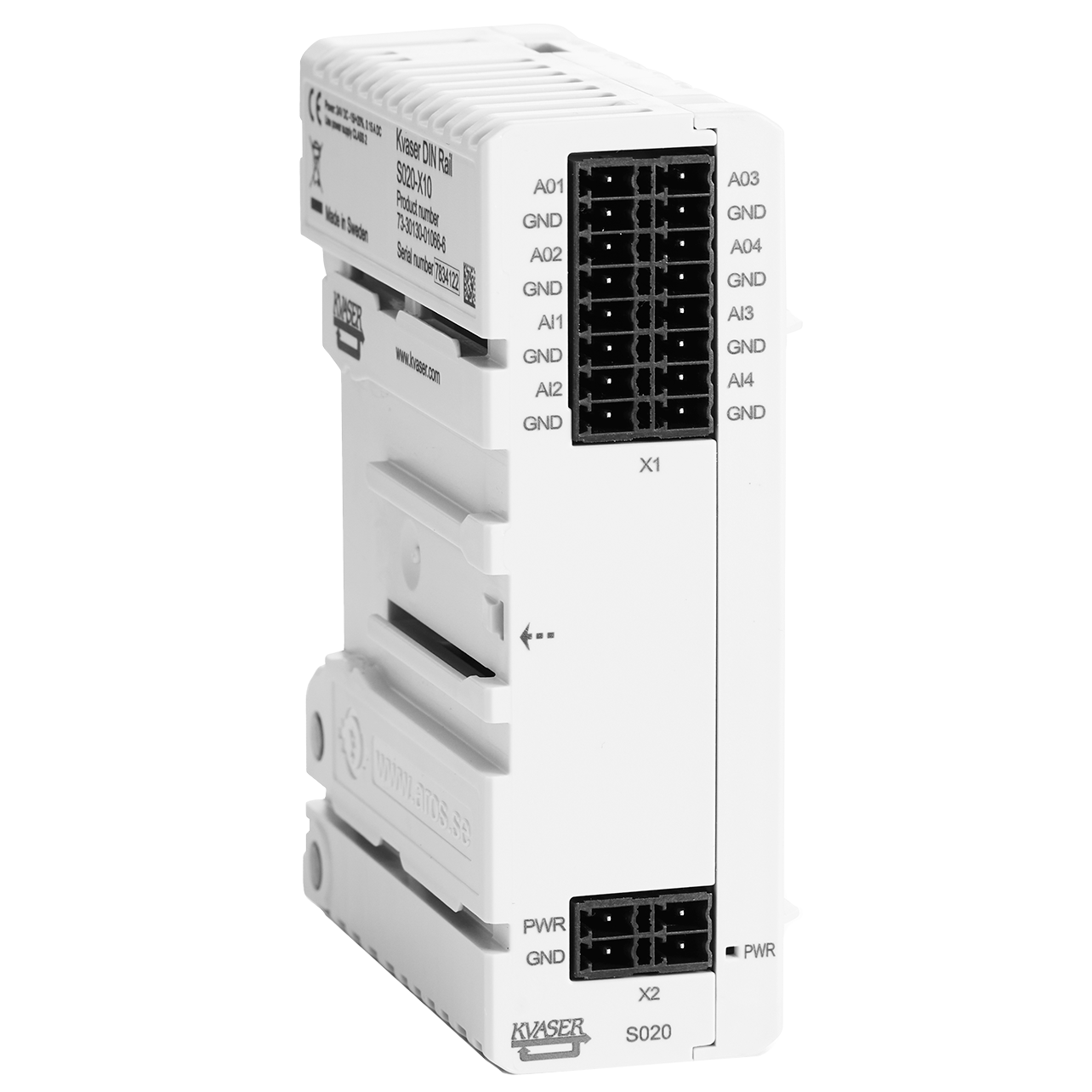

DIN Rail S020-X10 Analog add-on
Optional analog add-on module to the Kvaser DIN Rail SE400S-X10
Vendor:Kvaser AB
- Details
- Specification
- Order information
- 4 analog inputs and 4 analog outputs, controllable through the Kvaser DIN Rail SE400S-X10
- CLASS 2 rated input voltage of 24 VDC (-15%/+20%)
- IP20 rated, plus thermal, reverse-polarity and surge protection
- Smart clip system for easy mounting on DIN Rail, no tools needed

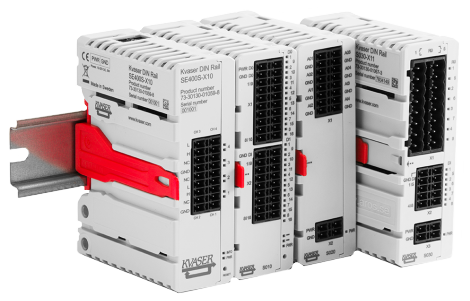

Kvaser DIN Rail S020-X10 Analog is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module*. With 4 analog inputs and 4 outputs, this IP20-rated module is thermal, reverse-polarity protected and surge power supply protected. The input voltage range is fixed (between 0 and 10V), and resolution is 12 bits. A power LED displays the state of the module.
*Please note: Add-on modules require a Kvaser DIN Rail SE400S-X10 to be able to work.
| Technical specifications | |
| I/O | 4 analog inputs and 4 analog outputs, controllable through the Kvaser DIN Rail SE400S-X10 |
| Power Supply Voltage | 24 VDC (-15%/+20%) |
| Input Current, 24 Process | 150 mA |
| Plug-in Current | < 2A @ 1 ms |
| Surge Protected Power Supply | Yes |
| Reversed Polarity Protected | Yes |
| Power Dissipation Typical | 2.1 W |
| Power Dissipation Max | 3.0 W |
| Transmission Medium | Internal Optical Serial Interface |
| Data Transfer Rate | 1.5 Mbits/s |
| UDP Message to Output | 2 ms |
| Input to UDP Transmission | 2 ms |
| Dimension of Single Module (W x D x H) | 33.3 x 75 x 101 mm |
| Weight | 95 g |
| Installation Position | Variable |
|
Environmental and physical specifications |
|
|---|---|
| Degree of Protection | IP20 |
| Model | Description |
| 73-30130-01066-6 | Kvaser DIN Rail S020-X10 Analog add-on |
