DIN Rail S030-X11 Relay add-on

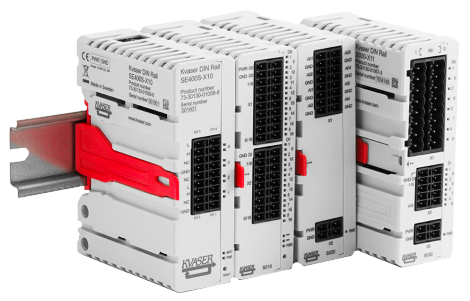

Optional relay add-on module to the Kvaser DIN Rail SE400S-X10
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • 8 relays and 8 digital inputs, controllable through the Kvaser DIN Rail SE400S-X10
  • CLASS 2 rated input voltage of 24 VDC (-15%/+20%)
  • IP20 rated, plus thermal, reverse-polarity and surge protection
  • Smart clip system for easy mounting on DIN Rail, no tools needed

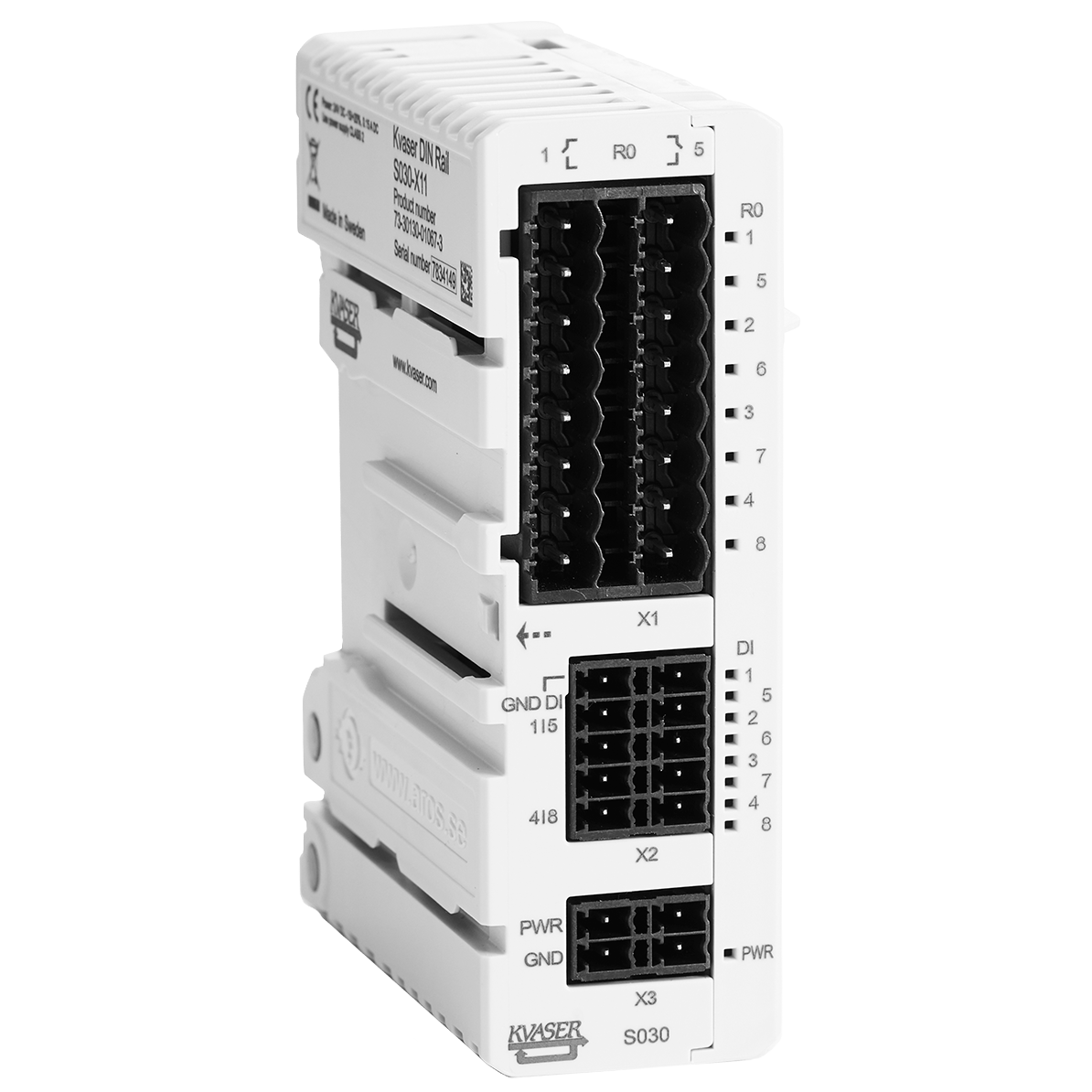

Kvaser DIN Rail S030-X11 Relay is an optional add-on module to the Kvaser DIN Rail SE400S-X10 base module* with 8 N.O. (Normally Open) relays and 8 digital inputs that can be used separately. This IP20-rated module is thermal, reverse-polarity protected and surge power supply protected. A power LED displays the state of the module, whilst there are separate LEDs for each of the digital inputs.

*Please note: Add-on modules require a Kvaser DIN Rail SE400S-X10 to be able to work.

Technical specifications
I/O 8 relays and 8 digital inputs, controllable through the Kvaser DIN Rail SE400S-X10
Power Supply Voltage 24 VDC (-15%/+20%)
Input Current, 24 Process 150 mA
Plug-in Current < 2A @ 1 ms
Surge Protected Power Supply Yes
Reversed Polarity Protected Yes
Power Dissipation Typical 2.5 W
Power Dissipation Max 4.3 W
Transmission Medium Internal Optical Serial Interface
Data Transfer Rate 1.5 Mbits/s
UDP Message to Output 0.5 ms
Input to UDP Transmission 0.5 ms
Dimension of Single Module (W x D x H) 33.3 x 75 x 101 mm
Weight 133 g
Installation Position Variable

Environmental and physical specifications

Degree of Protection IP20
Model Description
73-30130-01067-3 Kvaser DIN Rail S030-X11 Relay add-on
