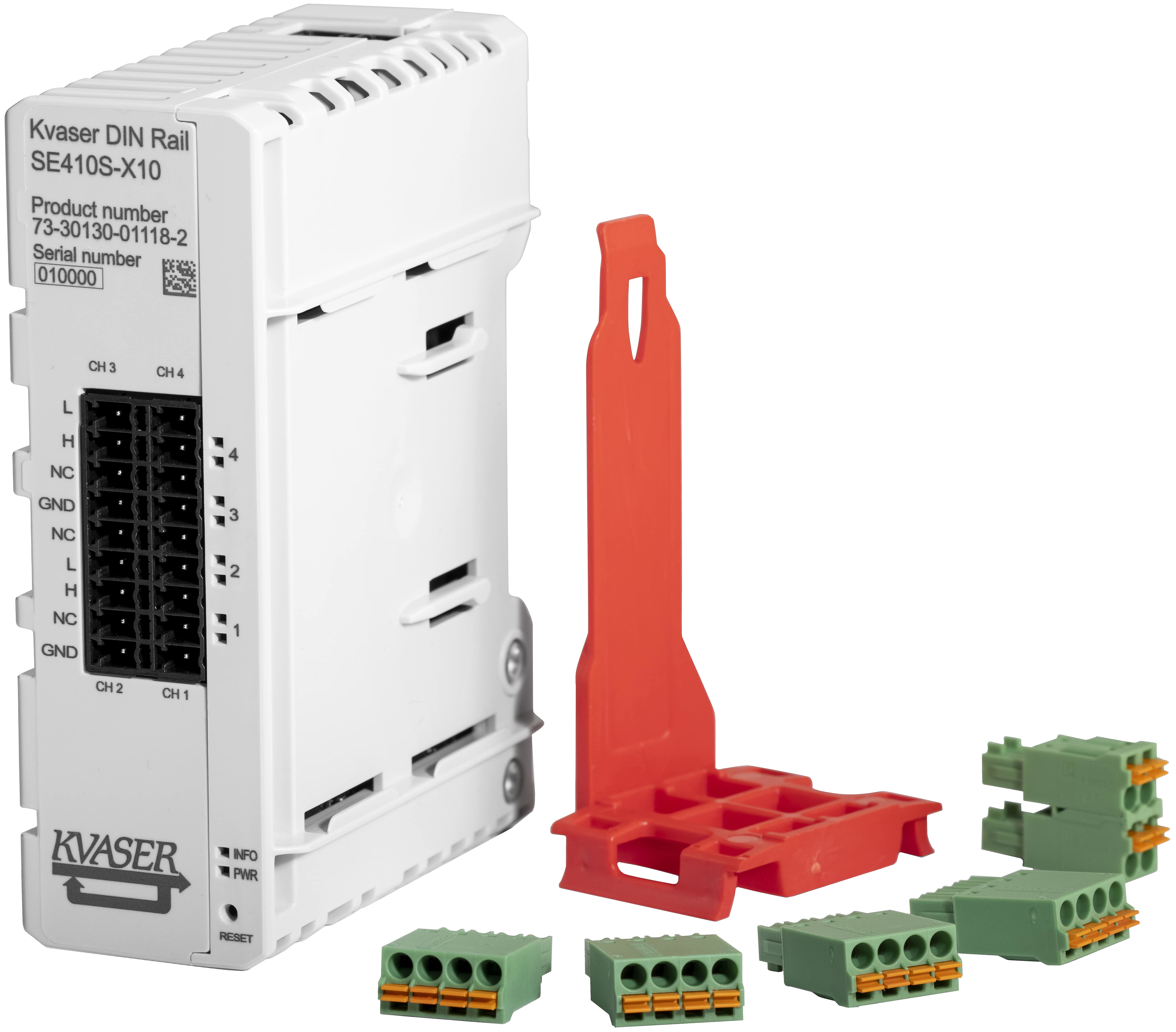

DIN Rail SE410S-X10
Ethernet to CAN/CAN FD interface for DIN Rail mounting
Vendor:Kvaser AB
- Details
- Specification
- Order information
- Channels: 4
- Bitrate: 50-1000 kbps
- CAN FD bitrate: up to 8 Mbit/s
- Operating temperature: +5 °C to +65 °C
Kvaser DIN Rail SE410S-X10 is a powerful Ethernet to CAN/CAN FD interface with support for Kvaser t programs. It has 4 CAN/CAN FD channels, support for I/O via add-on modules and 16GB flash storage. Kvaser DIN Rail SE410S-X10 acts as a master for the add-ons. The housing has a smart mounting clip that attaches to a DIN rail for easy installation.
The communication between the I/O modules and the Kvaser DIN Rail SE410S-X10 uses an optical bus, thus there is no need for cables in between. The I/O modules can be controlled either from Kvaser’s CANlib SDK (over Ethernet) or directly on the unit using Kvaser t programs. The Kvaser DIN Rail SE410S-X10 is compatible with applications that use Kvaser’s CANlib SDK.
| Technical specifications | |
| CAN Channels | 4 |
| CAN Bit Rate | 50 kbit/s to 1 Mbit/s |
| CAN FD Bit Rate | Up to 8 Mbit/s |
| CAN Transceivers | MCP2561FD |
| Time stamp resolution | 100 μs |
| Messages per second receive | 20000 msg/s |
| Messages per second sending | 20000 msg/s |
| Error frame detection | Yes |
| Error frame generation | Yes |
| Silent mode | Yes |
| Interfaces | Ethernet |
| Connectors | RJ45 |
| Galvanic isolation | Yes |
| Power consumption | Idle 2.0 W, load 3.2 W |
| OS | Win 7, Win 10, Win 8 |
| Dimensions | 36.3 x 75 x 101 mm |
| Weight | 120 g |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | +5 °C to +65 °C |
| Certificates | CE, RoHS |
| Model | Description |
| 73-30130-01118-2 | Kvaser DIN Rail SE410S-X10 |
