Memorator Pro 5xHS

High-performance CAN bus interface and standalone datalogger
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Channels: 5
  • Bitrate: 40-1000 kbps
  • Included card size: 16GB
  • Operating temperature: -40 to +85°C

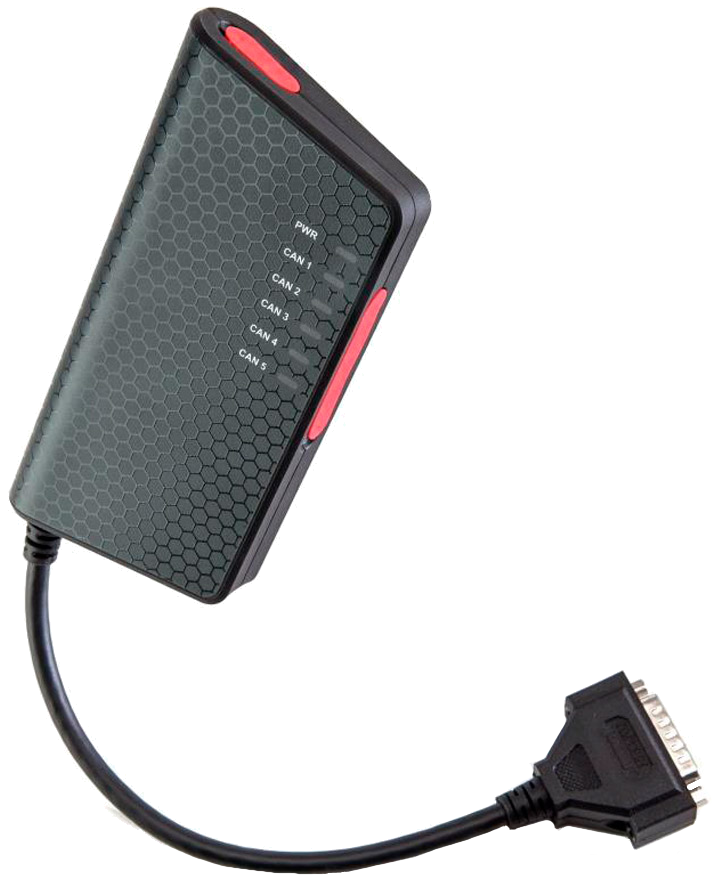

Kvaser Memorator Pro 5xHS is a five channel, high performance, CAN (controller area network) bus interface and standalone datalogger that allows users to monitor and collect data from up to five CAN channels using just one device. Standalone mode logs data to an SD card; interface mode connects to the PC via USB. This device supports CAN FD.

Configurable using Kvaser’s Memorator Config Tool, Memorator Professional 5xHS is also capable of running user-developed scripts, written in the Kvaser t programming language. Guidance in creating t programs is supplied.

Technical specifications
Channels 5
Bitrate 40-1000 kbps
Messages per second receive 20 000
Messages per second sending 20 000
Error counters reading Yes
Error frame generation Yes
Current consumption Up to 3W
Interface USB
Connector 26-pin HD D-SUB
Silent mode Yes
Sound No
Timestamp (µ) 1 µs
Galvanic isolation Yes
Included card size 16GB
Max card size 64+
OS Linux, Win 7, Win Vista, Win 10, Win 8
Material PA66
Length 170 mm
Height 68 mm
Weight 150 g

Environmental and physical specifications

Operating Temperature -40 to +85°C
Certificates CE, RoHS
Model Description
73-30130-00778-9 Kvaser Memorator Pro 5xHS
