U100-X3
Vendor:Kvaser AB
- Details
- Specification
- Order information
- Supports CAN FD, up to 8 Mbit/s
- Reinforced galvanic isolation
- IP67 rated housing
- Operating temperature: -40 to +85°C

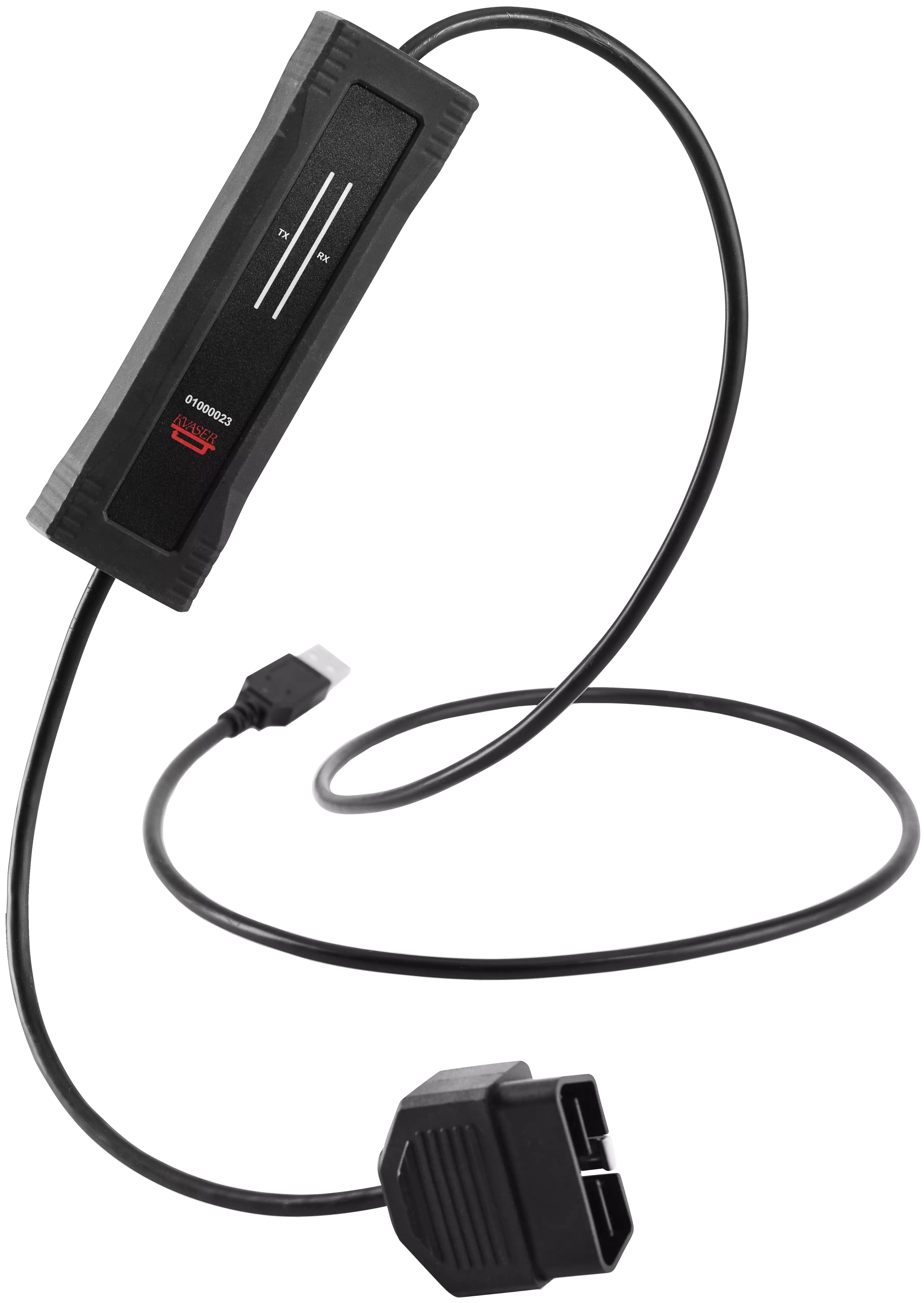

The Kvaser U100-X3 is a robust, galvanically-reinforced (Tested according EN 60335) single-channel CAN/CAN FD to USB interface with a 16-pin OBDII plug.
Signal and power isolated, the Kvaser U100 offers enhanced electrical protection, a vibration, shock and drop-proof housing and high-quality cabling that meets the needs of CAN system developers through to service technicians.
With an intelligent LED that displays bus loads and error frames, an industry-leading IP67 rating and an innovative connector system, the U100 has numerous stand-out features. Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet, this suits rugged and higher voltage applications in marine, industrial, construction, heavy-duty, agriculture and automotive, including electric vehicle markets.
The Kvaser U100 is also available with 9-pin D-SUB, J1939-13 Type II or M12 CAN connectors.
| Technical specifications | |
| Channels | 1 |
| CAN bit rate | 10 kbit/s to 1 Mbit/s |
| CAN FD bit rate | Up to 8Mbit/s |
| Messages Per Second Receive | 20000 mps |
| Messages Per Second Sending | 20000 mps |
| Timestamp resolution | 100 µs |
| Current consumption | Typical 250 mA |
| CAN Transceivers | ADM3055E |
| Interfaces | USB |
| Connectors | OBD-II /J1962 |
| Galvanic isolation | Reinforced Galvanic Isolation. (Tested according EN 60335-1:2012 paragraph 13, 5000VAC rms applied for 60 seconds) |
| Operating systems | Linux, Win 7, Win 10, Win 8 |
| Material | Glass fibre reinforced polyamide overmolded with TPE |
| Dimensions | 38 x 128 x 26 mm |
| Weight | 185 g |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40 to +85°C |
| Dust/moisture | IP67 rated housing |
| Certificates | CE, RoHS |
| Model | Description |
| 73-30130-01268-4 | Kvaser U100-X3 |
