USBcan Pro 2xHS v2

USB-CAN interface with CAN FD support
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Supports CAN FD
  • High-speed CAN connection up to 1 Mbit/s
  • Power is taken from the USB bus
  • Operating temperature -40 to 85°C

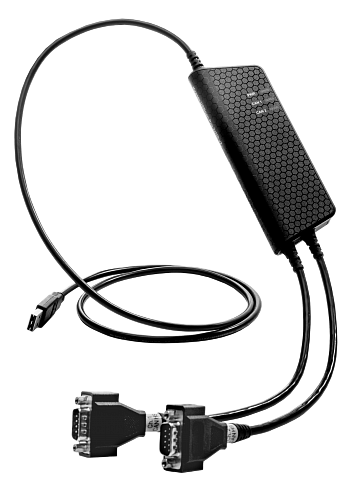

The USBcan Pro 2xHS v2 is a USB to dual channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device.

Feature List:

  • Supports CAN FD
  • Quick and easy plug-and-play installation
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Power is taken from the USB bus
  • Galvanic isolation
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC
  • Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware
  • Simultaneous operation of multiple devices
  • Documentation, software and drivers can be downloaded for free at
  • Units are shipped with Kvaser TRX, a lightweight development environment
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available
  • RP1210A Application Programming Interface available
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format

Technical specifications
Bitrate 50-1000 kbps
Channels 2
Interfaces USB
Connectors DSUB 9
Timestamp 1
Messages Per Second Receive 20000 mps
Messages Per Second Sending 20000 mps
Buffers On Board Buffer
Error Frame Generation Yes
Error Counters Reading Yes
Silent mode Yes
Sound No
OS Linux, Win Vista, Win 10, Win 8, Win 7, Win XP
Material PA66
Length 170 mm
Height 25 mm
Weight 150 g

Environmental and physical specifications

Operating Temperature -40 to 85 °C
Galvanic isolation Yes
Certifications CE, RoHS
Model Description
73-30130-00752-9 Kvaser USBcan Pro 2xHS v2
