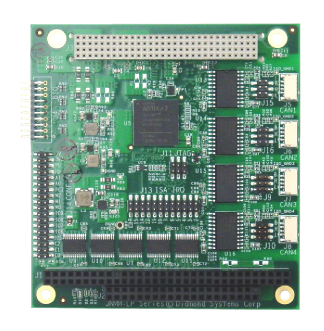

JANUS-MM-4LP-XT
PC/104-Plus Quad Isolated CAN Module with 24 Digital I/O
Vendor:Diamond Systems Corporation
- Details
- Specification
- Order information
- 2 or 4 CAN 2.0B ports
- Data rates up to 1Mbps
- 24 digital I/O lines
- Extremely rugged -40°C to +85°C operating temperature
High Performance CAN Functionality
The Janus-MM-4LP-XT I/O module offers two or four CANbus 2.0B ports with opto-isolation plus 24 digital I/O lines. Models are available in both the PC/104-Plus and PC/104 form factors. An FGPA core houses the CAN controller logic and provides data rates up to 1Mbps. Each port supports standard and extended frames as well as expanded TX and RX message queues for enhanced performance. Each port has its own combination isolator and transceiver chip. The Janus-MM-4LP-XT fits a wide variety of rugged and on-vehicle embedded serial I/O application needs.
Digital I/O
Janus-MM-4LP-XT offers 24 programmable digital I/O lines organized as three 8-bit digital I/O ports.
Rugged Design
Janus-MM-4LP-XT was designed with harsh applications in mind including latching connectors to further improve reliability. Extended temperature operation of −40°C to +85°C is tested and guaranteed. The module is compatible with MIL-STD-202G shock and vibration specifications.
Key Features
All four CAN ports on the Janus-MM-4LP-XT are driven from an FPGA-based CAN 2.0 bus controller core which provides full CAN2.0B functionality. Each port has an Analog Devices combination isolation and transceiver chip, independently isolating it from the host system and other ports to eliminate sensitivity to noise and ground shifts in the network.
The product has several jumper configurable options including CAN termination and bias. The digital I/O logic level and pull-up / pull-down resistors are also jumper configurable.
For additional ruggedization, zero ohm jumper-bypass resistors can be installed in any configuration.
Software Support
Janus-MM-4LP-XT comes with a basic CAN driver for Windows 7, XP and Linux 2.6. The driver supports dual-independent and dual-redundant modes.
The Janus-MM-4LP-XT I/O module offers two or four CANbus 2.0B ports with opto-isolation plus 24 digital I/O lines. Models are available in both the PC/104-Plus and PC/104 form factors. An FGPA core houses the CAN controller logic and provides data rates up to 1Mbps. Each port supports standard and extended frames as well as expanded TX and RX message queues for enhanced performance. Each port has its own combination isolator and transceiver chip. The Janus-MM-4LP-XT fits a wide variety of rugged and on-vehicle embedded serial I/O application needs.
Digital I/O
Janus-MM-4LP-XT offers 24 programmable digital I/O lines organized as three 8-bit digital I/O ports.
Rugged Design
Janus-MM-4LP-XT was designed with harsh applications in mind including latching connectors to further improve reliability. Extended temperature operation of −40°C to +85°C is tested and guaranteed. The module is compatible with MIL-STD-202G shock and vibration specifications.
Key Features
All four CAN ports on the Janus-MM-4LP-XT are driven from an FPGA-based CAN 2.0 bus controller core which provides full CAN2.0B functionality. Each port has an Analog Devices combination isolation and transceiver chip, independently isolating it from the host system and other ports to eliminate sensitivity to noise and ground shifts in the network.
The product has several jumper configurable options including CAN termination and bias. The digital I/O logic level and pull-up / pull-down resistors are also jumper configurable.
For additional ruggedization, zero ohm jumper-bypass resistors can be installed in any configuration.
Software Support
Janus-MM-4LP-XT comes with a basic CAN driver for Windows 7, XP and Linux 2.6. The driver supports dual-independent and dual-redundant modes.
| Technical specifications | |
| Number of CAN ports | 4 CANbus 2.0B |
| Data rates | Up to 1Mbps |
| Controller | FPGA based |
| Transceiver | ADM3053 isolation + transceiver |
| Isolation | 500V port-to-port and port-to-host |
| Frames | Standard 11-bit identifier
Extended 29-bit identifier |
| Message queues | Expanded TX and RX message queues |
| Termination | Jumper selectable |
| Bias | Jumper selectable |
| Digital I/O | 24 programmable digital I/O lines arranged in 3 8-bit ports |
| Logic levels | 3.3V or 5V, jumper selectable |
| Pull-up/pull-down | Jumper selectable |
| Direction control | Software programmable |
| Host interface | PCI or ISA, self selecting |
| Connectors | Latching connectors for increased ruggedness |
| Input power | +5VDC +/-5% |
| OS support | Windows Embedded Standard 7and XP
Linux 2.6.16, 2.6.31 and 2.6.32 |
| Form factor | PC/104-Plus 3.55” x 3.775” (90mm x 96mm) |
| Weight | 2.5oz (71g) |
| Environmental and physical specifications | |
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Shock | MIL-STD-202G compatible |
| Vibration | MIL-STD-202G compatible |
| RoHS | Compliant |
| Model | Description |
| JNMM‑4LP‑XT | Quad isolated CAN port PC/104-Plus Module with 24 Digital I/O |
| JNMM‑2LP‑XT | Dual isolated CAN port PC/104-Plus Module with 24 Digital I/O (available as MOQ only) |
| JNMM-4L-XT | Quad isolated CAN port PC/104 Module with 24 Digital I/O |
| JNMM‑2L‑XT | Dual isolated CAN port PC/104 Module with 24 Digital I/O (available as MOQ only) |
| CK‑JNMM4LP | Cable Kit,Janus-MM-4LP |
| CK‑JNMM2LP | Cable Kit, Janus-MM-2LP Dual Port CAN PC/104 Module |
| 6981164 | IDC20FxIDC20F, 2mm, 12" Digital I/O cable |
| 6981182 | CANbus 2.0 cable |
