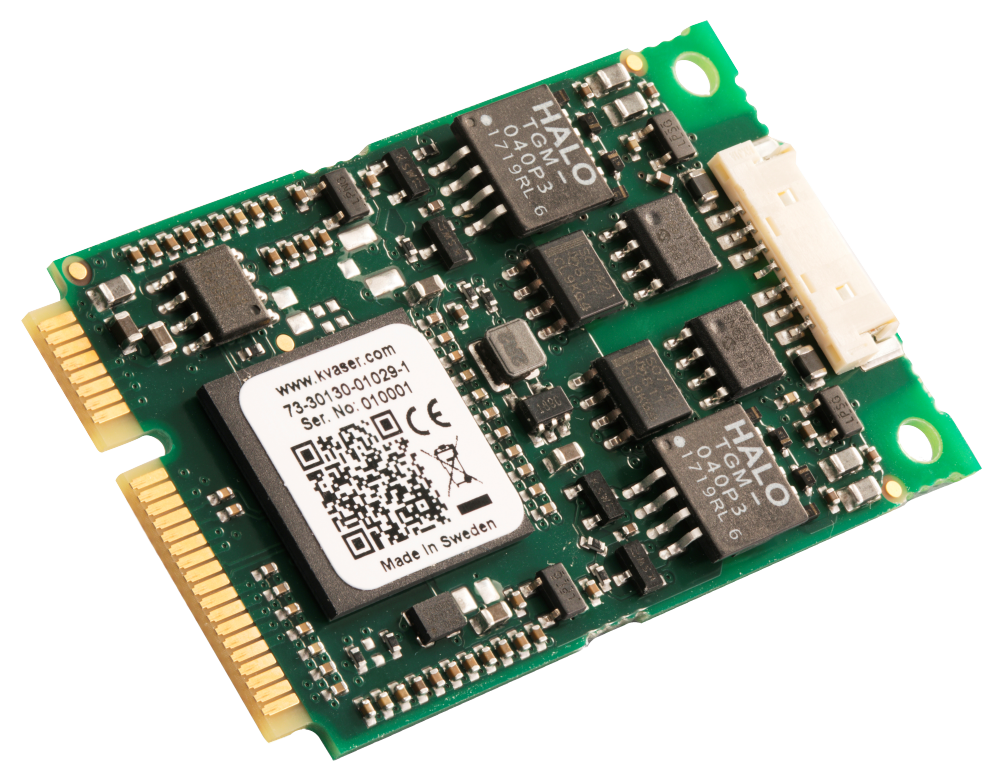

The Kvaser Mini PCI Express 2xHS v2 is a small (30×51mm), yet advanced, real time CAN interface that adds two high speed CAN or CAN FD channels to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.
Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs)
High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD
High transmission rate of up to 20000 messages/s on each channel
Time stamp accuracy of 1 µs
Suitable for industrial environments
Low profile mini PCI Express-compliant 7-pin Molex connector provides CAN channel access
Includes Molex to DSUB9 cable adapter
Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments
Operates over the industrial temperature range of −40 to +85°C
Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board. Windows DLL library and examples included.
Supports Windows Vista or later
Linux drivers and a dedicated SDK are available as a separate download
Support for SocketCAN, see elinux.org for details
Note: Kvaser’s already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.
Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads
Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and t Script
All Kvaser CAN interface boards share the common software API, CANLib SDK. Programs written for one interface type will run without modifications on the other interface types.
J2534 Application Programming Interface available
RP1210A Application Programming Interface available
HTML-Help and online documentation in Windows and Linux
CAN FD bitrate
Up to 8 Mbit/s
Messages per second receive
Messages per second sending
Error counters reading
Error frame generation
Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a single channel interface. Only uses 3.3 V.
Mini PCI Express
Molex 53780 PanelMate
Linux, Win 7, Win Vista, Win 10, Win 8
Environmental and physical specifications
-40 to +85°C
Kvaser Mini PCI Express 2xHS v2
