Mini PCI Express HS v2

Mini PCI Express CAN interface
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Channels: 1
  • Bitrate: 50-8000 kbps
  • Molex 53780 PanelMate connector
  • Operating temperature: -40 to +85°C

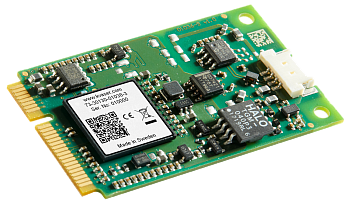

The Kvaser Mini PCI Express 2xHS v2 is a small (30×51mm), yet advanced, real time CAN interface that adds one high speed CAN or CAN FD channel to any standard computer with mini PCI Express capability. PC communication is over the PCI Express system bus, making for extremely low latency with a time stamp accuracy of 1 µs.

Major Features

  • Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs)
  • High-speed CAN connection (compliant with ISO 11898-2), supporting a bit rate from 50 to 1000 kbit/s for Classical CAN and up to 8Mbit/s for CAN FD
  • High transmission rate of up to 20000 messages/s on each channel
  • Time stamp accuracy of 1 µs
  • Galvanic isolation
  • Suitable for industrial environments
  • Low profile mini PCI Express-compliant 7-pin Molex connector provides CAN channel access
  • Includes Molex to DSUB9 cable adapter
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments
  • Operates over the industrial temperature range of −40 to +85°C
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board. Windows DLL library and examples included.
  • Supports Windows Vista or later
  • Linux drivers and a dedicated SDK are available as a separate download
  • Support for SocketCAN, see elinux.org for details
  • Note: Kvaser’s already-existing Kvaser Mini PCI Express HS and Kvaser Mini PCI Express 2xHS products will remain available for sale. The primary difference is that these previous versions utilize the USB system bus for communication with the PC.
Software
  • Documentation, Kvaser CANlib SDK and drivers can be downloaded for free at www.kvaser.com/downloads
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Visual Basic, Python and t Script
  • All Kvaser CAN interface boards share the common software API, CANLib SDK. Programs written for one interface type will run without modifications on the other interface types.
  • J2534 Application Programming Interface available
  • RP1210A Application Programming Interface available
  • HTML-Help and online documentation in Windows and Linux

Technical specifications
Channels 1
Bitrate 50-8000 kbps
CAN FD bitrate Up to 8 Mbit/s
Messages per second receive 20 000
Messages per second sending 20 000
Error counters reading No
Error frame generation Yes
Current consumption Typically 700 mW idle plus max 150 mW per channel, i.e. max 850 mW for a single channel interface. Only uses 3.3 V.
Interface Mini PCI Express
Connector Molex 53780 PanelMate
Silent mode Yes
Sound No
Timestamp (µ) 1 µs
Galvanic isolation Yes
OS Linux, Win 7, Win Vista, Win 10, Win 8
Length 51 mm
Height 5 mm
Weight 6 g

Environmental and physical specifications

Operating Temperature -40 to +85°C
Certificates CE, RoHS
Model Description
73-30130-01038-3 Kvaser Mini PCI Express HS v2
