PCIEcan HS v2

High-speed CAN network card with CAN FD support
Kvaser AB Vendor:
Kvaser AB
  • Details
  • Specification
  • Order information
  • Bitrate: up to 1 Mbps
  • CAN FD compliant
  • Galvanic Isolation
  • Operating temperature: -40 - 85 °C

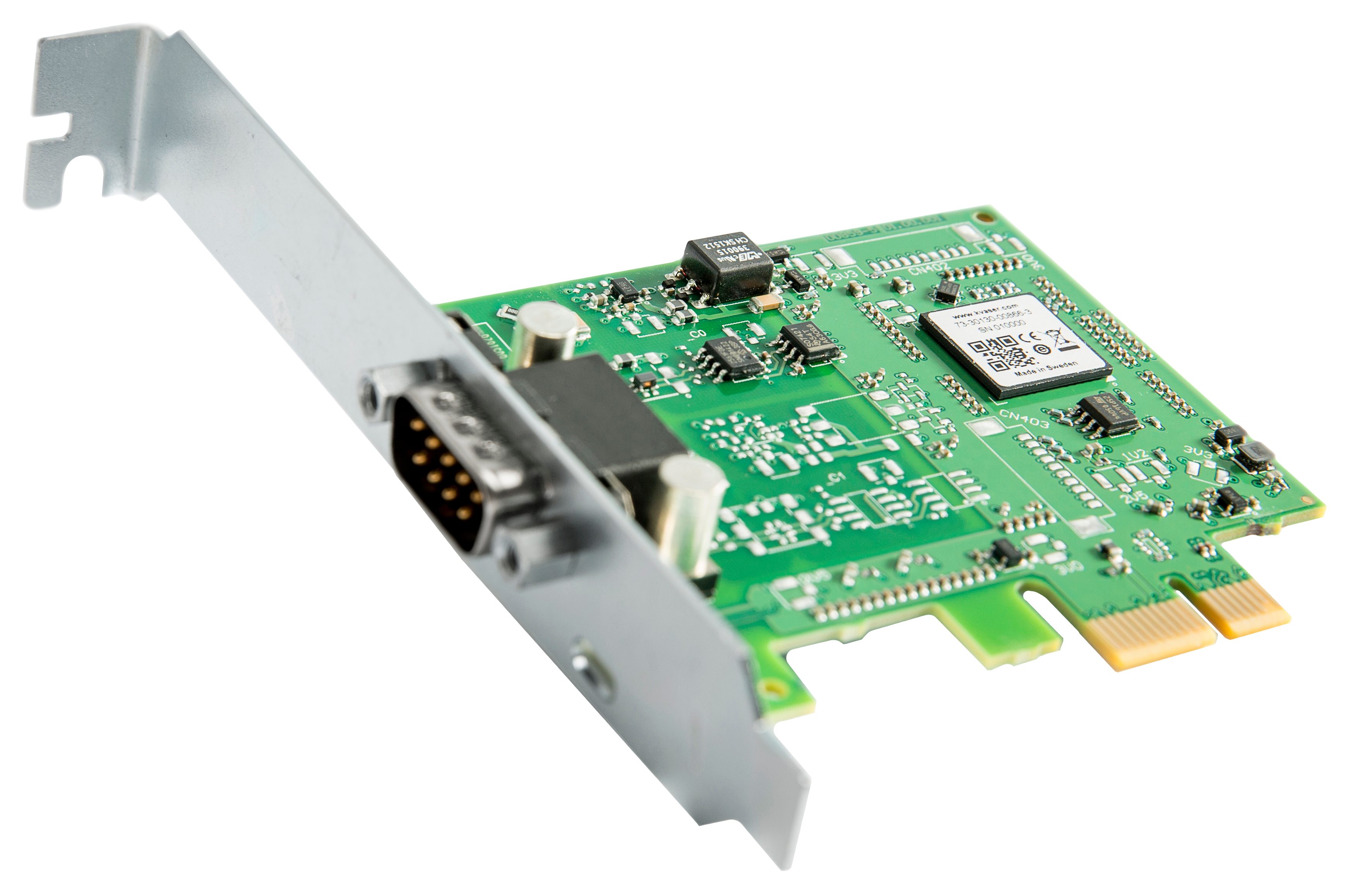

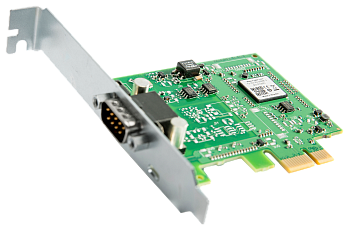

Kvaser PCIEcan HS v2 is a highly integrated, high-speed controller area network (CAN) card that adds a single high‑speed (ISO 11898-2) CAN channel to any standard computer board with PCI Express capability. At 86×69 mm, this has a smaller form factor and lower profile than the Kvaser PCIEcan HS.

Offering silent mode, error frame detection/generation and an on-board buffer, this add-on board fits many embedded data acquisition systems and is CAN FD compliant.

Technical specifications
Bitrate 50-1000 kbps
Messages Per Second Receive 20000 mps
Messages Per Second Sending 20000 mps
Channels 1
Interfaces PCI Express
Timestamp 1
Length 86 mm
Height 69 mm
Weight 48 g
OS Windows 10, 8, 7 and Vista
Galvanic Isolation Yes
Error Frame Generation Yes
Error Counters Reading No
Silent mode Yes
Sound No

Environmental and physical specifications

Temp range -40 - 85 °C
Model Description
73-30130-00866-3 Kvaser PCIEcan HS v2
