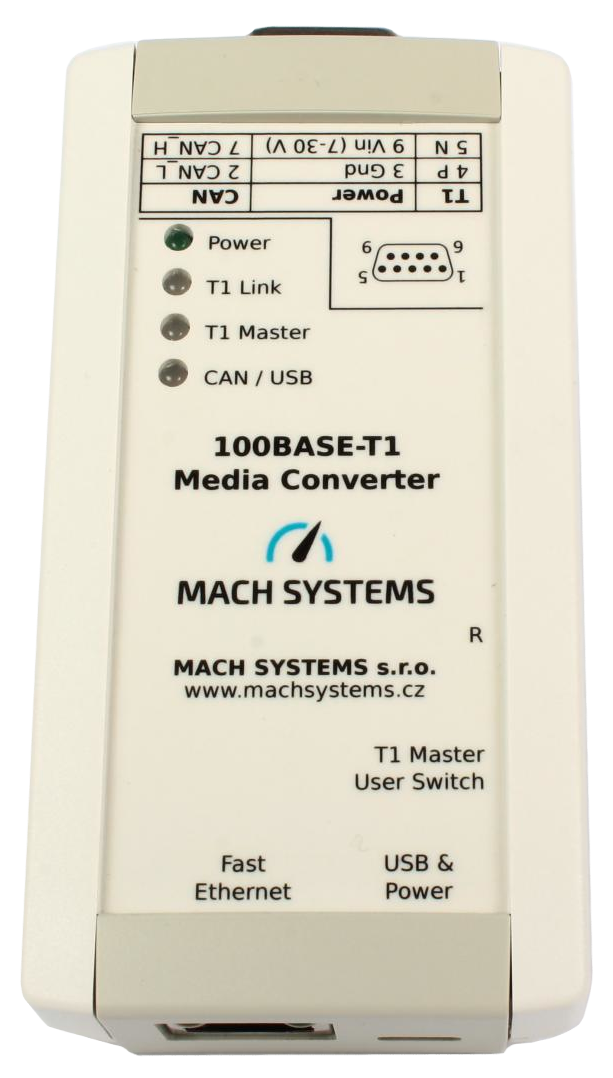

A bi-directional physical layer converter between 100BASE-T1 (OPEN Alliance BroadR-Reach — OABR) and 100BASE-TX (Fast Ethernet), enabling the user to easily connect Automotive Ethernet cameras or ECUs with OABR media link to a standard computer network.
The interface establishes a point-to-point link between an unshielded twisted-pair Automotive Ethernet (IEEE 100BASE-T1) port and a Fast Ethernet port. The converter features one DSUB9 (BroadR-Reach, CAN bus), one Fast Ethernet port with RJ-45 connector, and a Micro-USB connector. The BroadR-Reach channel is configurable as either Master or Slave by a switch button or programmatically, and the device can be powered either via DSUB connector or via USB.
Features
The converter offers a possibility to access SMI registers of both transreceivers (PHYs) via a CAN bus or a USB’s virtual serial port. This enables the user to evaluate signal strength, detect polarity of the T1 port, carry out a BroadR-Reach media test to diagnose cable errors, fine-tune the PHYs parameters, and generally to read and write the registers.
Free PC application for Status Information
A free-of-charge PC utility for reading status information out of the 100BASE-T1 Media Converter. Once you plug the Media Converter into computer’s USB port, the PC utility will show you converter’s port status, signal quality and T1 cable test result. This is useful for diagnostic and test purposes.
Technical specifications | |
Ports |
1x 100BASE-T1 (BroadR-Reach / OABR), 1x 100BASE-TX (Fast Ethernet), 1x CAN bus, 1x Virtual COM Port (USB CDC) |
Power | 9 - 30 V DC with polarity protection, either via DSUB or Micro-USB |
Consumption | 150mA @ 12 V, approx. 2 W |
LEDs | 5x Status Indicator, 1x Power |
Button and Switches | 2x DIP switch (Master/Slave, User), 1x Tactile switch (Reset factory defaults) |
Transreceivers |
100BASE-T1: TJA1102, 100BASE-TX: KSZ8041 |
Firmware | Upgradable via USB |
Microcontroller | 32-bit |
Connectors |
1x D-SUB9M, 1x RJ-45, 1x Micro-USB |
Dimensions (L x W x H) | 108 x 54 x 30 mm |
Weight | 83 g |
Placement |
Table (adhesive pads included), DIN-rail mount (clip sold separately) |
Environmental and physical specifications |
|
---|---|
Operating temperature | 0° to +70°C |
Protection | IP20 |
Model | Description |
100BASET1‑MC‑ETH | 100BASE-T1 to 100BASE-TX (Fast Ethernet) Media Converter |
