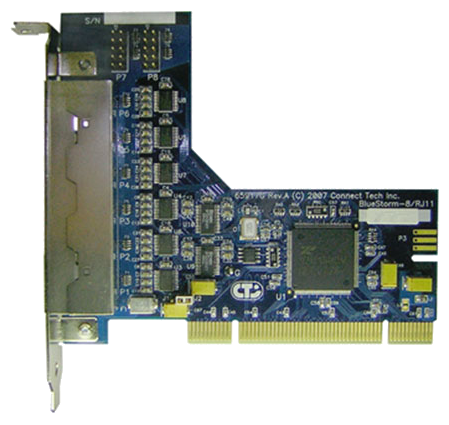

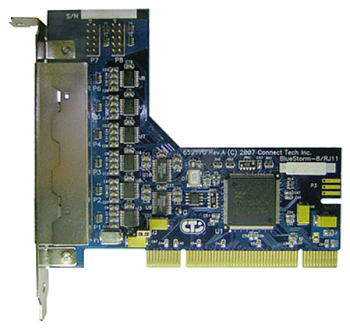

BlueStorm/SP RJ-11

Serial communications board
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • 8x RS-232 ports
  • 6x RJ-11, 2x on-board headers
  • 32-bit Universal PCI
  • Operating temperature: 0°C to +70°C (+32°F to +158°F)

BlueStorm/SP RJ-11 offers hardware flexibility and adaptability for your mission critical applications. The BlueStorm/SP RJ-11 is an extension of the BlueStorm product family and is available as a standard card only.

BlueStorm/SP RJ-11 offers eight ports of RS-232 serial connectivity. Each port can be configured independently for baud rate, parity, data and stop bits. Eliminate the need for external power supplies with the +5 VDC or +12 VDC of power provided on six RJ-11 ports for applications where peripherals may require it (up to 300mA total). Two DB-9 connectors are also accessible via an optional cable assembly.

BlueStorm/SP RJ-11 is compatible with 3.3V and 5V PCI slots. Bi-directional data speeds up to 921.6 Kbps ensure fast data acquisition and communications.

All BlueStorm/SP products are FCC certified and CE marked.

Technical specifications
Ports 8 ports
Electrical Interfaces RS-232
Connectors Six RJ-11 connectors accessible through the factory installed bracket,
two on-board 10 pin headers
Control Signals RJ-11: TxD, RxD, RTS, DSR, SG (Signal Ground), DC Power
10 pin header: TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, SG (Signal Ground)
Baud Rate RS-232: 50 bps to 921.6 Kbps
Interrupts Assigned by Plug and Play resources
Memory Addresses Assigned by Plug and Play resources
UART Type Eight UART channels with 64 byte transmit and receive FIFO,
FIFO buffers for each port – programmable trigger levels
Bus 32-bit Universal PCI
Operating System Linux, QNX 4.X/6.X, Windows 2000/CE/XP/XP x64/XPe/Server 2003/ Server 2003 x64/Vista
Surge Supression Transient voltage suppression on every signal of every port – energy dissapation 0.05 joules, peak current 15A
Power Requirements +12V, +5V
Dimensions 121.29 mm x 106.68 mm (4.775" x 4.2")

Environmental and physical specifications

Operating Temperature 0°C to +70°C (+32°F to +158°F)
Storage Temperature -55º C to 105º C (-67º F to 221º F)
Humidity 5 to 95% non-condensing
Regulatory Approvals FCC Class A
ICES -003 Class A
Model Description
BTG008 BlueStorm/SP, 8 ports for RS-232 with 6 x RJ-11 board connectors
BTG008‑01 BlueStorm/SP, 8 ports for RS-232 with 6 x RJ-11 board connectors and CAGK104 cable
CAGK104 1x DB-9 Male, 10-Pin Header
