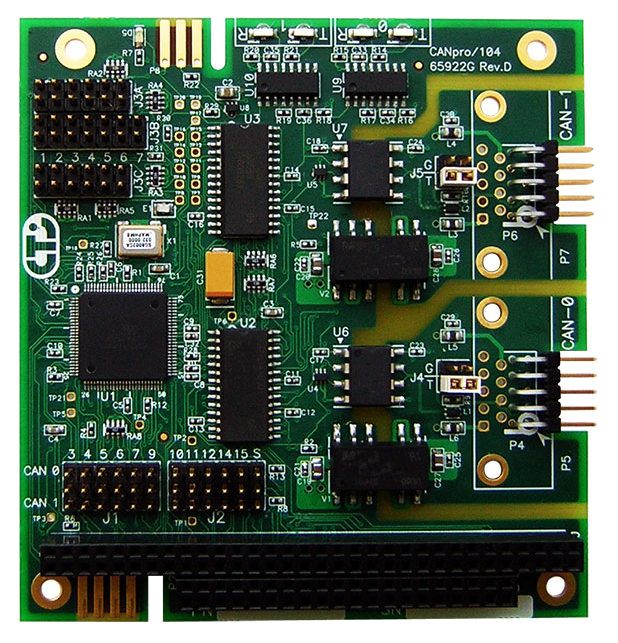

Connect Tech CANpro/104 Opto combines the power of two NXP SJA1000 CAN controllers with the compact size and rugged stability of PC/104.
This CAN controller card features fail-safe power-up/power-down and on-board high input impendence transceivers to maximize nodes on the bus. Jumperable slew rate limiting reduces radiated emissions. 3kV of optical and power isolation ensure your data is protected from disruptions that can occur with exposure to harsh conditions or environments.
Dependability, high data rates and network control capabilities make CANpro/104 Opto ideal for industrial control applications.
All Connect Tech PC/104 CAN Controller cards include lifetime warranty and free technical support.
Technical specifications | |
Ports | 2 ports |
CAN Controllers | Two CAN 2.0B compliant SJA1000 controller |
I/O Connector Type |
Standard: 10-pin, right angled header (+5V power output) Optional: DB-9 |
I/O Connector Power Output | 125mA |
CAN Controller Clock | 16MHz |
Optical/Power Isolation | 3kV for each CAN port from the host system |
Decoded Base Address & Size |
Memory: 0x00000 to 0xCFE00; 8192 byte size I/O (PeliCAN): 0x000 to 0x700; 256 byte size I/O (BasicCAN): 0x000 to 0x7C0; 64 byte size |
Dimensions | PC/104 Compliant |
Bus | PC/104 |
Software Compatibility | Linux 2.6, QNX 6. Please contact us for the most current list. |
CAN Transceivers | Support 1.0 Mbps operation |
Power Requirements | +5V |
Environmental and physical specifications |
|
---|---|
Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
Storage Temperature | -40°C to +125°C (-40°F to +257°F) |
Humidity | 95% non-condensing |
Model | Description |
CNG001 | CANpro/104 Opto, PC/104 form factor, 2 ports, 3kV optical isolation - RoHS compliant |
CNG001‑01 | CANpro/104 Opto, PC/104 form factor, 2 ports, 3kV optical isolation, DB-9 cables - RoHS compliant |
CNG002 | CANpro/104 Opto, 2 ports, 3kV optical isolation, 2x DB-9 connectors on board - RoHS compliant |
