EPS-12002L

• 12x Gigabit Ethernet ports for twisted pair connections
• 2x 1/2.5/5/10G SFP+ sockets for fiber or copper transceivers
• MIL-STD-202G shock/vibration resistance, latching I/O connectors
• Operating Temperature: -40°C to +85°C

Main features:

• Rugged Ethernet switch for vehicle and other harsh environment applications
• 12 gigabit Ethernet ports for twisted pair connections
• 2 1/2.5/5/10G SFP+ sockets for fiber or copper transceivers
• All ports feature non-blocking wire-speed performance
• Layer 2+ switching and Layer 3 routing software available
• IEEE 1588 PTP support available
• Software customization and branding available
• Rugged design with latching connectors
• -40 to +85°C operating temperature
• 5.3×2.2″ / 136×55mm
• Heat sink and heat spreader thermal options

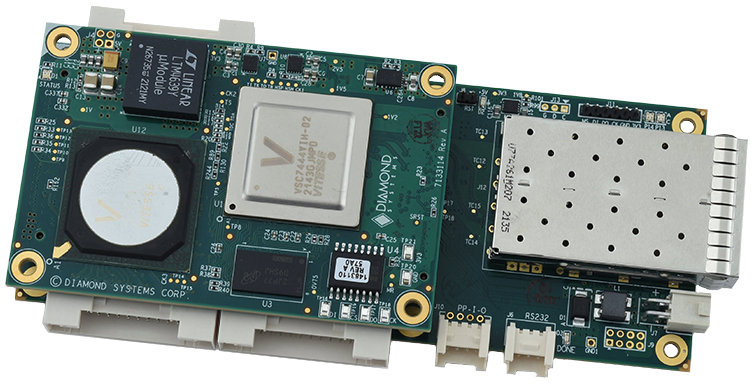

The EPS-12002L is a compact managed rugged Ethernet switch based on Diamond’s EPSM-10GX Ethernet switch module. The switch consists of the EPSM-10GX module mounted on a carrier board that provides power, magnetics, and connectors, along with a heat sink or heat spreader.

EPS-12002L provides 12x 10/100/1000Mbps copper ports and 2x 1/2.5/5/10Gbps SFP+ sockets for fiber or copper transceivers. EPS-12002L is ideal for vehicle and industrial applications requiring a small form factor with gigabit Ethernet switching and fiber connectivity support.

Two software packages are available, Layer 2+ switching and Layer 3 routing/switching. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port.

EPS-12002L is designed specifically to meet the challenges of vehicle and other rugged environments, with its −40/+85°C operating temperature range, latching I/O connectors, and MIL-STD-202G shock/vibration resistance. A 5-36V input power supply provides compatibility with a range of industrial and vehicle power supplies.

Embedded Software

Two software packages are available: Layer 2+ switching and Layer 3 routing/switching. In addition, IEEE-1588 precision time protocol support is available with a minor modification to install a precision clock circuit on the board. All software features are manageable via a GUI web interface accessible over any port, as well as with a command language accessed via a built-in RS-232 port. Customer branding is available to put your logo / color scheme / part numbers on the GUI and serial interface.

The table below shows some of the more popular features available.

Layer 2+ software highlights include the following:

• 8K MAC addresses and 4K VLANs (IEEE 802.1Q)
• 8K IPv4 and IPv6 multicast group support
• Jumbo frame support at all speeds
• Flexible link aggregation support based on Layer-2 through Layer-4 information (IEEE 802.3ad)
• Multicast and broadcast storm control, as well as flooding control
• Rapid Spanning Tree protocol (RSTP) and MSTP
• Multiple protocol support: IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, and IEEE 802.1X
• 8 priorities and 8 QoS queues per port with scheduling

Layer3 software additional highlights:

• Hardware- and software-based IPv6 L3 static routing
• RFC 2328 OSPFv2 dynamic routing
• IEEE 1588 precision time protocol (PTP)
• RADIUS accounting
• Port and Queue policers

Cable Kit

Cable Kit for EPS-12000-CM: 3x Quad Gigabit Ethernet cables, Power cable, Serial cable.
