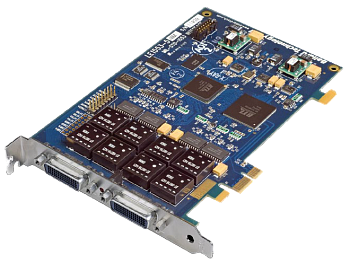

Lx1553-5

PCI & PCIe Avionics Interface Cards for MIL‑STD‑1553
Ballard Technology Vendor:
Ballard Technology
  • Details
  • Specification
  • Order information
  • 1 to 4 dual-redundant MIL-STD-1553 channels
  • Single-function or multi-function
  • All power drawn from backplane (no auxiliary cabling required)
  • Operating Temperature: -40 to 85°C

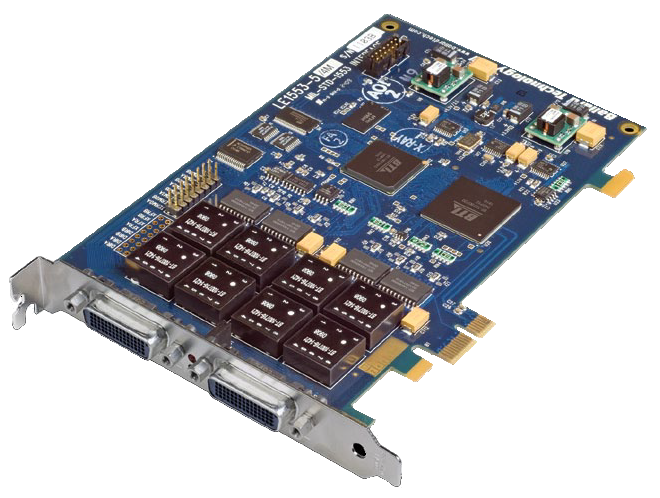

LP1553-5 (PCI) / LE1553-5 (PCI Express)
The LP1553-5 (PCI) and LE1553-5 (PCIe) are personal computer expansion cards for communicating with MIL‑STD‑1553 systems. These feature-rich interfaces provide programmable data buffers and deep built-in memory. Models offer 1 to 4 dual redundant MIL-STD-1553 channels, 16 input/output avionics level discretes, and IRIG time synchronization/generation. MIL-STD-1553 capability includes BC, RT, and/or Monitor. Avionics discretes can be used as general purpose I/O or linked in hardware to 1553 databus activity as triggers or syncs.

The Lx1553-5 model line supports maximum data throughput on all 1553 interfaces. Each channel is independently configurable as Bus Controller, Remote Terminal(s), and/or Bus Monitor. Messages can be captured by a sequential monitor for all channels, or via RT map monitoring. Notification of databus activity is handled through the on-board Event Log, which can be processed by polling or via an interrupt. To dramatically reduce the host CPU processing, the sequential monitor has a DMA mode that automatically moves records to host memory through PCI/PCIe bus mastering.

Key Features:

  • 1 to 4 dual-redundant MIL-STD-1553 channels
  • Single-function or multi-function Single-function: BC or RT(s) or monitor Multi-function: BC and RT(s) and monitor
  • IRIG & 16 Avionics discrete I/O
  • Large 32 MB on-board memory
  • 48 bit, 1 uSec hardware time-tagging
  • All power drawn from backplane (no auxiliary cabling required)
  • RoHS compliant design
  • Translation DLL for application conversion
  • CoPilot® databus analyzer software available
Hardware
The Lx1553-5 products are half size compliant cards. Avionics transition cabling is available from the unit’s I/O connectors to standard 1553 cable connections. The universal PCI or PCI Express interfaces available make the Lx1553-5 compatible with virtually all modern desktop, rackmount, and server computers.

Model Description
Lx1553‑5/1ST 1 Single-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1ST 1 Single-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1S 1 Single-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1S 1 Single-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/2S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/2S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/3S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/3S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/4S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/4S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1MT 1 Multi-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1MT 1 Multi-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1M 1 Multi-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1M 1 Multi-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/2M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/2M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/3M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/3M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/4M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/4M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Model Description
Lx1553‑5/1ST 1 Single-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1ST 1 Single-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1S 1 Single-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1S 1 Single-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/2S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/2S 2 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/3S 3 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/3S 3 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/4S 4 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/4S 4 Single-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Single-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1MT 1 Multi-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1MT 1 Multi-Function 1553 Channel w/ TwinAx Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/1M 1 Multi-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/1M 1 Multi-Function 1553 Channel w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/2M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/2M 2 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/3M 3 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/3M 3 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
Lx1553‑5/4M 4 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s).
CP‑Lx1553‑5/4M 4 Multi-Function 1553 Channels w/ LFH60 Conn. Dual-Redundant, Multi-Function BC, RT(31) or Monitor Channel(s). w/ CoPilot Analyzer
