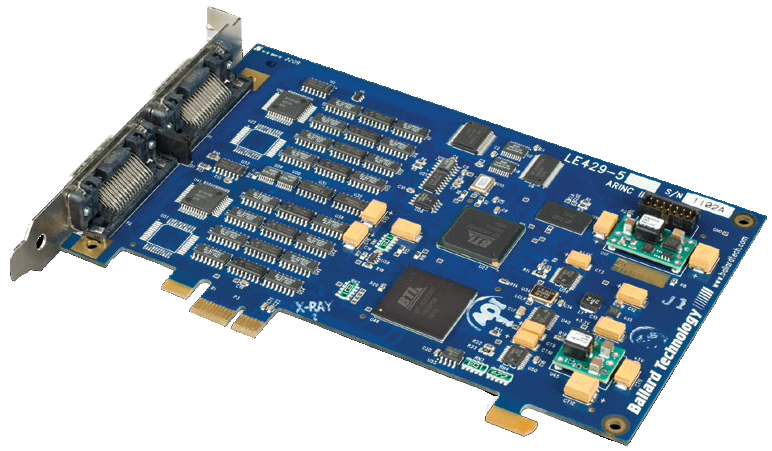

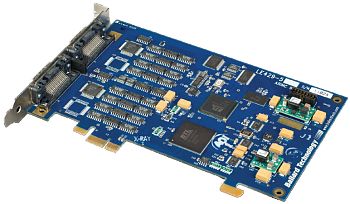

LP429-5 (PCI) / LE429-5 (PCI Express)
The LP429-5 (PCI) and LE429-5 (PCIe) are personal computer expansion cards for communicating with ARINC 429 and ARINC 717 systems. These feature-rich interfaces provide programmable dual redundant data buffers and deep built-in memory. Models offer 4 to 32 ARINC 429 channels, and up to 4 ARINC 717 channels, 16 input/output avionics level discretes, and IRIG time synchronization/generation. Avionics discretes can be used as general purpose I/O or linked in hardware to databus activity as triggers or syncs.
The Lx429-5 products support maximum data throughput on all avionics interfaces. Each channel is independently configurable for high or low speed operation. Messages can be captured by a sequential monitor for all channels, or via individual message monitoring. Notification of databus activity is handled through the on-board Event Log, which can be processed by polling or via an interrupt. To dramatically reduce the host CPU processing, the sequential monitor has a DMA mode that automatically moves records to host memory through PCI/PCIe bus mastering.
Key Features:
Technical specifications | |
Standard Features |
- Memory: 32 MB on-board memory - DIO: 16 avionics level inputs/outputs - IRIG: A or B, AM, PWM and PPS modes |
Dimensions | 75 x 107 mm |
Weight | 113.4 g |
Avionics Interfaces | |
ARINC 429 | Up to 32 channels |
ARINC 717 | Up to 4 channels |
Receive |
- Message filtering (Label/SDI) - Current value and multi-buffered list messages - Automatic bit rate detection - Error detection and logging |
Transmit |
- Periodic and asynchronous messages - Automatic transmit schedule generation based on rep rates or min/max times - Gap and parity error injection |
Software |
Universal BTIDriver API for C/C++, C#, VB, VB.Net, and LabVIEW™ Windows® and Linux® OS drivers CoPilot analysis and test software (optional) Call for latest language and OS support |
Environmental and physical specifications | |
Operating temperature | -40 to + 85°C |
Storage temperature | -55 to +100°C |
Model | Description |
Lx429-5/2R2T | ARINC 429 2R/2T |
CP-Lx429-5/2R2T | ARINC 429 2R/2T. w/ CoPilot Analyzer |
Lx429-5/0R8T | ARINC 429 0R/8T |
CP-Lx429-5/0R8T | ARINC 429 0R/8T. w/ CoPilot Analyzer |
Lx429-5/4R4T | ARINC 429 4R/4T |
CP-Lx429-5/4R4T | ARINC 429 4/24. w/ CoPilot Analyzer |
Lx429-5/8R0T | ARINC 429 8R/0T |
CP-Lx429-5/8R0T | ARINC 429 8R/0T. w/ CoPilot Analyzer |
Lx429-5/0R16T | ARINC 429 0R/16T |
CP-Lx429-5/0R16T | ARINC 429 0R/16T. w/ CoPilot Analyzer |
Lx429-5/4R12T | ARINC 429 4R/12T |
CP-Lx429-5/4R12T | ARINC 429 4R/12T. w/ CoPilot Analyzer |
Lx429-5/8R8T | ARINC 429 8R/8T |
CP-Lx429-5/8R8T | ARINC 429 8R/8T. w/ CoPilot Analyzer |
Lx429-5/12R4T | ARINC 429 12R/4T |
CP-Lx429-5/12R4T | ARINC 429 12R/4T. w/ CoPilot Analyzer |
Lx429-5/16R0T | ARINC 429 16R/0T |
CP-Lx429-5/16R0T | ARINC 429 16R/0T. w/ CoPilot Analyzer |
Lx429-5/16R16T | ARINC 429 16R/16T |
CP-Lx429-5/16R16T | ARINC 429 16R/16T. w/ CoPilot Analyzer |
Lx429-5/24R8T | ARINC 429 24R/8T |
CP-Lx429-5/24R8T | ARINC 429 24R/8T. w/ CoPilot Analyzer |
Lx429-5/32R0T | ARINC 429 32R/0T |
CP-Lx429-5/32R0T | ARINC 429 32R/0T. w/ CoPilot Analyzer |
Lx429-5/0R0T/717 | ARINC 429 0R/0T. A717 2R/2T |
CP-Lx429-5/0R0T/717 | ARINC 429 0R/0T. A717 2R/2T. w/ CoPilot Analyzer |
Lx429-5/6R6T/717 | ARINC 429 6R/6T. A717 2R/2T |
CP-Lx429-5/6R6T/717 | ARINC 429 6R/6T. A717 2R/2T. w/ CoPilot Analyzer |
Lx429-5/14R14T/717 | ARINC 429 14R/14T. A717 2R/2T |
CP-Lx429-5/14R14T/717 | ARINC 429 14R/14T. A717 2R/2T. w/ CoPilot Analyzer |
Lx429-5/28R28T/717 | ARINC 429 28R/28T. A717 2R/2T |
CP-Lx429-5/28R28T/717 | ARINC 429 28R/28T. A717 2R/2T. w/ CoPilot Analyzer |
