MACH-ETH
Vendor:Mach Systems
- Details
- Specification
- Order information
- Multiple I/O
- User-programmable
- Externally or USB-powered
- Operating temperature: -20°C to +70°C

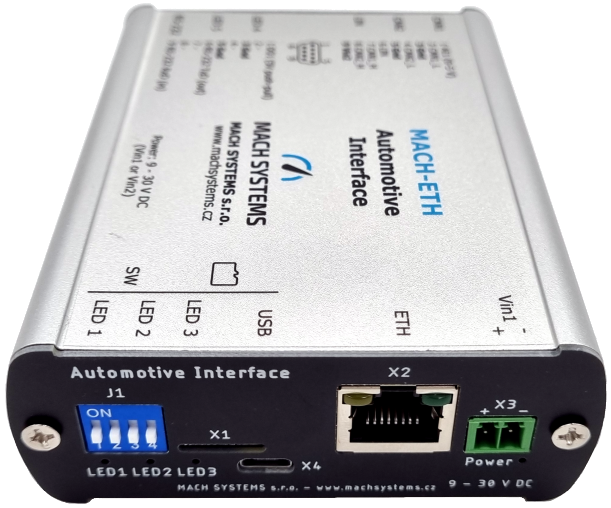

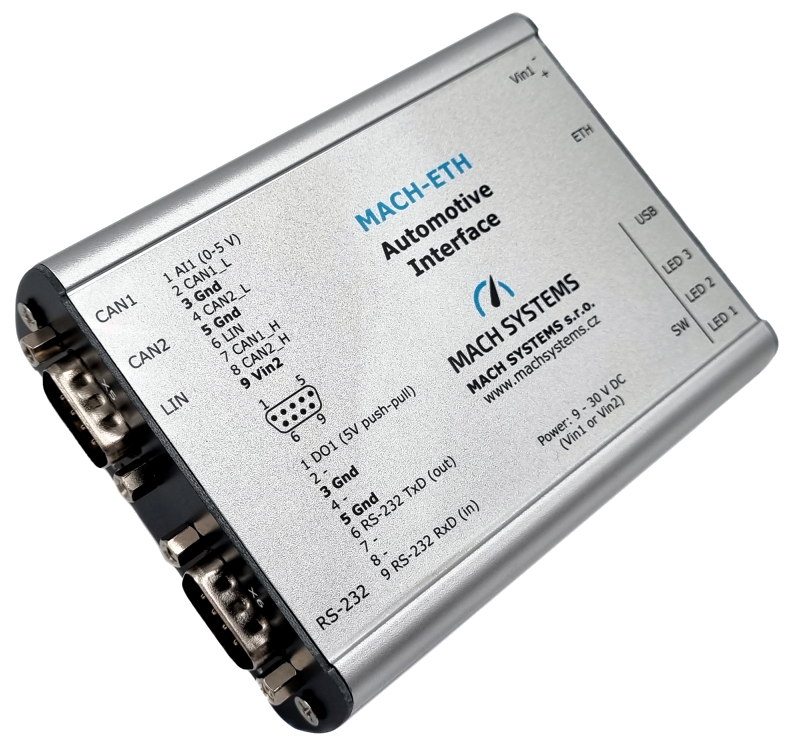

The MACH-ETH is an automotive network interface that features one Ethernet port, two CAN FD channels, a LIN channel, a USB and RS-232 port, and multiple I/Os.
The device can act as an Ethernet-CAN(/FD) or Ethernet-LIN interface as well as CAN(/FD)-LIN gateway, and a user-scripting feature allows to run user applications directly on the device. The open communication protocol enables access to interface’s channels over Ethernet or USB.
The communication protocol over Ethernet or USB enables access to CAN(/FD) and LIN bus channels over Ethernet or virtual COM port respectively.
A user-scripting feature, which allows to run user applications directly on the MCU, can be used for HiL testing and rest-bus simulations. The device can act as an interface, a gateway, or bridge between all its channels.
An analogue input and a digital output enable the user to interact with external peripherals.

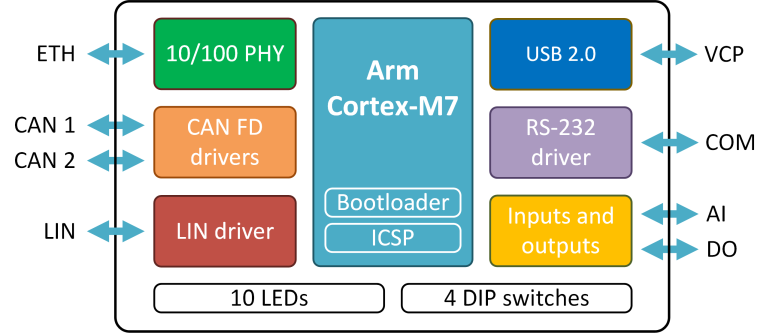

Features
- 10/100 Ethernet port
- 2 CAN-HS channels with CAN FD support
- LIN channel
- USB 2.0
- RS-232
- Analogue input and digital output
- 4 DIP switches
- 10 status LEDs
- Open communication protocol for integration over Ethernet and USB
- User-programmable
- Externally or USB-powered
- Table-top use or DIN-rail mount
- ETH-CAN(/FD) and ETH-LIN interface
- CAN(/FD) — LIN gateway
- CAN — CAN-FD gateway
- Remaining bus simulations
- User-programmable HiL simulations
The open communication protocol (API) allows to easily access CAN(/FD) and LIN channels over Ethernet (supports both TCP and UDP) or USB VCP. With the help of the communication protocol, the user can configure the device’s CAN/CAN FD/LIN channels and frames can be transmitted and received.
User Programming
The device firmware can also be fully customizable in C language. An open-source SDK, which shows the use of all the peripherals, is available on GitHub. A user application can be uploaded into the device over web bootloader or USB. It is also possible to debug the application directly on the target (STM32 SWD).
- Firmware customizable in C/C++
- Free-of-charge C language SDK
- Free-of-charge IDE and C/C++ compiler
- Firmware update over USB, Ethernet or ICSP
| Technical specifications | |
| Channels |
1 Fast Ethernet (10BASE-T / 100BASE-TX, IEEE 802.3u) 2 CAN-HS (ISO 11898-2) with CAN FD support (ISO 11898-1:2015; CAN 2.0A/B, ISO CAN FD) 1 LIN bus (supports both master and slave; ISO 17987; LIN 2.2a) 1 USB 2.0 CDC (Virtual COM port) 1 RS-232 |
| Integration | Communication protocol for accessing CAN-FD and LIN channels over Ethernet (TCP/IP) and USB (VCP) |
| User-programming |
Free-of-charge C SDK with programming examples Free-of-charge IDE and GNU C/C++ compiler (STM32CubeIDE) |
| Firmware update | over Ethernet, USB, or ICSP (ST-LINK) |
| Debugging | ST-LINK SWD (a programming header required) |
| Transreceivers |
CAN-FD: MCP2562FD LIN: MCP2003B Ethernet: KSZ8041 |
| I/O |
1 Analogue input (0-5 V) 1 Digital output (5 V push-pull, 0.5 A, PWM capable) |
| LEDs |
5 Dual-colour LEDs 2 Single-colour LEDs 2 ETH LEDs (RJ-45 connector) 1 Power LED |
| MCU | STM32H7 (1 MB Flash, 564 KB RAM) |
| Power |
USB-powered over Micro-USB (not for LIN bus) External 9 - 30 V DC power input (polarity and surge protection) over DSUB connector or terminal block |
| Consumption | 100 mA @ 12 V |

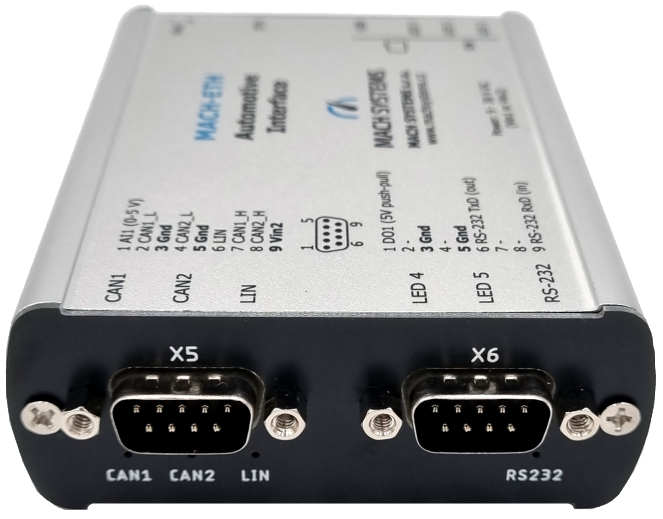

| Connectors |
2 DSUB9M 1 RJ-45 1 Micro-USB 1 Terminal block (2-pin) |
| Switches | 4 DIP switches |
| Enclosure | Aluminium profile |
| Dimensions (L x W x H) | 108 x 82 x 33 mm |
| Weight | 185 g |
| Placement |
Table (adhesive pads included) DIN-rail mount (see Ordering Information) |
|
Environmental and physical specifications |
|
|---|---|
| Operating temperature | -20° to +70°C |
| Protection | IP20 |
| Model | Description |
| MACH-ETH | MACH-ETH device |
| DIN-BRACKET-UNI | A universal bracket for mounting any enclosure on a DIN rail |
| MACH‑ETH‑NET‑SDK | .NET C# SDK API (DLL) for accessing CAN FD and LIN channels over Ethernet (TCP/IP) and USB (VCP) |
