When space is at an absolute premium, get proven COTS avionics interface cards that fit your application and minimize program risk. The ME1000 family of Mini PCI Express® cards from Astronics Ballard Technology is the ultimate low-SWaP embedded solution.
Small Size
Interface in more places with one of the industry’s smallest form factor modules.
Large I/O
Do more with the most I/O in a mPCIe card, including 1553, serial, discrete, and IRIG.
Huge Value
Get Ballard's reliable designs, long life, and industry-leading customer support.
Miniature Databus Interfaces

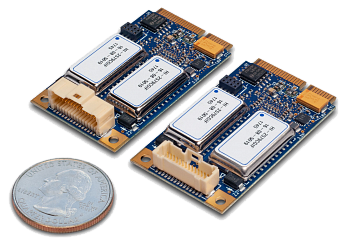

ME1000 mPCIe cards enable space-constrained embedded systems to interface with MIL-STD-1553 avionics databuses. These rugged cards provide the capability to reliably communicate with and monitor avionics equipment and systems. These feature-rich cards include 1 or 2 dual-redundant MIL-STD-1553 channels, along with avionics discrete I/O and IRIG signals. RS-422/485 Serial is optionally available.
Key Features:
High Reliability
ME1000 interface cards use Ballard’s time-tested 5th generation avionics protocol engine, a large 32 MB built-in memory, and high-performance bus mastering capability. All models include 8 avionics level input/output discretes (6 inputs/2 outputs), differential discretes (1 input/1 output), and IRIG time synchronization/generation. Extended temperature range is standard and conformal coating is an option.
Concurrent Multi-Function MIL-STD-1553 Operation
Like all Astronics Ballard Technology MIL-STD-1553 multi-function cards, the ME1000 provides full concurrent Bus Controller (BC), Remote Terminal (RT), and Bus Monitor operation. In addition, multi-function features protocol error injection (word, gap, and message errors). If concurrent operation is not required, Ballard's cost-effective single-function cards provide BC/RT/Monitor operation separately.
Flexible Connection
The miniature size of the card allows installation in the smallest of systems, and the choice of horizontal or vertical I/O connector ensures you can make the most of the limited space available. In addition, the cost-effective connector style on the ME1000 means a lower price tag for your mating connectors, keeping your overall system costs low.
Robust Software Capabilities
Users can develop their own software applications with the included BTIDriver™ API. With only a few function calls, a program can operate the interface card and process messages to and from the avionics databuses. Functions include routines for transmitting, receiving, scheduling, recording, time-tagging, and manipulating data. The interface card can use applications developed for other Ballard devices; code migrates seamlessly from BTIDriver compatible devices.
Technical specifications | |
Avionics Interfaces & I/O |
|
MIL-STD-1553 | Up to 2 channels |
RS-422/485 Serial | 1 port |
Differential Discrete I/O |
1 Input and 1 Output For serial models: users can select serial or DIO operation (both cannot be used concurrently) |
Discrete I/O |
6 Inputs/2 Outputs Includes 16 avionics discrete I/O |
IRIG | IRIG A/B PWM and AM |
Standard Features |
|
MIL-STD-1553 channels | 1 or 2 |
Avionics Discrete I/O | 8 (6 in/2 out) |
Differential Discrete I/O | 2 (1 in/1 out) |
IRIG | IRIG A/B input and output |
On-board memory | 32 MB |
PCIe Bus |
|
PCIe®: | PCIe® x1 Link |
Power: | +3.3 VDC |
Connectors |
|
Default horizontal connector: | Molex 501571-3007 |
Optional vertical connector: | Molex 501190-3027 |
Mating connector for both types: |
Molex 501189-3010 (housing) Molex 501193-3000 (terminals) |
Mechanical |
|
Weight: | approximately 13.5 g |
Dimensions: |
51 x 30 mm (Note: component height exceeds mPCIe standard, download datasheet for more details.) |
Conformal coating | Conformal coating options |
Environmental and physical specifications |
|
---|---|
Component temperature | -40 to 85°C |
Storage Temperature | -55 to 100°C |
RoHS 6/6 | Compliant |
Model | Description |
ME1100 | Single-Function MIL-STD-1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), or Monitor Channel |
ME1102 | Single-Function MIL-STD-1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), or Monitor Channel. RS-422/485 Serial (1 Port) |
ME1200 | Multi-Function MIL-STD-1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channel |
ME1202 | Multi-Function MIL-STD-1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channel. RS-422/485 Serial (1 Port) |
ME1300 | Single-Function MIL-STD-1553 Channels. Two Dual-Redundant, Multi-Function BC, RT(31), or Monitor Channels |
ME1302 | Single-Function MIL-STD-1553 Channels. Two Dual-Redundant, Multi-Function BC, RT(31), or Monitor Channels. RS-422/485 Serial (1 Port) |
ME1400 | Multi-Function MIL-STD-1553 Channel. Two Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channels |
ME1402 | Multi-Function MIL-STD-1553 Channel. Two Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channels. RS-422/485 Serial (1 Port) |
