Mini PCIe Serial
Mini PCIe Serial Card
Vendor:Connect Tech
- Details
- Specification
- Order information
- Switchable RS-232/422/485
- Bi-directional data speeds up to 20Mbps (optional) (RS-422/485)
- Dimensions: 50.95 mm x 30 mm
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)

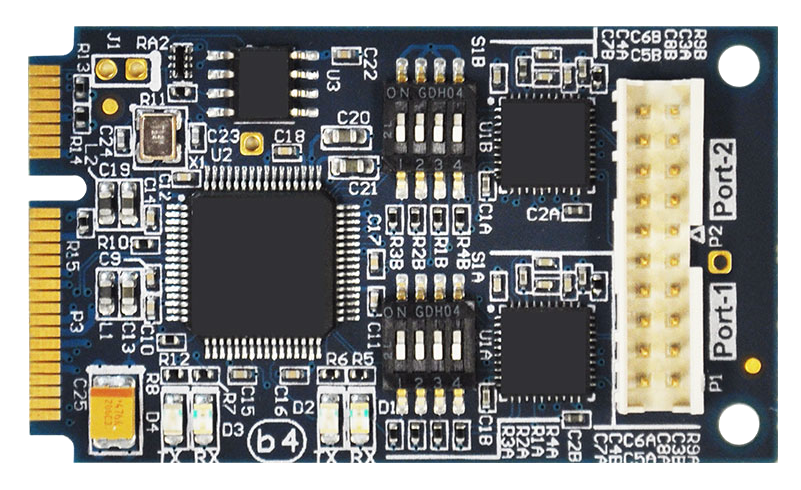

Connect Tech’s MPG00x series are rugged Mini PCIe modules that are ideal for adding extra serial port capabilities to any system with minimal increase in overall system size and power consumption.
Choose from PCI Express x1 lane or a USB-2 host bus interface.
Various modules are available offering switchable RS-232/422/485, optional isolation and full modem control signals. The wide operating temperature and latching connector and cabling solution allow these modules to be used in harsh environments.
Compatibility with a large variety of popular operating systems allows these boards to be easily integrated into a wide array of new and existing systems.
| Technical specifications | |
| Ports | 2x switchable RS-232/422/485 |
| Operating System | Linux, QNX, Windows |
| Dimensions | 50.95 mm x 30 mm, Mini PCIe "Full" |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 5 to 95% non-condensing |
| Model | Description |
| MPG001 | Mini PCI-Express Serial card, includes 2 x RS-232/422/485 serial ports. Latching Vertical connector. Connected via Mini PCIe USB. RoHS compliant. |
| MPG002 | Mini PCI-Express Serial card, includes 2 x RS-232/422/485 serial ports. Vertical header. Connected via Mini PCIe USB. RoHS compliant. |
| MPG003 | Mini PCI-Express Isolated Serial card, includes 2 x RS-232/422/485 serial ports. Latching Vertical connector. Connected via Mini PCIe PCIe UART. RoHS compliant. |
| MPG004 | Mini PCI-Express Isolated Serial card, includes 2 x RS-232/422/485 serial ports. Vertical header. Connected via Mini PCIe PCIe UART. RoHS compliant. |
| CBG121 | Dual DB9 to Minitek 20 pin cable. For use with MPG001 and MPG002. |
| CBG191 | DB9 to 10-pin Header 2mm. For use with MPG003 and MPG004. |
