TS 717

• Receives, displays and transmits ARINC 573 and 717 data
• Also available with ARINC 429 support
• USB 2.0 bus powered—no external power supply needed
• Operating Temperature: -40 to 85°C

The Easy Test Solution
The TS 717 is a portable USB‑powered test set that enables Windows computers to display ARINC 717/573 data from a Digital Flight Data Recorder (DFDR) or Digital Flight Data Acquisition Unit (DFDAU).

Benefits:

• Single solution for many applications
• Portable, versatile, and durable
• USB 2.0 bus powered—no external power supply needed
• Compatible with virtually all Windows-based computers
• Intuitive graphical software display
• Rugged case allows unit to be stored with cables connected for quick setup
• Use in the lab or in the field
• FCC and CE compliant
• ARINC 717 Test Set

Applications:

• 717 (and optional 429) analysis, test, and simulation
• Flightline and AOG support
• Data recording
• Avionics validation/testing

Portable Problem-Solver
The TS 717 Test Set for ARINC 717 is a convenient, easy-to-use tool for test and maintenance of aircraft systems that are tied to the Digital Flight Data Recorder (DFDR). The compact interface/cable hardware is conveniently stored in a rugged carrying case for easy transport and quick deployment. To use, simply connect one end to the aircraft test plug, the other to the USB port on any Windows^® computer, and the accompanying CoPilot software displays the user-specified data received from a Digital Flight Data Acquisition Unit (DFDAU) or DFDR output databus.

Operation
When connected to an ARINC 573 or 717 databus, the test set automatically senses and adjusts to the bit rate (from 64 to 8192 words per second). It then synchronizes to the sync words in the serial data stream. Status is continuously reported including the bus speed, state of the sync, and current subframe and superframe. To display a particular flight data parameter, the operator specifies the word by entering the desired word number, subframe, and superframe. The display is updated each time the specified word is received. Subframes may be specified uniquely or as odd, even, or all. Specify superframes uniquely or all.

Key Features:

• Easy to use
• Receives, displays and transmits ARINC 573 and 717 data
• Displays data in multiple radices
• Shows bus speed and position status
• Auto speed and sync detection
• Selectable word, subframe, and superframe
• Also available with ARINC 429 support

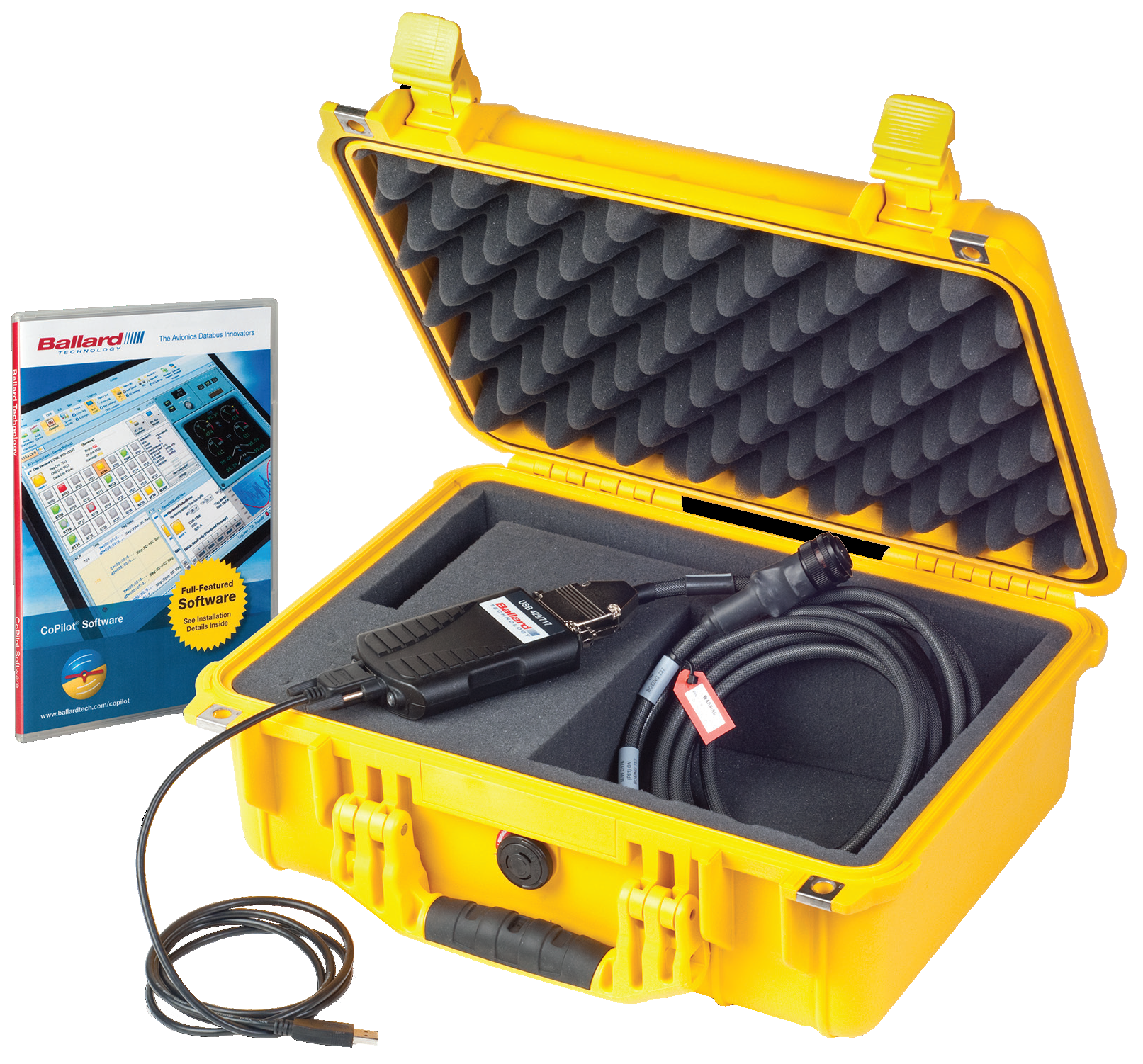

What’s Included
All TS 717 models include the following items:

• ARINC 717 databus to USB interface (also available with ARINC 429)
• ARINC 717 aircraft cable
• Locking USB cable*
• 44-pin mating connector for building custom cable
• CoPilot test & analysis software
• Rugged carrying case
• Instruction manuals

*USB cable screw-locks securely to the interface hardware. If cable becomes damaged, a stardard USB printer cable can be substituted until a replacement is obtained.
