USB 1553

USB 2.0 Avionics Interfaces for MIL-STD-1553
  • Details
  • Specification
  • Order information
  • Up to 2 Dual Redundant MIL-STD-1553 Channels
  • 8 Avionics Discrete I/O
  • USB 2.0 Bus Powered—No External Power Supply Needed
  • Operating Temperature: -40 to 85°C

The Easy Avionics Interface

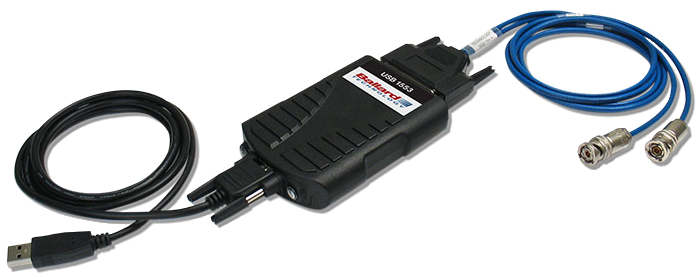

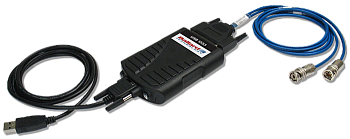

These pocket-sized USB adapters are the easy and portable way to interface your computer to MIL-STD-1553 Avionics databuses.

Key Features:

  • Up to 2 Dual Redundant MIL-STD-1553 Channels
  • 8 Avionics Discrete I/O
  • IRIG A/B PWM and AM
  • USB 2.0 Bus Powered—No External Power Supply Needed
  • 32 MB Data Memory
  • RoHS Compliant Design
  • Standard Black or Flight Test Orange Case
  • Small, Portable, and Rugged
  • Boards also available without enclosure for embedded use
Applications:
  • MIL-STD-1553 Analysis, Test, and Simulation
  • Data Loading
  • Flightline and AOG Support
  • Replacing Plug-in Cards
  • Many More Uses in the Lab or in the Field
Powerful 1553 Interfaces
The USB 1553 family of pocket-sized USB adapters enable computers to communicate with, simulate, test, and monitor MIL-STD-1553 equipment and systems. These rugged USB 2.0 peripherals feature extensive 1553 functionality and are compatible with virtually all modern PC laptop, desktop, and tablet computers.

These versatile interfaces are suitable for a wide range of applications in the lab and in the field. They support maximum data throughput on all 1553 channels and have a large 32 MB built-in memory. All power necessary for operation is provided via the single USB port. Plug and Play and Hot Swap features make them easy to install and move between computers.

Hardware
Depending upon the hardware model, each 1553 channel may be either single-function, multi-function, or bus monitor only. Single-function channels can be configured in software as either a Bus Controller (BC), a Bus Monitor (BM), or up to 32 Remote Terminals (RTs). Multi-function channels have protocol error injection capability and can simultaneously be a BC, BM, and up to 32 RTs. All models include eight avionics level input/output discretes and IRIG time synchronization/generation.

Software
Develop software applications with the included BTIDriver API, or use Astronics' optional CoPilot software. CoPilot provides powerful, easy-to-use interactive tools for databus test, analysis, and simulation.

MIL-STD-1553 functionality
  • BC, RT, and/or Monitor
  • Dual-redundant channels
  • Models available: Single-function, Multi-function, and Bus Monitor only
  • Error injection (Multi-function only)
  • Transformer and direct coupling
  • Transformer coupled cable included
  • LEDs indicate bus traffic and errors

Technical specifications
Standard Features - Model dependent 1553 capability
- USB 2.0 interface
- 8 Avionics Discrete I/O
- IRIG A/B input and output
- 2 LED indicators
- 32 MB on-board memory
Weight under 5 oz (140 g)
Dimensions 3.0 x 4.45 x 0.97 inch (76 x 113 x 25 mm)
I/O Connector HD44F D-Sub
Connectors Secure locking connectors
Power Single USB Port
MTBF 1 500 000 hours
MIL-STD-1553 Channel Details Dual redundant channels—Bus A and B

Single-function, multi-function, and bus monitor only models available - Single-function: BC, 32 RTs, or bus monitor - Multi-function: Error injection, BC, 32 RTs, and bus monitor simultaneously

Bus monitor only models available in dual redundant or non-redundant versions

Jumpers for direct coupled termination
Software Universal BTIDriver API for C/C++, C#, VB, VB.Net, and LabVIEWTM

Windows®, Linux® and Solaris OS drivers

Translation DLLs for older Ballard devices

CoPilot analysis and test software (optional)

Call for latest language and OS support
Environmental and physical specifications
Operating temperature -40 to + 85°C
Storage temperature -55 to +100°C
Model Description
UA1110 Monitor Only MIL-STD-1553 Channel. One Dual-Redundant, Monitor Only Channel
CP‑UA1110 Monitor Only MIL-STD-1553 Channel. One Dual-Redundant, Monitor Only Channel. w/ CoPilot Analyzer
UA1111 Monitor Only MIL-STD-1553 Channel. Two Dual-Redundant, Monitor Only Channels
CP‑UA1111 Monitor Only MIL-STD-1553 Channel. Two Dual-Redundant, Monitor Only Channels. w/ CoPilot Analyzer
UA1120 Single-Function 1553 Channel. One Dual-Redundant, Single-Function BC, RT(31), or Monitor Channel
CP‑UA1120 Single-Function 1553 Channel. One Dual-Redundant, Single-Function BC, RT(31), or Monitor Channel. w/ CoPilot Analyzer
UA1121 MIL-STD-1553 Channels. One Dual-Redundant, Single-Function Channel and One Dual-Redundant, Monitor Only Channel
CP‑UA1121 MIL-STD-1553 Channels. One Dual-Redundant, Single-Function Channel and One Dual-Redundant, Monitor Only Channel. w/ CoPilot Analyzer
UA1122 Single-Function 1553 Channels. Two Dual-Redundant, Single-Function BC, RT(31), or Monitor Channels
CP‑UA1122 Single-Function 1553 Channels. Two Dual-Redundant, Single-Function BC, RT(31), or Monitor Channels. w/ CoPilot Analyzer
UA1130 Multi-Function 1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channel
CP‑UA1130 Multi-Function 1553 Channel. One Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channel. w/ CoPilot Analyzer
UA1131 MIL-STD-1553 Channels. One Dual-Redundant, Multi-Function Channel and One Dual-Redundant, Monitor Only Channel
CP‑UA1131 MIL-STD-1553 Channels. One Dual-Redundant, Multi-Function Channel and One Dual-Redundant, Monitor Only Channel. w/ CoPilot Analyzer
UA1133 Multi-Function 1553 Channels. Two Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channels
CP‑UA1133 Multi-Function 1553 Channels. Two Dual-Redundant, Multi-Function BC, RT(31), and Monitor Channels. w/ CoPilot Analyzer
UA1140 Monitor Only MIL-STD-1553 Channel. Four Dual-Redundant, Monitor Only Channels
CP‑UA1140 Monitor Only MIL-STD-1553 Channel. Four Dual-Redundant, Monitor Only Channels. w/ CoPilot Analyzer
