USB Multi
USB 2.0 Avionics Interfaces for Multiple Protocols
Vendor:Ballard Technology
- Details
- Specification
- Order information
- Interface USB to Multiple Avionics Databus Protocols with a Single Unit
- 8 Avionics Discrete I/O
- USB 2.0 Bus Powered—No External Power Supply Needed
- Operating Temperature: -40 to 85°C
One Tool Does It All!
These pocket-sized USB adapters are the easy and portable way to interface your computer to multiple avionics databuses including: MIL-STD-1553, EBR 1553, ARINC 429, ARINC 708, ARINC 717, Serial, and Discrete I/O.
Key Features:
- Interface USB to Multiple Avionics Databus Protocols with a Single Unit
- 8 Avionics Discrete I/O
- IRIG A/B PWM and AM
- USB 2.0 Bus Powered—No External Power Supply Needed
- 32 MB Data Memory
- RoHS Compliant Design
- Standard Black or Flight Test Orange Case
- Small, Portable, and Rugged
- Boards also available without enclosure for embedded use
- Databus Analysis, Test, and Simulation
- Data Loading
- Flightline and AOG Support
- Replacing Plug-in Cards
- Many More Uses in the Lab or in the Field

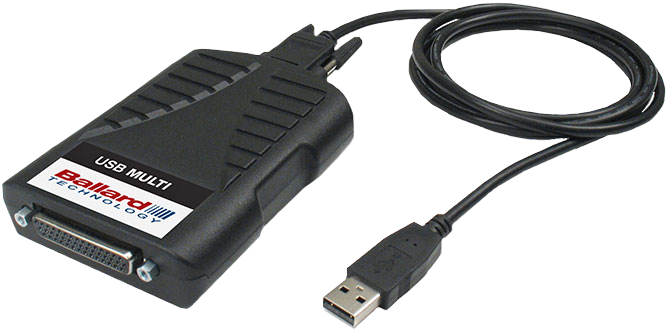

USB Interfaces to Multiple Simultaneous Avionics Protocols
The USB MULTI family of pocket-sized USB adapters enable computers to communicate with, simulate, test, and monitor avionics equipment and systems.
These rugged USB 2.0 peripherals feature a combination of different protocols in a single device. This provides greater convenience and cost savings when interfacing to multiple databus types. They are compatible with virtually all modern PC laptop, desktop, and tablet computers, and all power necessary for operation is provided via the single USB port. Plug and Play and Hot Swap features make them easy to install and move between computers.
Benefits:
- Small, lightweight, and rugged
- Portable, versatile, and durable
- Easy Plug and Play installation
- No external power supply needed
- Powerful protocol engines
- Secure locking connectors
- Free customer support for product life
- 3-year limited warranty standard
- FCC, CE and RoHS compliant
| Technical specifications | |
| Standard Features |
- Model dependent protocol capability - USB 2.0 interface - 8 Avionics Discrete I/O - Up to 4 Differential Discrete I/O - IRIG A/B input and output - 2 LED indicators - 32 MB on-board memory |
| Weight | Under 5 oz (140 g) |
| Dimensions | 3.0 x 4.45 x 0.97 inch (76 x 113 x 25 mm) |
| I/O Connector | HD44F D-Sub |
| Connectors | Secure locking connectors |
| Power | Single USB Port |
| MTBF | 1 400 000 hours |
| Avionics Interfaces | |
| MIL-STD-1553 |
1 dual-redundant channel BC/RT/MON (single or multi-Function) |
| ARINC 429/575 | 6 channels (4R/2T) |
| ARINC 708/453 | 2 channels (1R/1T) |
| ARINC 717/573 | 4 channels (2R/2T) |
| Differential Discretes | Up to 4 differential discrete I/O |
| EBR 1553 (SAE AS5652) |
Up to 4 ports (1 channel) BC/RT/MON (multi-function) |
| RS-422/485 | Up to 4 ports |
| Avionics Discrete I/O | All models include 8 avionics discrete I/O |
| Software |
Universal BTIDriver API for C/C++, C#, VB, VB.Net, and LabVIEWTM Windows®, Linux® and Solaris OS drivers Translation DLLs for older Ballard devices CoPilot analysis and test software (optional) Call for latest language and OS support |
| Environmental and physical specifications | |
| Operating temperature | -40 to + 85°C |
| Storage temperature | -55 to +100°C |
A - MIL-STD-1553 (B: Bus Monitor, S: Single-function, M: Multi-function)
B - ARINC 429 (4R2T)
C - ARINC 708 (1R1T)
D - ARINC 717 (2R2T)
E - EBR 1553 (4 ports)
F = Serial (4 ports)
Options:
To order options, add the appropriate suffix to the end of the part number.
Example: CP-UA1532/FTO
/FTO - Flight Test Orange case in place of the standard black case
/NE - No Enclosure, Printed Circuit Board Assembly only, for embedded use
/FXY - Conformal coating (Parylene)
Cables & Accessories
The following accessories are included with all models except /NE versions:
- USB-A cable with screw-locks (5 ft)
- Mating HD44P D-Sub I/O connector
- Software CD
A wide variety of cables and accessories are also available to complement Astronics' line of avionics databus interface products.
B - ARINC 429 (4R2T)
C - ARINC 708 (1R1T)
D - ARINC 717 (2R2T)
E - EBR 1553 (4 ports)
F = Serial (4 ports)
| Model | Protocols | ||||||
| Hardware & CoPilot | Hardware Only | A | B | C | D | E | F |
| CP-UA1503 | UA1503 | - | Х | - | - | - | Х |
| CP-UA1505 | UA1505 | - | - | - | - | Х | - |
| CP-UA1511 | UA1511 | В | Х | - | - | - | - |
| CP-UA1512 | UA1512 | В | Х | - | Х | - | - |
| CP-UA1513 | UA1513 | В | Х | - | - | - | Х |
| CP-UA1514 | UA1514 | В | - | - | - | - | Х |
| CP-UA1515 | UA1515 | В | - | - | - | Х | - |
| CP-UA1521 | UA1521 | S | Х | - | - | - | - |
| CP-UA1522 | UA1522 | S | Х | - | X | - | - |
| CP-UA1523 | UA1523 | S | Х | - | - | - | Х |
| CP-UA1524 | UA1524 | S | - | - | - | - | Х |
| CP-UA1525 | UA1525 | S | - | - | - | X | - |
| CP-UA1531 | UA1531 | M | Х | - | - | - | Х |
| CP-UA1532 | UA1532 | M | Х | - | X | - | - |
| CP-UA1533 | UA1533 | M | Х | - | - | - | Х |
| CP-UA1534 | UA1534 | M | - | - | - | - | Х |
| CP-UA1535 | UA1535 | M | - | - | - | X | - |
| CP-UA1571 | UA1571 | - | Х | X | - | - | - |
| CP-UA1572 | UA1572 | - | Х | X | X | - | - |
| CP-UA1573 | UA1573 | - | Х | X | - | - | Х |
| CP-UA1574 | UA1574 | - | - | X | - | - | Х |
To order options, add the appropriate suffix to the end of the part number.
Example: CP-UA1532/FTO
/FTO - Flight Test Orange case in place of the standard black case
/NE - No Enclosure, Printed Circuit Board Assembly only, for embedded use
/FXY - Conformal coating (Parylene)
Cables & Accessories
The following accessories are included with all models except /NE versions:
- USB-A cable with screw-locks (5 ft)
- Mating HD44P D-Sub I/O connector
- Software CD
A wide variety of cables and accessories are also available to complement Astronics' line of avionics databus interface products.
