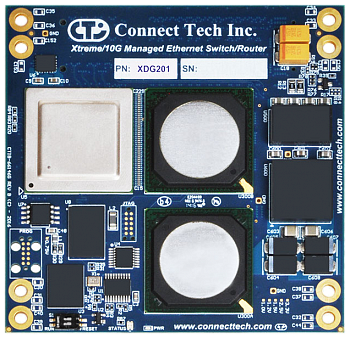

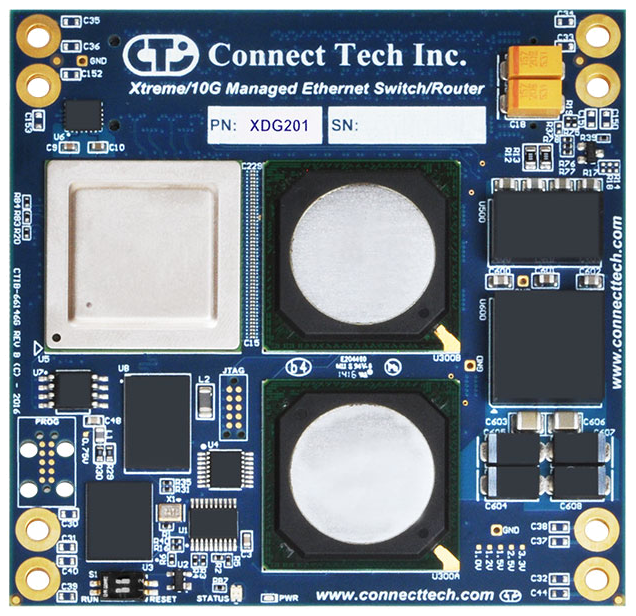

Xtreme-10G

Managed Ethernet Switch/Router
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • 36 switchable ports (4x 10GbE; 8x 1GbE [SGMI]; 24x 1GbE)
  • High-density board-to-board connector
  • 85mm x 85mm module
  • Operating Temperature: -40°C to +85°C (-40°F to +185°F)

Connect Tech’s Xtreme/10G Managed Ethernet Switch/Router provides high density, high port count Layer 2 switching and Layer 3 routing with 10G uplinks. A total of 36 switchable ports, with 4×10G, 8×1GbE (SGMII), and 24×1GbE (Copper 10/100/1000Mbps) ports in an extremely small form factor 85mm x 85mm.

The device targets managed Layer 2 and Layer 3 equipment in SMB, SME, and industrial applications where high port count 1GbE switching with 10G aggregation/uplinks are required.

Technical specifications
Ethernet Switch Engine Vitesse VSC7448 Carrier Grade Ethernet Switch Chipset
Ports 36 Total Switching Ports
• 4x 10G (SFI) Ports
• 8x 1G (SGMII) Ports
• 24x 1G (Copper 10/100/1000Mbps) Ports
Memories • 4Gb DDR3 SDRAM
• 128Mb Serial NOR Flash
I/O Connectors High-Density 440-pin Board-to-Board Connector
Layer 2 & Layer 3 Forwarding • IEEE802.1Q switch with 4K VLANs and 32K MAC table entries
• Push/pop up to 3VLAN tags on ingress and egress
• RSTP and MSTP support
• Fully non-blocking wire-speed switching performance for all frame sizes
• IPv4/IPv6 unicast and multicast Layer 2 switching with up to 32K groups and 1K port masks
• IPv4/IPv6 unicast and multicast Layer 3 forwarding (routing) with reverse path forwarding (RPF) support
• IGMPv2, IGMPv3, MLDv1, and MLDv2 support
• Link aggregation (IEEE 802.3ad)
• Independent and shared VLAN learning (IVL, SVL)
• Jumbo frame support
Quality of Service • Four megabytes of integrated shared packet memory
• Eight QoS classes with a pool of up to 32K queues
• TCAM-based classification with pat tern matching against Layer 2 through Layer 4 information
• Dual- rate policers selected by VCAP IS2, eight single- rate priority policers per port, and four single-rate port policers for each port
• Flexible 4K ingress QoS mappings and 8K egress QoS mappings for VLAN tags and DSCP values
• Up to 4K egress VLAN tag operations
• Audio/ video bridging (AVB) with support for time-synchronized, low- latency and video streaming services
• Priority-based f low control (PFC) (IEEE 802.1Qbb)
Security • Vitesse Content Aware Processor (VCAP™) packet filtering engine using ACLs for ingress and egress packet inspection
• Storm controllers for flooded broadcast, flooded multicast, and flooded unicast traffic
• Per-port, per-address registration for copying/redirecting/discarding 32 VCAP single-rate policers
Maximum Bandwidth 80Gbps
Layer 2 Switching Parameters • Packet Buffer: 32Mb
• MAC Table Size: 32k
• Layer 2 Multicast Port Masks: 1k
• Super VCAP blocks: 8
• VCAP CLM entries: 4k
• VCAP LPM entries: 4k/1k (IPv4/IPv6)
• VCAP IS2 entries: 4k/1k (IPv4/IPv6)
Layer 3 Switching Parameters • Router Legs: 128
• IP unicast routes/hosts: 4k/1k (IPv4/IPv6)
• Next -hop/ ARP table entries: 2k
• IP multicast groups: 2k/512
• Multicast router leg masks: 1k
• ECMPs: 16
Management Access Web Interface
CLI via RS-232
Software API
SMNP
Input Voltage +4V to 14V Input Range (External Connector)
Power Consumption 24W Max / 14W Idle
Dimensions 85mm x 85mm

Environmental and physical specifications

Operating Temperature -40°C to +85°C (chipset rated to +125°C thermals)
Model Description
XDG201 36 port Managed Switch (4x 10GbE; 8x 1GbE [SGMI]; 24x 1GbE) high-density board-to-board connector, +4V to 14V input range,85mm x 85mm module -40°C to +85°C. RoHS Compliant
XDG201‑01 Xtreme/10G Managed Ethernet Switch/Router with SMBStaX Firmware – includes XDG201 Conduction Cooled Heatplate
XDG202‑01 Xtreme/10G Managed Ethernet Switch/Router with IStax Firmware – includes XDG201 Conduction Cooled Heatplate
Cables and accessories
XBG301 XDG201 Development Carrier
XHG201 XDG201 Conduction Cooled Heatplate
