Carrier Board CCG022

COM Express Type 10 PC Connector Carrier
Connect Tech Vendor:
Connect Tech
  • Details
  • Specification
  • Order information
  • Support for the latest generation of low-powered CPUs
  • Combination of PC style and locking pin header connectors
  • Dimensions: 84mm x 73.415mm
  • Operating temperature: -40°C to +85°C (-40°F to +185°F)

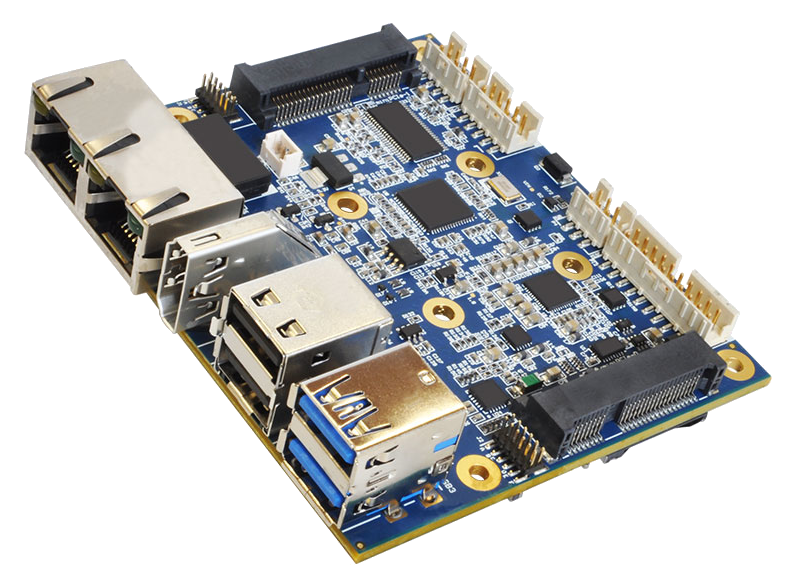

Connect Tech’s COM Express Type 10 PC Connector Carrier is an extremely small carrier board featuring a combination of PC style connectors and locking pin header connectors. The carrier is a robust offering, with 2x USB 3.0 Type A ports, 6x USB 2.0 ports, 1x HDMI, 1x LVDS interface, and 2x GbE.

The COM Express Type 10 Carrier Board provides support for the latest generation of low-powered CPUs. It is ideal for space constrained applications and supports extended temperature ranges of −40°C to +85°C.

Technical specifications
Compatibility COM Express Type 10 (PICMG COM Express COM.0 R2.1)
Mini PCIe Expansion 2 x half size cards OR 1 x full length card
Both sockets have PCIe and USB signaling, one socket can be configured as mSATA
Storage 1x mSATA
USB 2x USB 3.0, 6x USB 2.0
Network 2x Gigabit Ethernet (10/100/1000) Ports (1 from COM Express, 1 from on-board Intel 82574 PHY/Controller)
Display 1x HDMI, 1x LVDS
Audio HD Audio (Cirrus Logic CS4207 codec), 1x stereo input, 1x stereo output
Serial 2x RS-232/422/485 hardware selectable ports
Misc. External Interfaces SMBus
Battery Low Indication
System Status (S3 and Reset Outputs)
Power Requirements Single wide input range +8V to +14V (may be module dependent)
Connectors USB Type A, RJ45, HDMI connectors, additional signals via shrouded locking ruggedized 2mm pitch headers.
Can be mated to CTI custom cable set to panel mount or PC MIL type connectors.
Dimensions 84mm x 73.415mm (3.307” x 2.890”)
Weight 68g

Environmental and physical specifications

Operating Temperature -40°C to +85°C (-40°F to +185°F)
Model Description
CCG022 COM Express Type 10 PC Connector Carrier
CKG044 Cable Kit for CCG022
CBG111 Dual DB-9 Panel Mount to 10-Pin Minitek Cable
CBG112 6-pin Minitek to Flying Leads (Power)
CBG116 20-pin Minitek to Flying Leads
CBG118 Dual Audio to 8-Pin Minitek Cable
