Carrier Board CCG070
COM Express Type 7 Carrier Board
Vendor:Connect Tech
- Details
- Specification
- Order information
- COM Express Type 7 Module Support
- Dual 10-Gigabit Ethernet
- Dimensions: 125mm x 95mm
- Operating temperature: -40°C to +85°C (-40°F to +185°F)

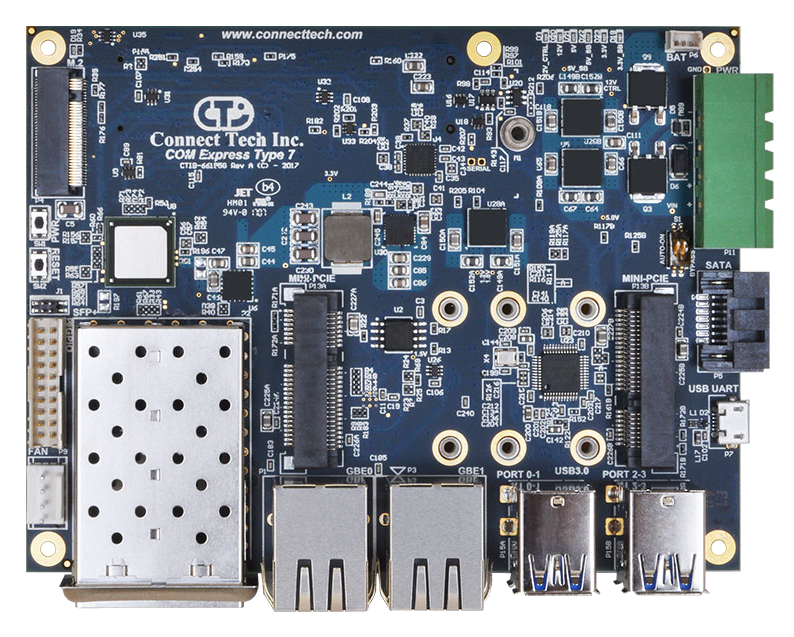

Connect Tech’s COM Express Type 7 Carrier Board is based on the PICMG COM Express COM.0 R3.0 specification. It includes dual 10-Gigabit Ethernet from SFP+ modules, 2x GbE ports, M.2 NVMe Storage, 4x USB 3.0, full and half size Mini PCIe expansion slots, 8×3.3V buffered GPIO, and a Console connection via Micro USB.
The carrier board is ideal for high-compute, enterprise level applications that have a need for a small form factor rugged solution providing access to high-end Xeon D class processors.
| Technical specifications | |
| Compatibility | COM Express Type 7 Module (PICMG COM Express COM.0 R3.0), Support for current and next-gen Xeon-D (Broadwell DE) processor modules |
| Storage |
1 x M.2 2280 M-Key Slot (Dual function PCIe + SATA) – NVMe (PCIe x4 Gen3) Capable – SATA III (6Gbps) Capable 1 x Standard SATA Port (7-Pin) |
| USB | 4x USB 3.0 |
| Network | 2 x 10GbE (via SFP+ cages), 2x Gigabit Ethernet (10/100/1000) RJ-45s |
| Display |
None (Headless System) Initial Setup/Debug can be achieved via MiniPCIe graphics module |
| Expansion | 1x mini PCIe slot full size (USB + PCIe), 1x mini PCIe slot half size (USB + PCIe) |
| Serial | 1x CPU Console UART (via Micro USB), 1x General Purpose UART (via 2mm header) |
| GPIO | 8x 3.3V buffered GPIO |
| Misc | Power Button, Reset Button, Sys Ctr |
| Power Requirements | +12V Input |
| Dimensions | 125mm x 95mm |
| Weight | 124g (0.27lbs) |
|
Environmental and physical specifications |
|
|---|---|
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Model | Description |
| CCG070 | COM Express Type 7 Carrier Board |
| CKG043 | Cable kit |
| CBG116 | 20-pin Minitek to Flying Leads |
| CBG136 | RTC Battery Cable (to 2032) |
| CBG247 | Micro USB to USB Type-A Male (For Console) |
