Floyd SC

Compact Expandable Carrier Board for Nvidia Jetson Nano / NX / TX2 NX GPU Modules
  • Details
  • Specification
  • Order information
  • Supports all I/O features of Jetson Nano / Xavier NX / TX2 NX modules
  • Compact size: 4.3x3.3" / 110x85mm
  • Expansion connector for use with standard and custom I/O expansion modules
  • Operating Temperature: -25°C to +80°C

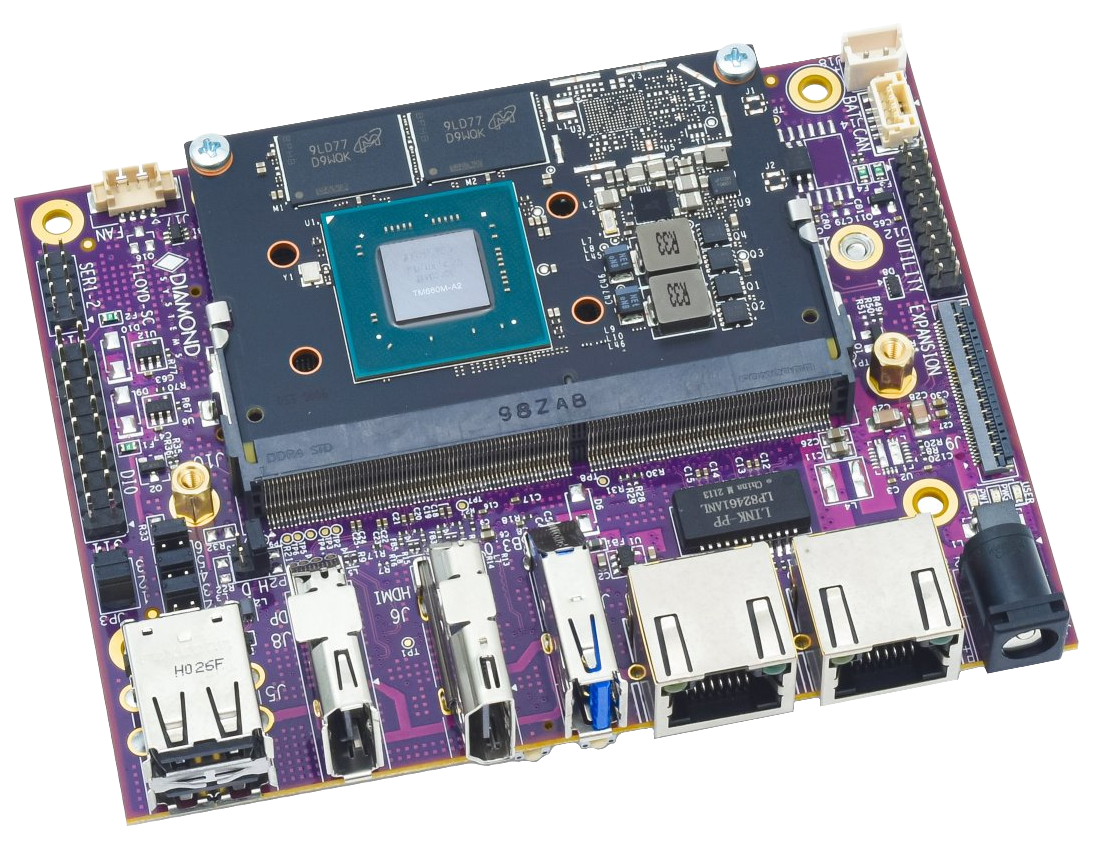

The Floyd SC compact carrier board converts the Nvidia Jetson Nano / TX2 NX / Xavier NX modules into complete embedded systems by providing interface circuitry, I/O connectors for all module features, camera interfaces, power supply, and additional I/O in a solution measuring only 4.3×3.3" / 110×85mm. A novel expansion I/O connector enables connection of standard and custom daughterboards with additional I/O functionality to simplify the development of customized Jetson solutions.

Floyd SC features up to 3 CSI camera inputs, 2 Gigabit Ethernet ports, 2 USB 2.0 ports, 1 USB 3.0 port, 1 RS-232 and 1 RS-232/485 serial port, 16 GPIO, and HDMI + DP display support. With the NX module installed a second Ethernet port and a CAN port are available. An M.2 M-Key NVME socket supports both 2242 and 2280 size I/O and flash storage modules. Wide voltage input 7-24V provides adaptability to a range of power supplies.

Floyd SC is available in two configurations: a low-cost model with reduced features for Nano and a full-featured model with complete features supporting NX and TX2 NX.

Floyd SC is supported by a full Linux BSP based on NvidiaNvidia’s Jetpack. This software is available as a free download from our support area.

Floyd SC is available as both a carrier board component and as an assembled subsystem including the selected Jetson module with Linux OS installed. Both heat sink and fan sink cooling options are available.

Product Configurations

Floyd SC is available in a cost-optimized configuration for the Nano module and a full-featured configuration for the TX2-NX and NX modules. The full-featured model can also work with the Nano, however some features are unavailable due to not being present on the module.

I/O Expansion Connector

A flex cable connector on model BB02 enables additional I/O expansion with off the shelf or custom-developed daughterboards. The connector offers USB 3.0 and PCIe connectivity to the Jetson module, as well as power. Because an I/O daughterboard is much quicker and easier to design than a full-custom carrier board, Floyd SC makes it easy to design customized Jetson solutions with additional I/O. For example, additional USB 3.0 ports, additional Ethernet ports, an Ethernet switch, or even a PoE PD circuit can all easily be implemented on a daughterboard and directly connected to the Jetson module using a native high-speed I/O interface. Daughterboards typically are the same size as the main board and mount directly underneath the main board for convenient packaging.

Subassembly Options

Floyd SC is available as a complete computing board-level subsystem with Jetson module, heat sink, and Linux OS installed. These subsystems save time by eliminating the assembly, programming, and testing effort.

Complete Systems

Floyd SC is available as a JetBox system with Jetson module and Linux OS installed, ready to load your application and deploy. All main board I/O, including the I/O on the pin headers, is brought out to the front panel using familiar commercial connectors.

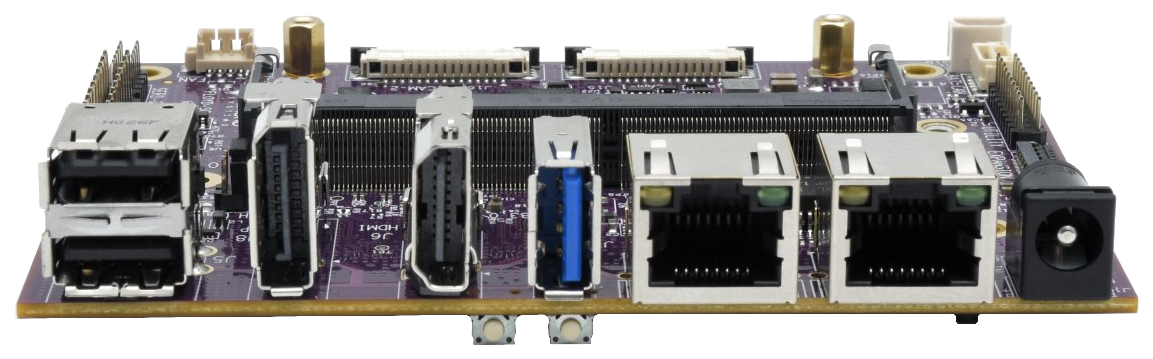

Most Floyd I/O other than the camera inputs is available using commercial connectors located along the front edge of the board. This arrangement simplifies the design of enclosures. The second serial port, GPIO signals, and CAN port (available with NX module only) do require cables.

All front-facing I/O cables for Floyd SC are industry standard, including Ethernet, HDMI, DisplayPort, and USB. Camera interface cables are generally included with the camera. Other I/O connections require custom cables. A cable kit is available with these custom cables:

CK-FLDSC-01 includes the following cables:

  • 6980524 External battery cable, discrete wires
  • 6981075 Dual serial port DB9M
  • 6981164 Cable, IDC20F to IDC20F, 2mm pitch, 12″ length
  • 6981182 CANbus 2.0 cable, JST 1×4 to DB9M
  • C-20-18 20-conductor ribbon cable, 2×10 .1″ IDC sockets

For convenient access to the GPIO and utility signals during development, a screw terminal board is available from third party suppliers.

Heat Sink

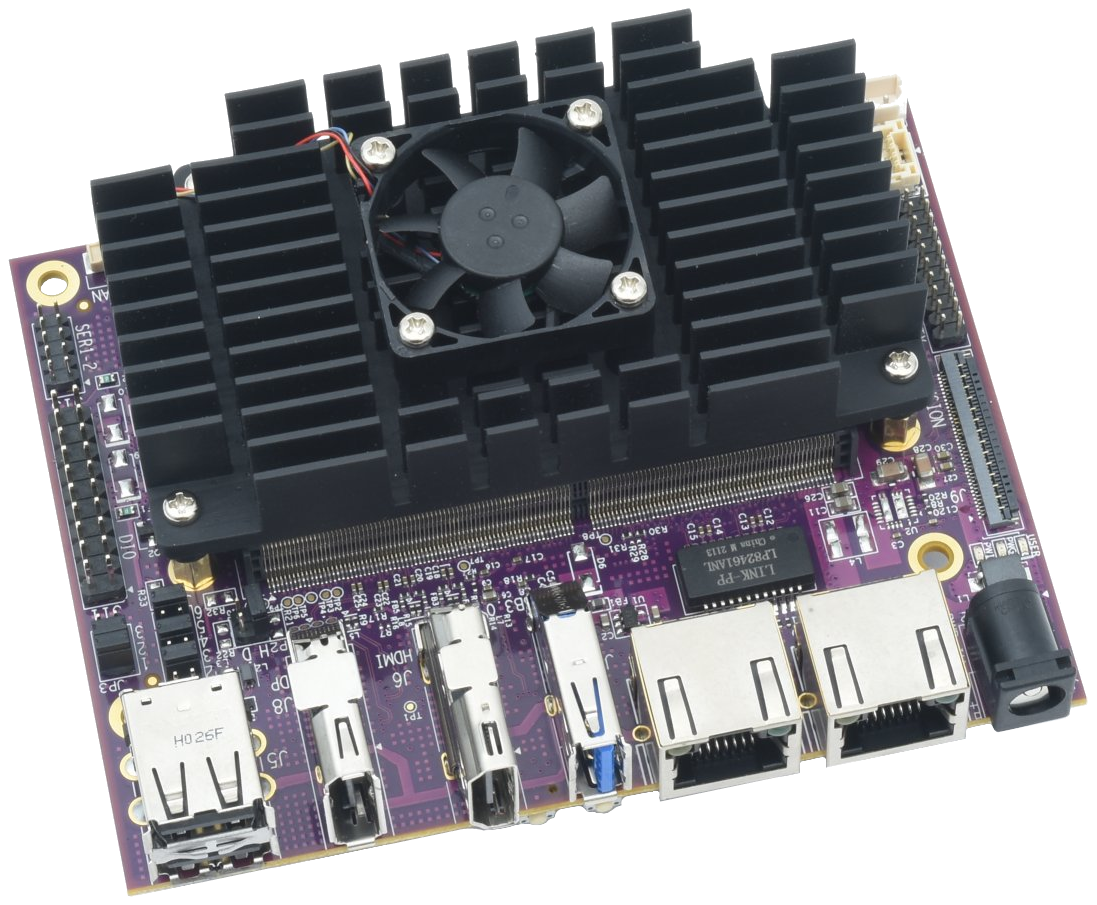

The Jetson modules can consume significant power under heavy load and require cooling. Diamond Systems offers a passive heat sink and active fan sink specifically designed for use on Floyd SC. The fan on the fan sink is controlled automatically by the Linux OS and also by a DSC-supplied utility program.

Power Input

Power is provided via a barrel jack with 5.5mm OD / 2.5mm ID dimensions. The input voltage range is 10.8-25.2VDC (supports 7V +/-5% and 24V +/-5% input voltages). A minimum 30W power supply is recommended to support peak power of the carrier, Jetson module, and attached I/O devices and provide a suitable safety margin. Diamond AC adapter PS-12V-03 provides 12V / 5A DC power with the required mating plug and an IEC 3 prong input power plug. A US AC power cord is included.

Technical specifications
Gigabit Ethernet Single/dual Gigabit Ethernet ports
HDMI/DisplayPort HDMI + DisplayPort
USB 1x USB 3.1, 2x USB 2.0
GPIO 16 GPIO with 3.3V / 5V compatibility
Serial 1 RS-232 and 1 RS-232/485
CSI 3x CSI dual lane camera inputs
CAN 1 CAN port (with NX module)
Expansion Expansion connector for use with standard and custom I/O expansion modules
Storage M.2 2242/2280 M-Key NVMe flash socket
Cooling Heat sink / fan sink cooling (orderable options)
Power input 7-24VDC
Size 4.3x3.3" / 110x85mm

Environmental and physical specifications

Operating Temperature -25°C to +80°C (full temperature range of installed Jetson modules)
Model Description
FLDSC-BB01 Floyd SC low-cost carrier for Jetson Nano
FLDSC-BB02 Floyd SC full featured carrier for Jetson NX / TX2 NX
FLDSC‑ASY‑01‑NAO Floyd SC assembly with Jetson Nano, Fan sink, and OS installed
FLDSC-ASY-02-TNX Floyd SC assembly with Jetson TX2 NX, Fan sink, and OS installed
FLDSC‑ASY‑02‑XNX Floyd SC assembly with Jetson Xavier NX, Fan sink, and OS installed
